Deck Spindle & Mower Blade Kit For Ariens Ferris Gravely MK1002096

MK1002096 Deck Spindle & Mower Blade Kit Product Info:

• Spindle Specs: Height-5 1/6'', ID- 5/8'' Shaft, Keyway-1/4'', OD-1'' Shaft, Blade Specs: Length 17 15/16" Center Hole 5/8" Width 2 1/2" Thickness 0.197"

Included in This Kit:

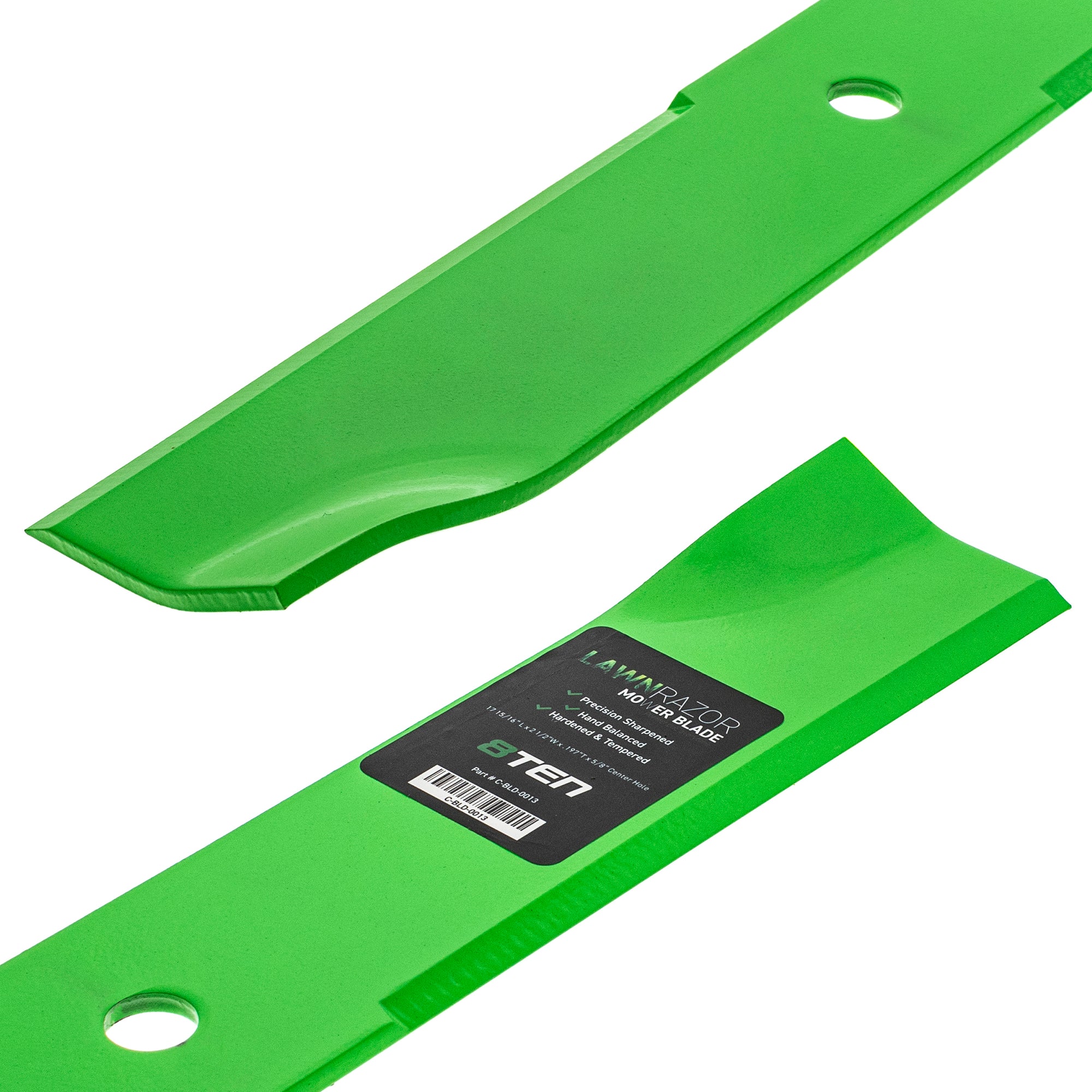

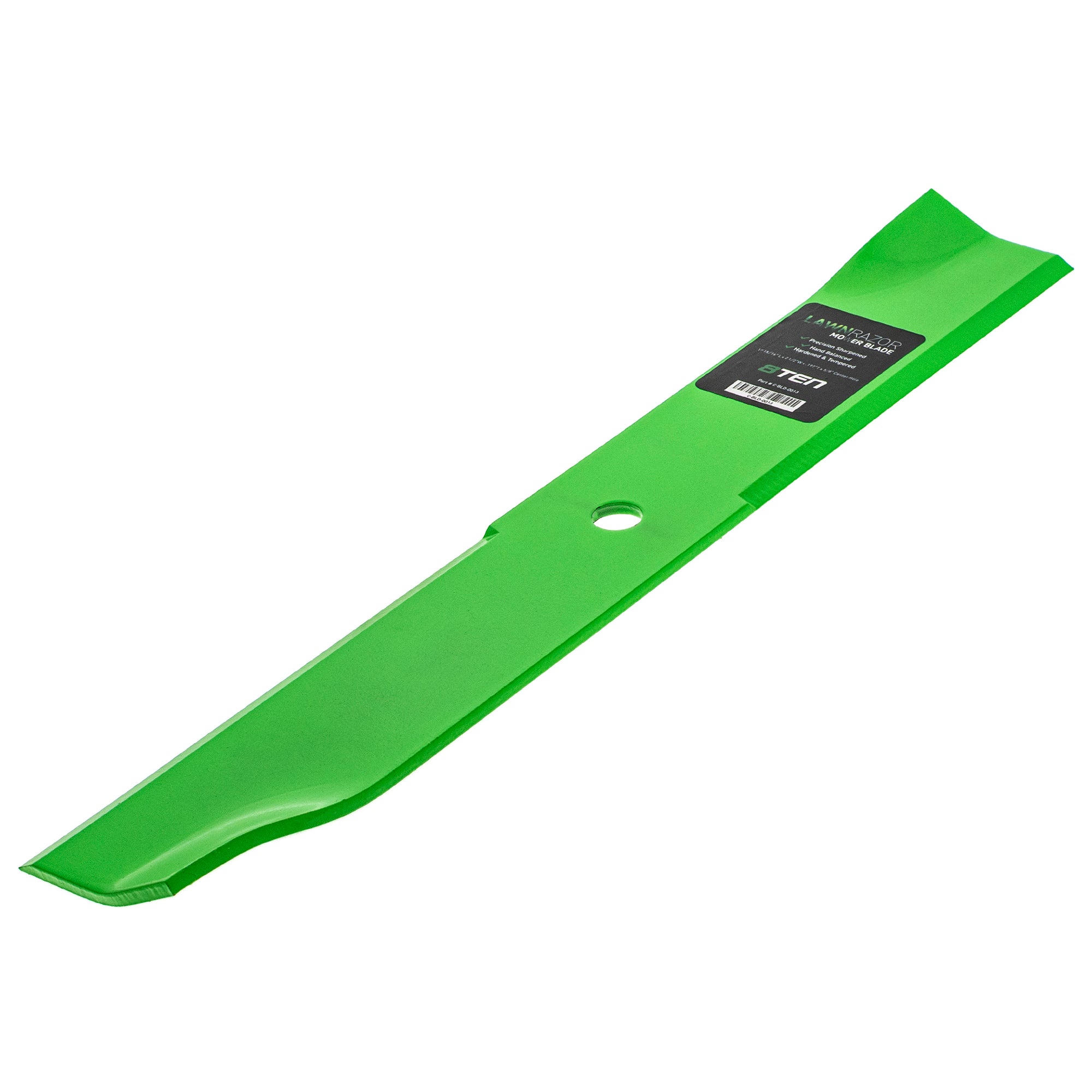

(QTY 2) 8TEN 810-CBL2235D LawnRAZOR Mower Blade

Substitute For OEM Part Numbers(s): A48185, 91-335, 690-120-0057, 6291, 355-079, 1521227S, 1521227, 112111-02, 103-6582-S, 04917900, 04916400, 038-3000-00, 03399704, 03253800, 00450300, 00273100

(QTY 2) 8TEN 810-CSP2293N Deck Spindle

Substitute For OEM Part Numbers(s): 7059759, 36006N, 302030, 2870563, 1636104, 1-302030

MK1002096 Fits the Following OEM Models:

For Ariens

Apex 52 SD, Max-Zoom 2552, Max-Zoom 2560, Max-Zoom 52, Max-Zoom 60, Max-Zoom HD 52, Max-Zoom HD 60, Pro-Master 252Z, Zoom 1540, Zoom 1640, Zoom 1740, Zoom 1744, Zoom 1840, Zoom 1844, Zoom 1944, Zoom 2044, Zoom 2048, Zoom 2148, Zoom 2252, Zoom 2348, Zoom 2352, Zoom 2552, Zoom HD 2452, Zoom HD 2660, Zoom XL 2552, Zoom XL 2560

For Ferris

1000Z 52 inch, Criterion 320, HydroWalk 32 inch, HydroWalk 36 inch, HydroWalk DD 32 inch, HydroWalk DD 36 inch, HydroWalk DD 52 inch, IS1000Z 48 inch, IS1000Z 52 inch, IS2000Z 52 inch, ISZ 52 inch, ProCut 16 H1618, ProCut 18 H1818, ProCut 18 H1820, ProCut 19 H1920, ProCut 20 H2020, ProCut 20 H2220, ProCut 20 H2520, UltraBelt 36 inch, UltraBelt 48 inch, UltraBelt 52 inch, UltraBelt GD 36 inch, UltraBelt GD 52 inch

For Gravely

Pro 1332G, Pro 1336G, Pro 1536G, Pro 1536H, Pro 1544H, Pro 1548H, Pro 1748H, Pro 1752H, Pro 1952H, Pro-Stance 52
