Mower Deck Rebuild Kit For Gravely Ariens MK1005301

MK1005301 Mower Deck Rebuild Kit Product Info:

• Inner Spindle Specs: Height 6 7/8"; Outer Spindle Specs: Height 6 9/16"; Blade Specs: Length 16 1/8", Width 2 1/2", Thickness 0.157", Center Hole 5/8"

Included in This Kit:

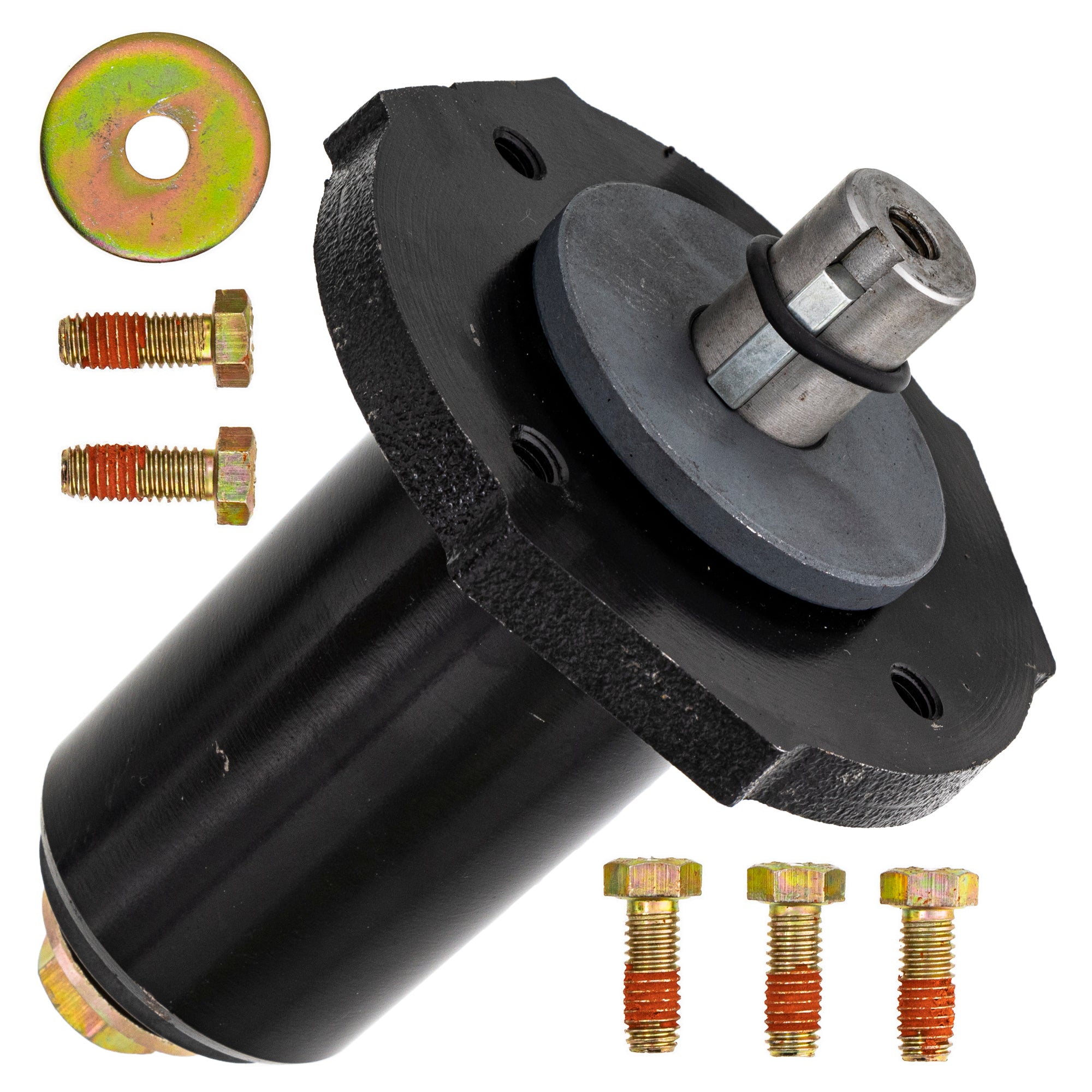

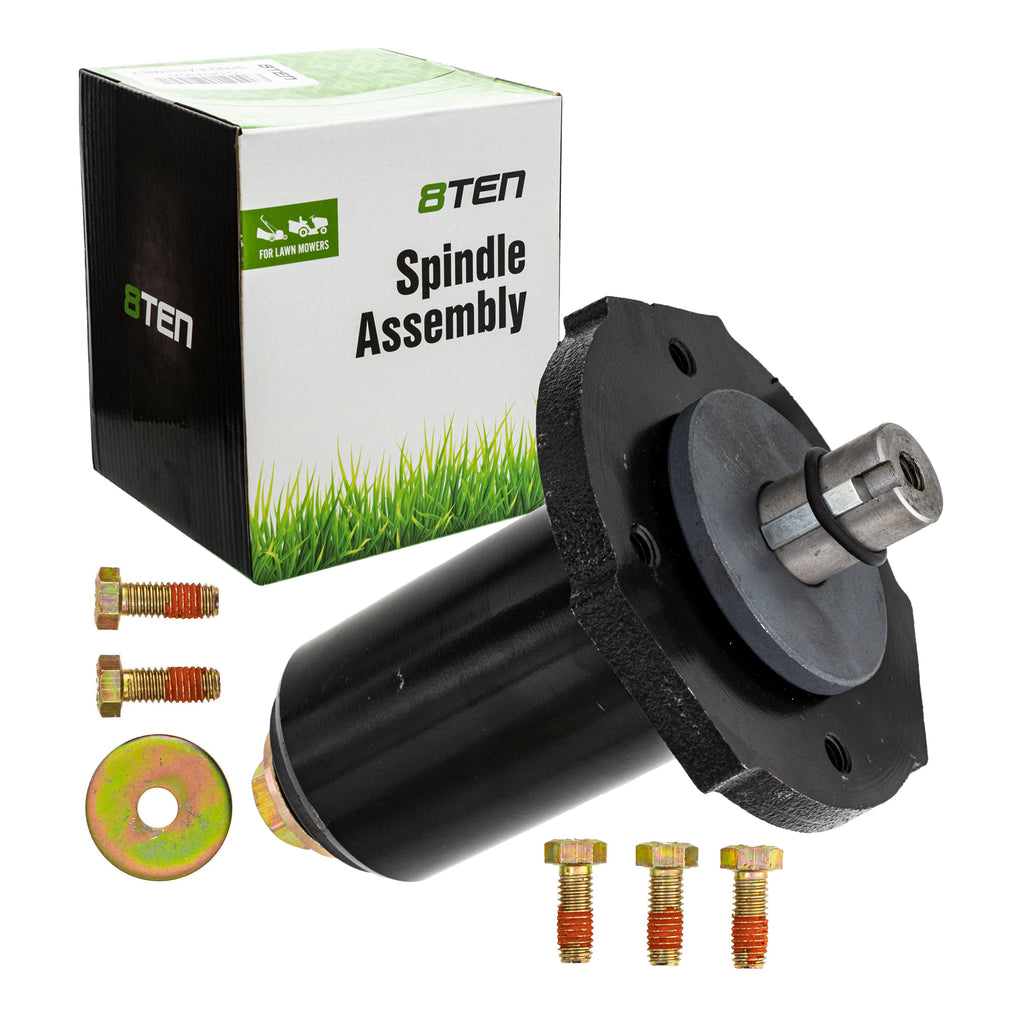

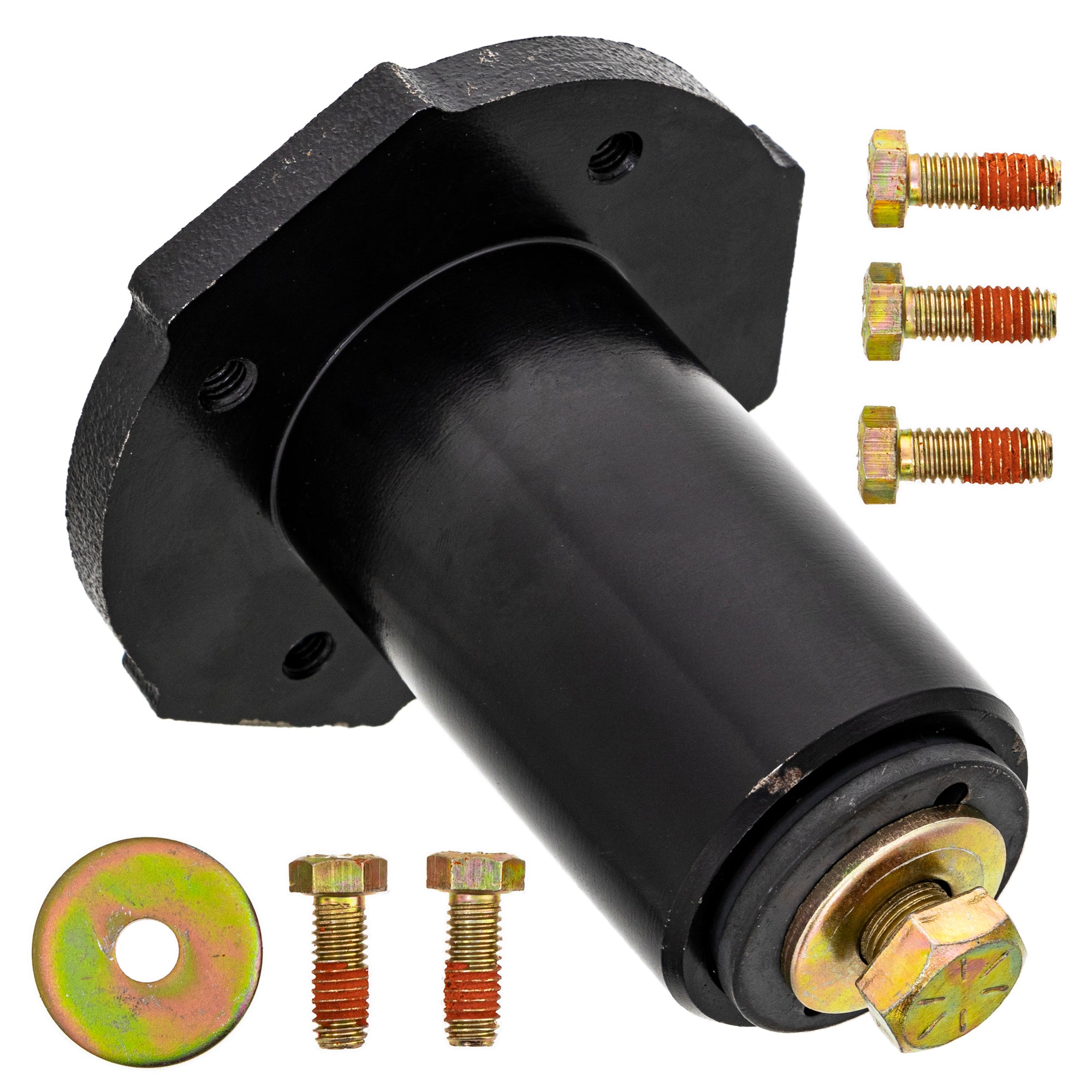

(QTY 1) 8TEN 810-CSP2248N Deck Spindle

Substitute For OEM Part Numbers(s): 69221300, 69219700, 69207500, 59225700, 59215400, 59202600, 59109800, 58810800, 09242600, 09238600

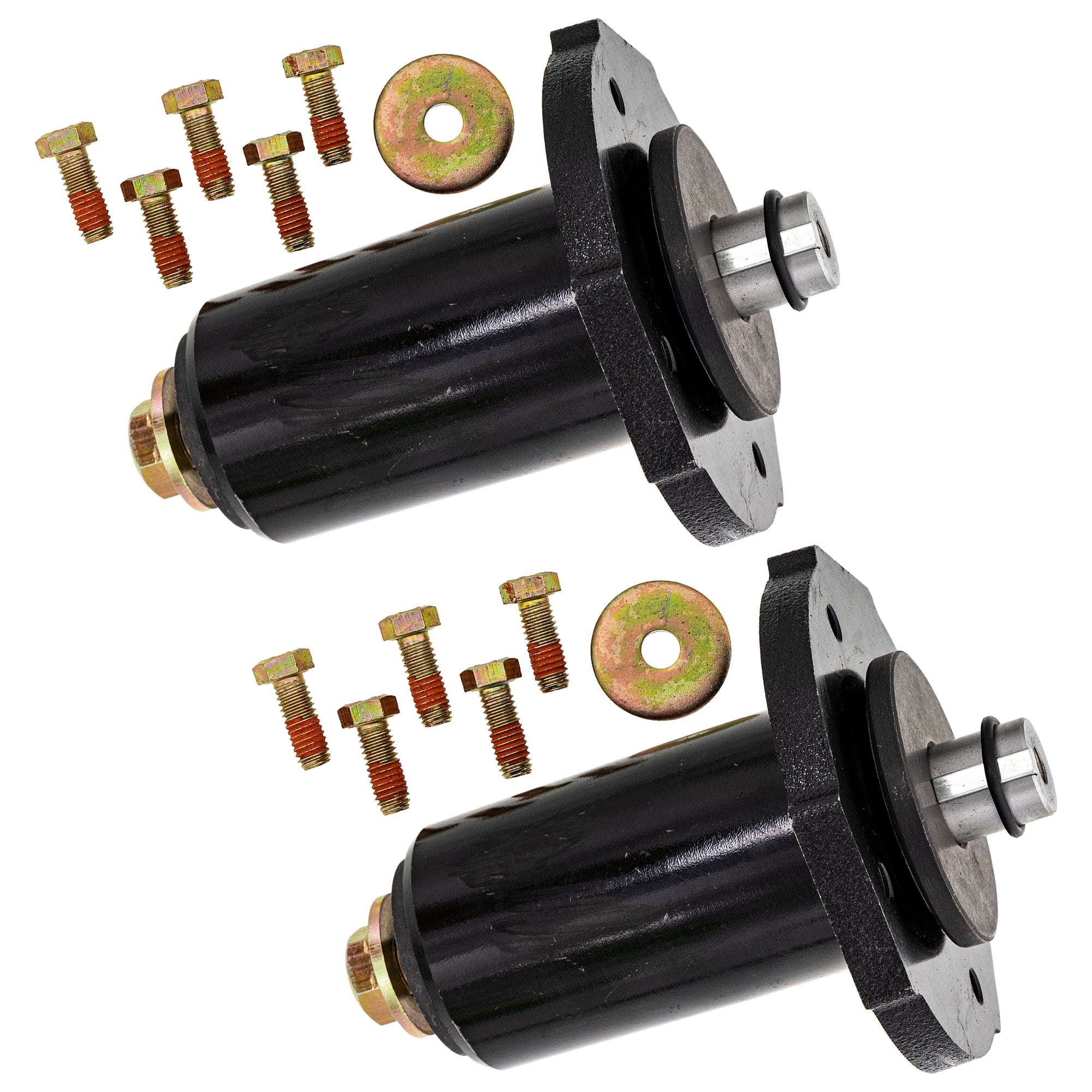

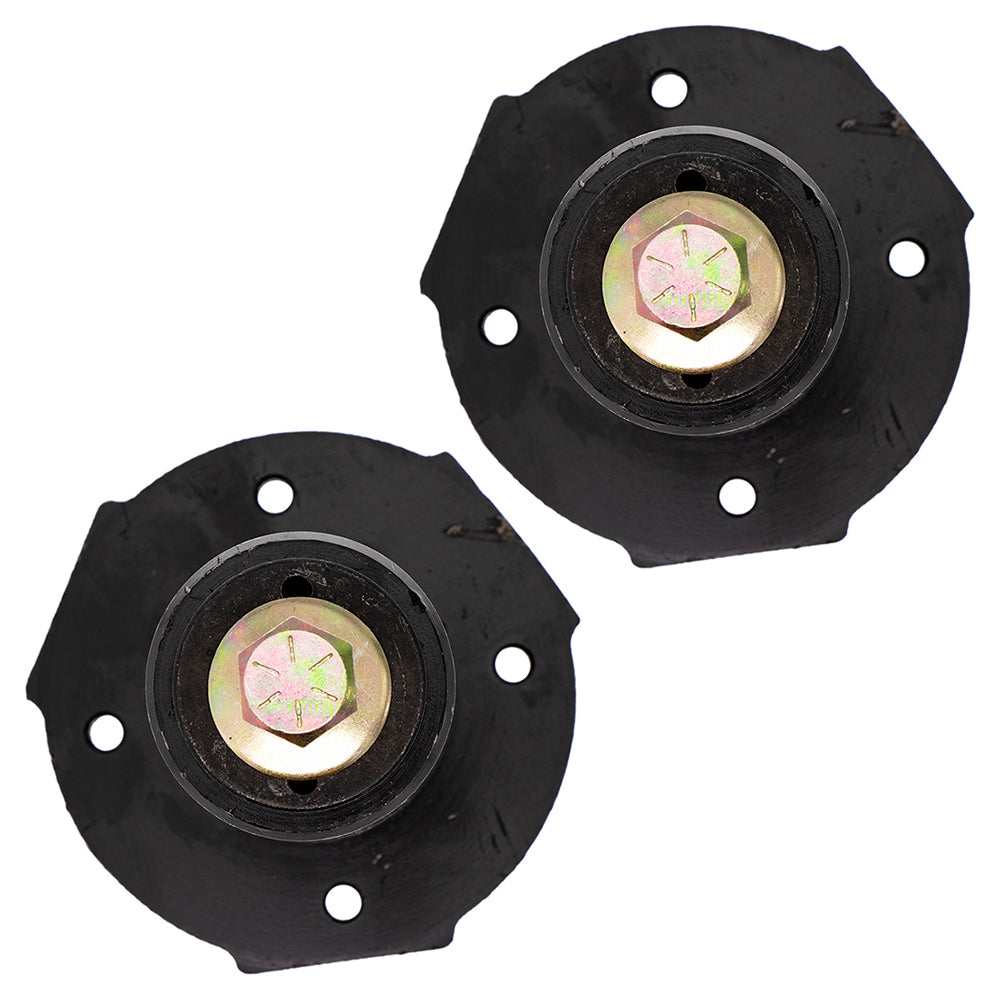

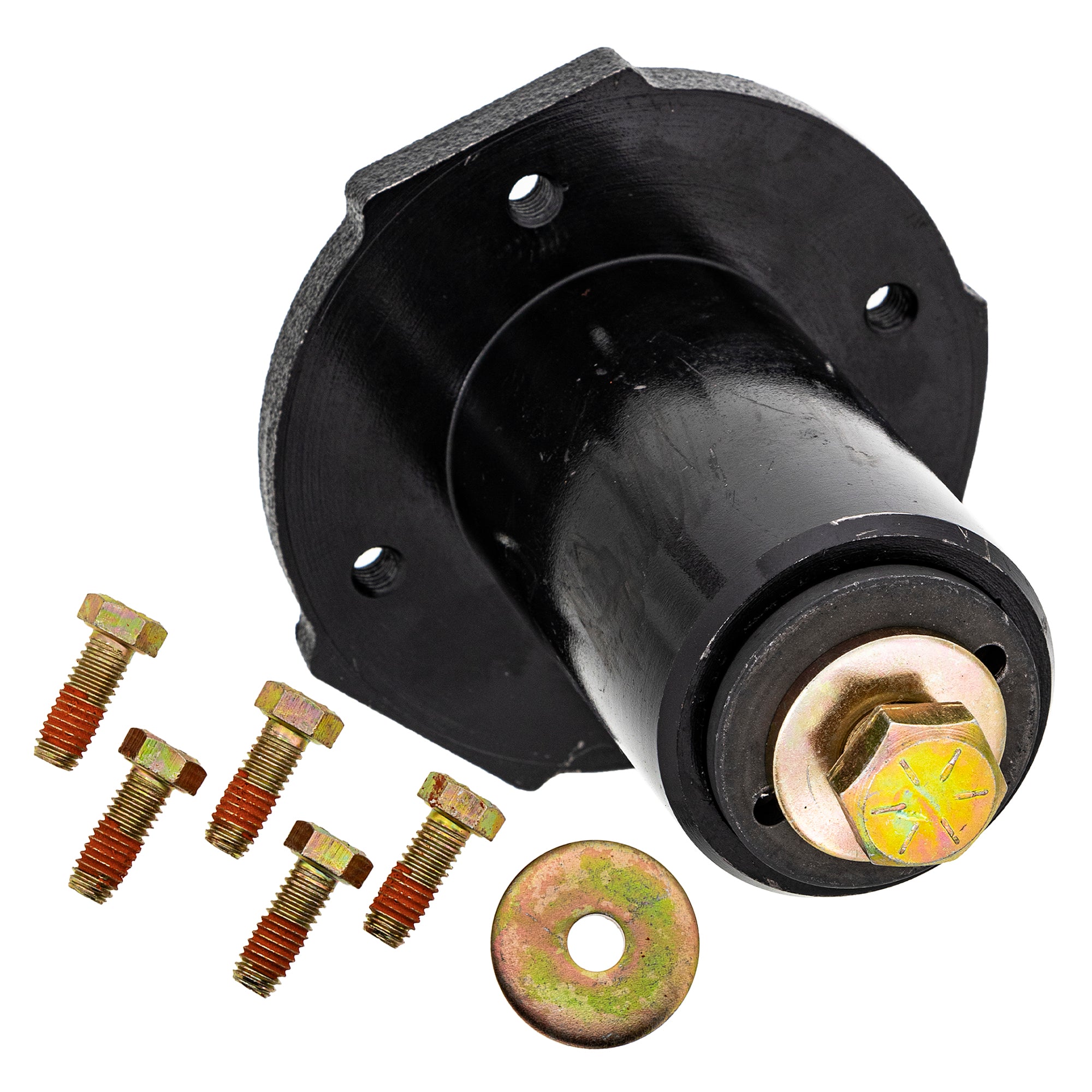

(QTY 2) 8TEN 810-CSP2241N Deck Spindle

Substitute For OEM Part Numbers(s): 59225800, 59215500, 59201000, 59114000, 09239400

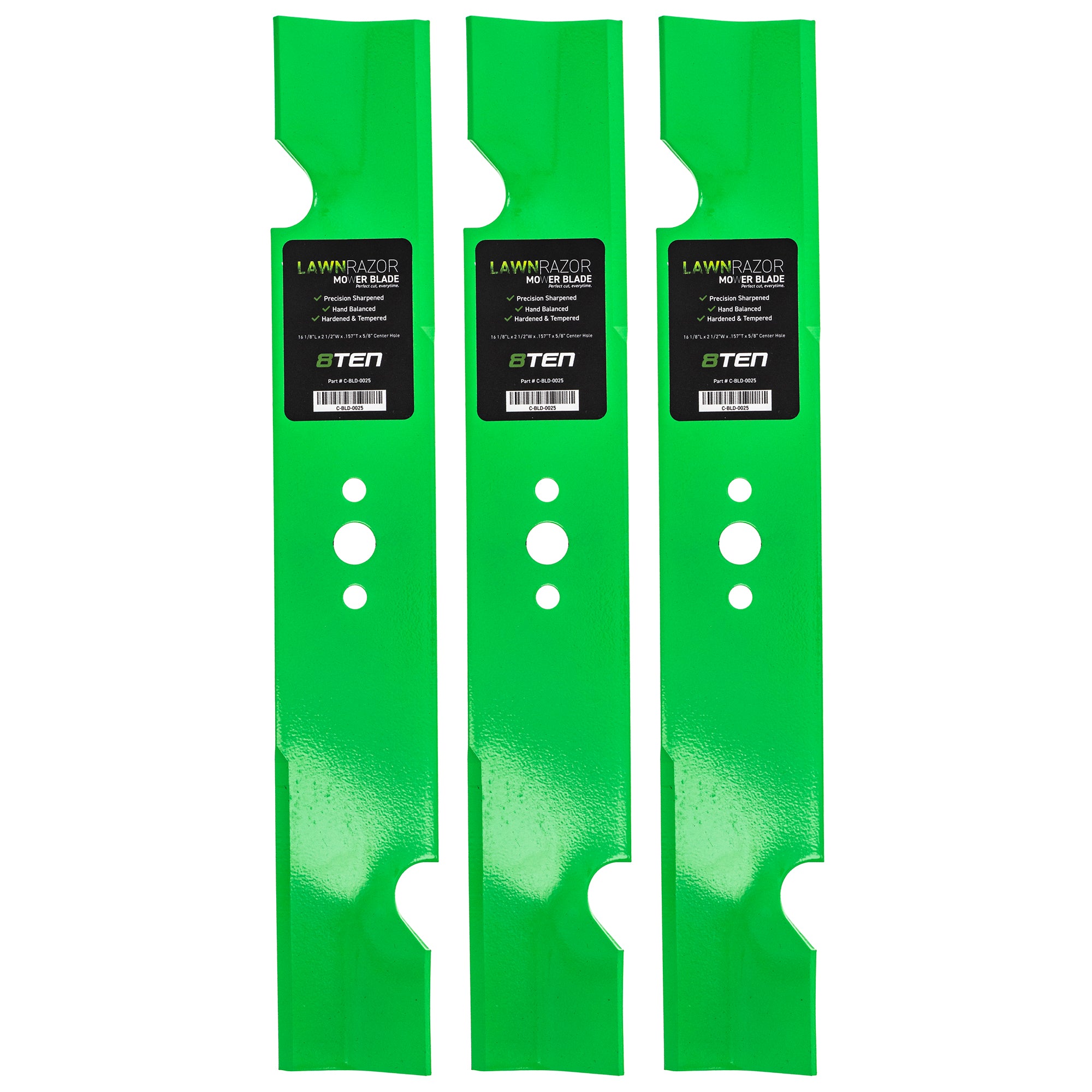

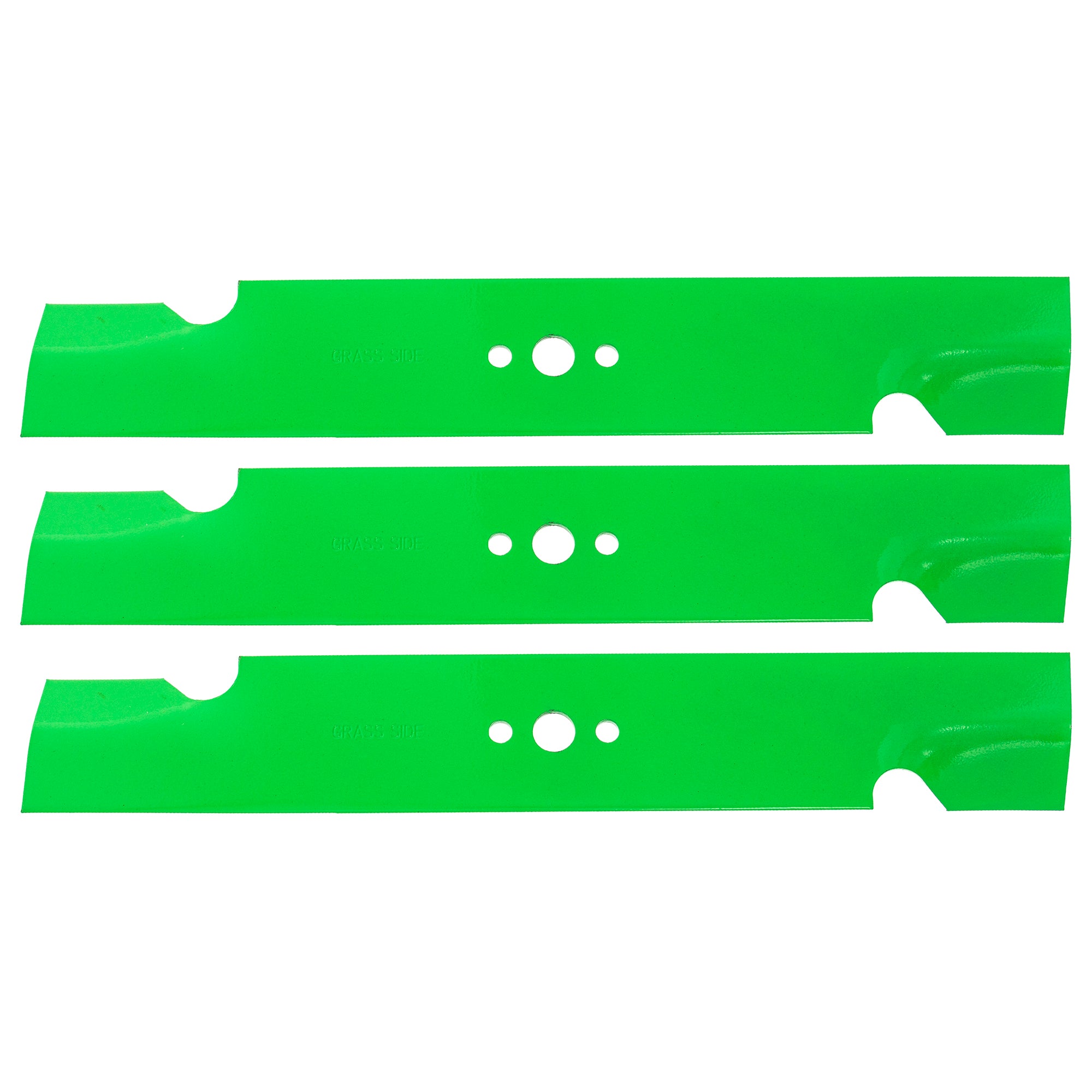

(QTY 3) 8TEN 810-CBL2247D LawnRAZOR Notched Air-Lift Mower Blade

Substitute For OEM Part Numbers(s): 20843S, 20843, 2003904, 1875887, 1744216, 1520843S, 1520843, 101366, 100340, 05244100, 04920600, 04919100, 038-5350-00, 038-4820-00, 038-3000-00, 00273000

MK1005301 Fits the Following OEM Models:

For Ariens

Pro 1544H, Pro 1748H, Pro-Master 144Z

For Gravely

Pro 1544G, Pro 1544H, Pro 1548G, Pro 1548H, Pro 1748G, Pro 1748H, Pro 1752H, Pro 1952H, Pro-Master 144Z, Pro-Master 144Z Eye-Q, Pro-Master 148Z, Pro-Master 148Z Eye-Q, Pro-Master 152Z, Pro-Master 152Z Eye-Q, Pro-Master 160Z, Pro-Master 160Z Eye-Q, Pro-Master 44Z
