Mower Deck Rebuild Kit For Gravely MK1005308

MK1005308 Mower Deck Rebuild Kit Product Info:

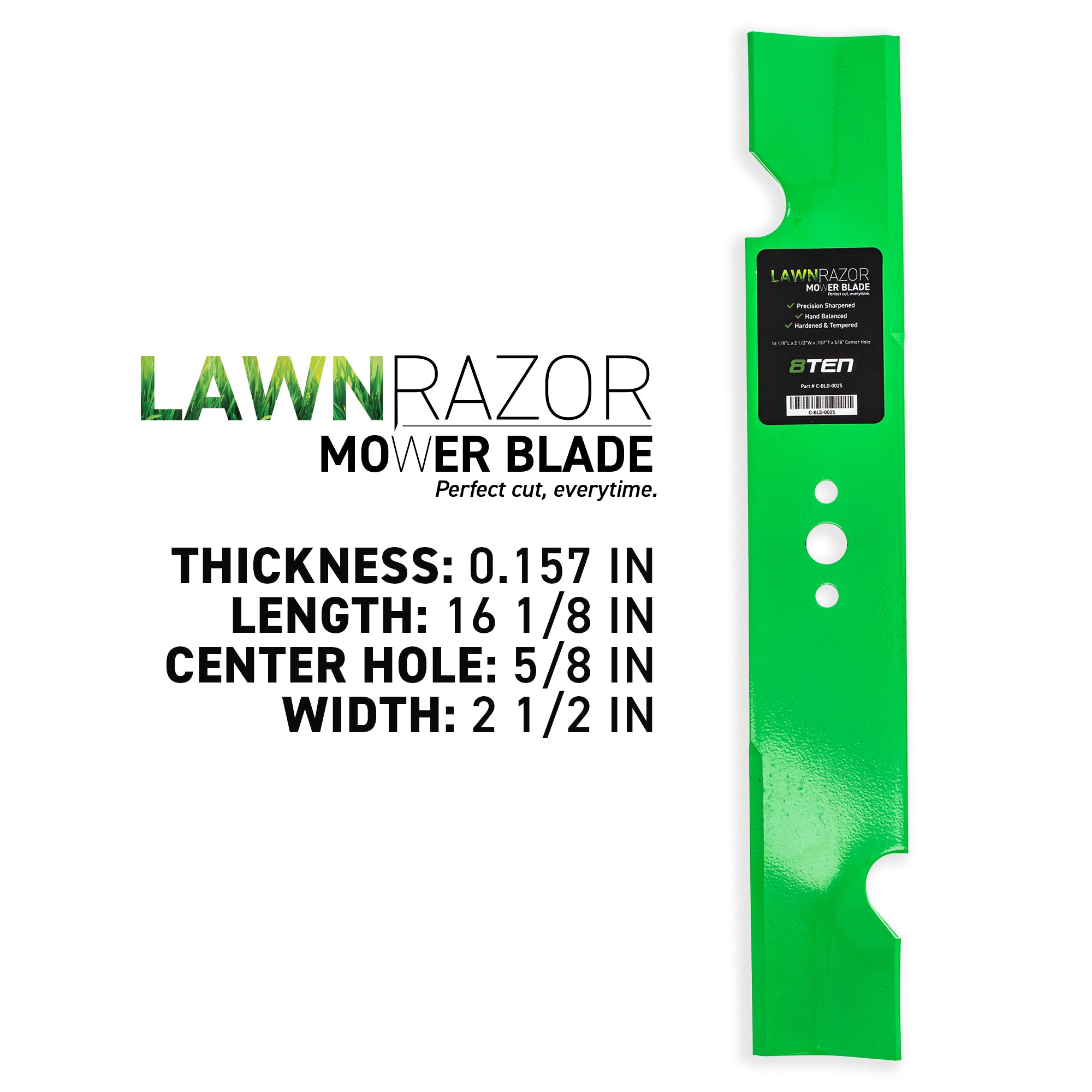

• Spindle Specs: Height-7 1/4'', OD- 1''; Keyway: 1/4"; Old Style; WILL NOT FIT 1 1/8" Shaft; Blade Specs: Length 16 1/8", Width 2 1/2", Thickness 0.157", Center Hole 5/8"

Included in This Kit:

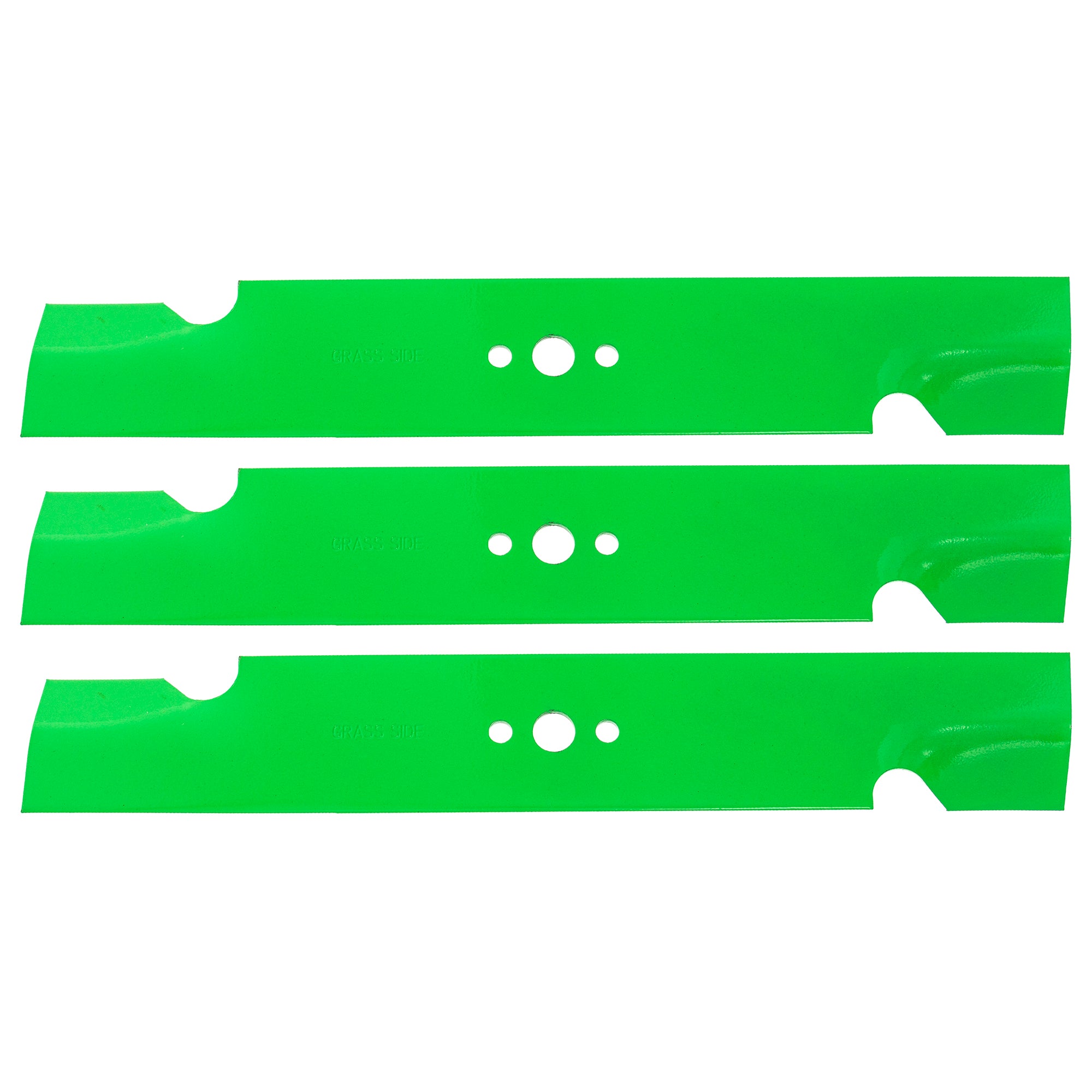

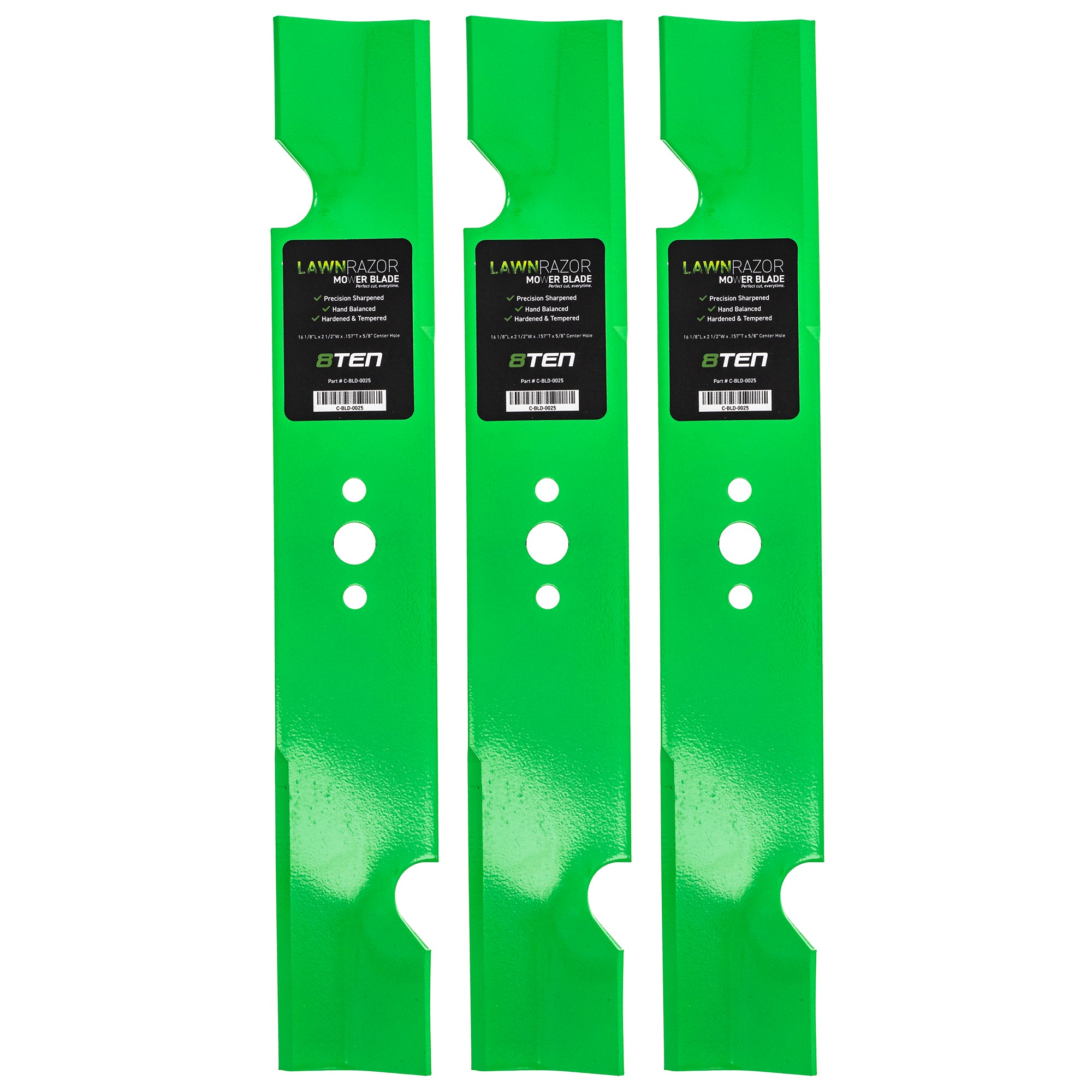

(QTY 3) 8TEN 810-CBL2247D LawnRAZOR Notched Air-Lift Mower Blade

Substitute For OEM Part Numbers(s): 20843S, 20843, 2003904, 1875887, 1744216, 1520843S, 1520843, 101366, 100340, 05244100, 04920600, 04919100, 038-5350-00, 038-4820-00, 038-3000-00, 00273000

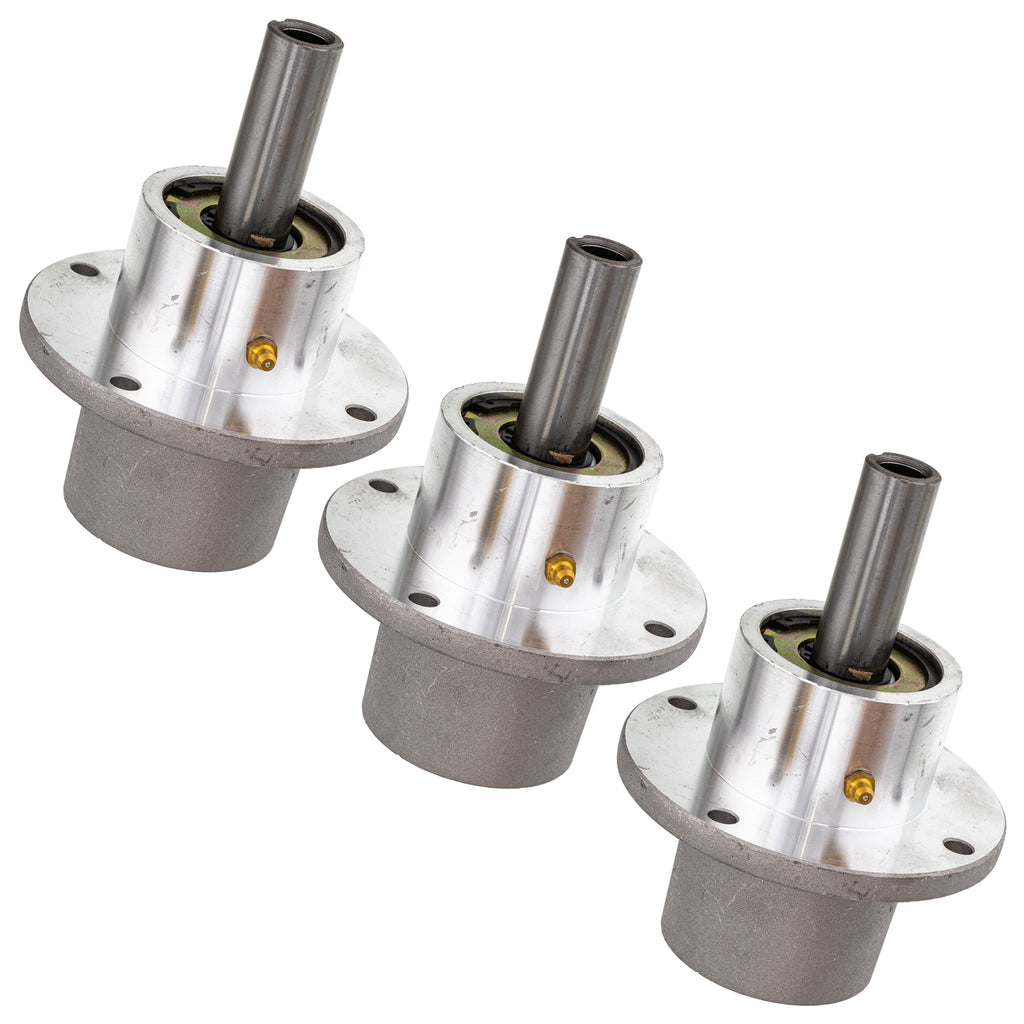

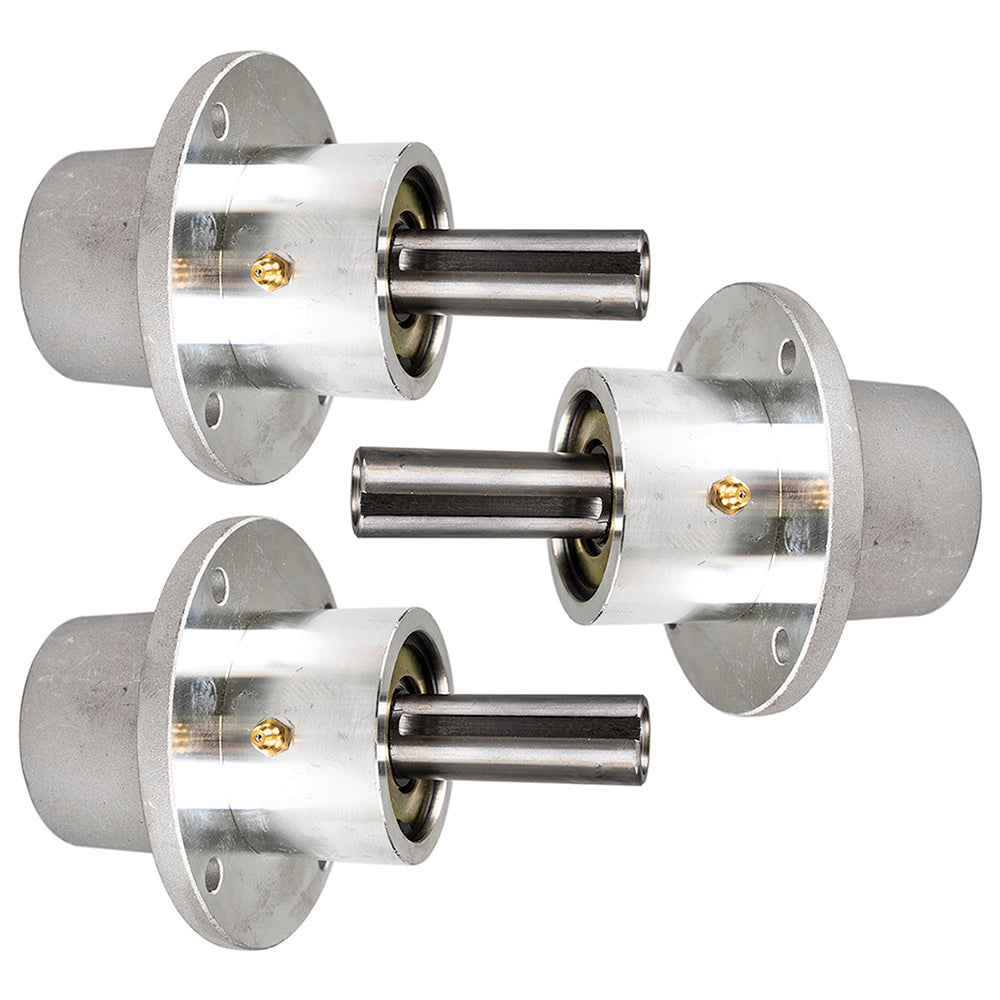

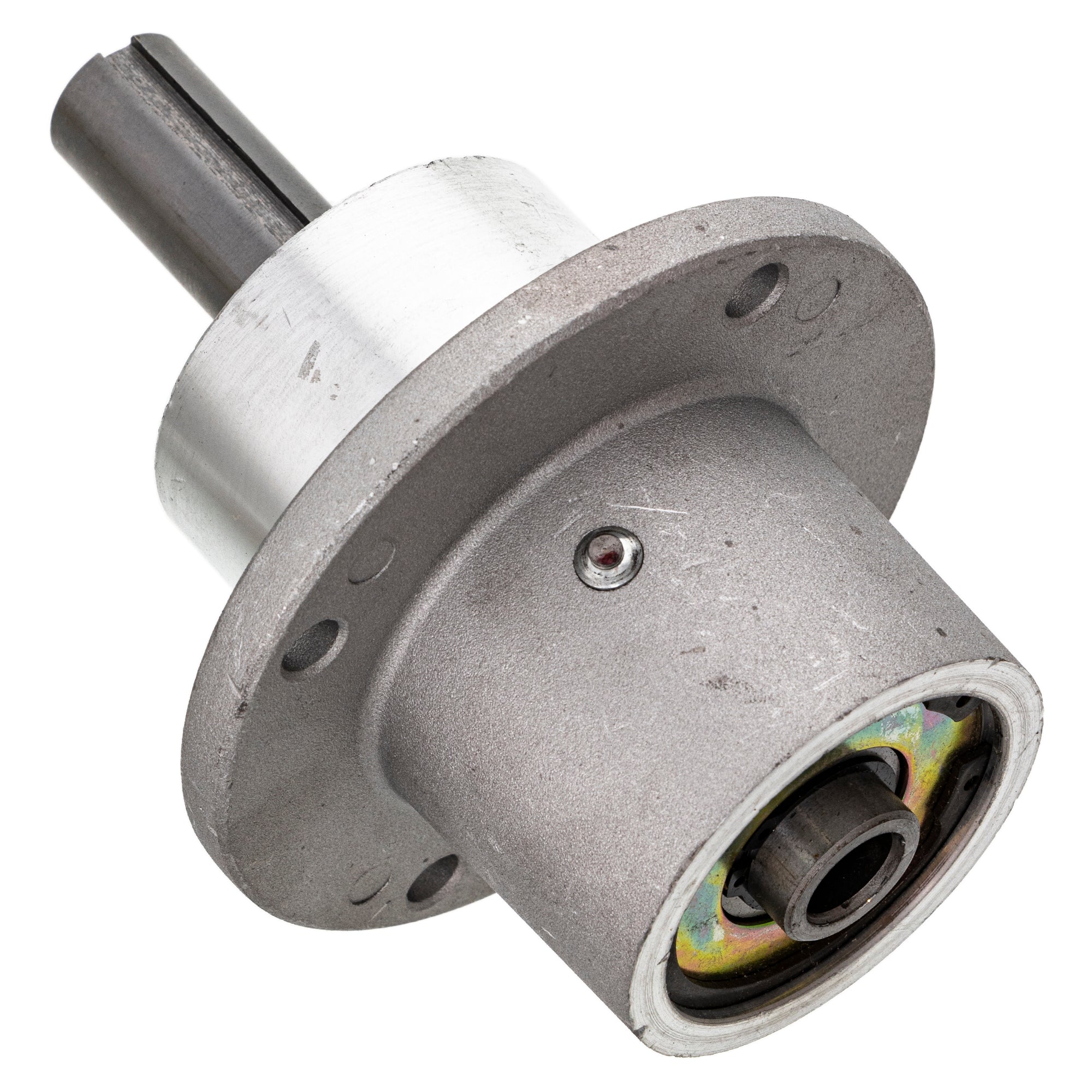

(QTY 3) 8TEN 810-CSP2276N Deck Spindle

Substitute For OEM Part Numbers(s): 71460007, 5061033SM, 5061033, 5030301, 46400, 46020, 3036300, 30301, 1530301

MK1005308 Fits the Following OEM Models:

For Gravely

Pro-Master 144Z, Pro-Master 144Z Eye-Q, Pro-Master 148i, Pro-Master 148Z, Pro-Master 152i, Pro-Master 152Z, Pro-Master 152Z Eye-Q, Pro-Master 160i, Pro-Master 160Z, Pro-Master 160Z Eye-Q, Pro-Master 44Z, Pro-Turn 148, Pro-Turn 152, Pro-Turn 160, ZT 1540, ZT 1640, ZT 1740, ZT 1840, ZT 1844, ZT 1944, ZT 2044, ZT 2048, ZT 2148, ZT 2252, ZT 2348, ZT 2352, ZT 2552, ZT XL 1844, ZT XL 2044, ZT XL 2148, ZT XL 2348, ZT XLP 2044, ZT XLP 2348
