Deck Spindle Notched High Lift Blade Kit For Gravely Ariens Great Dane

MK1014643 Deck Spindle Notched High Lift Blade Kit Product Info:

• Outer Spindle: Height-5 1/6", ID- 5/8" Shaft, Keyway-1/4", OD-1" Shaft.
• Blade: Length 16 1/4", Center Hole-5/8", Width-2 1/2", Thickness-.197 "

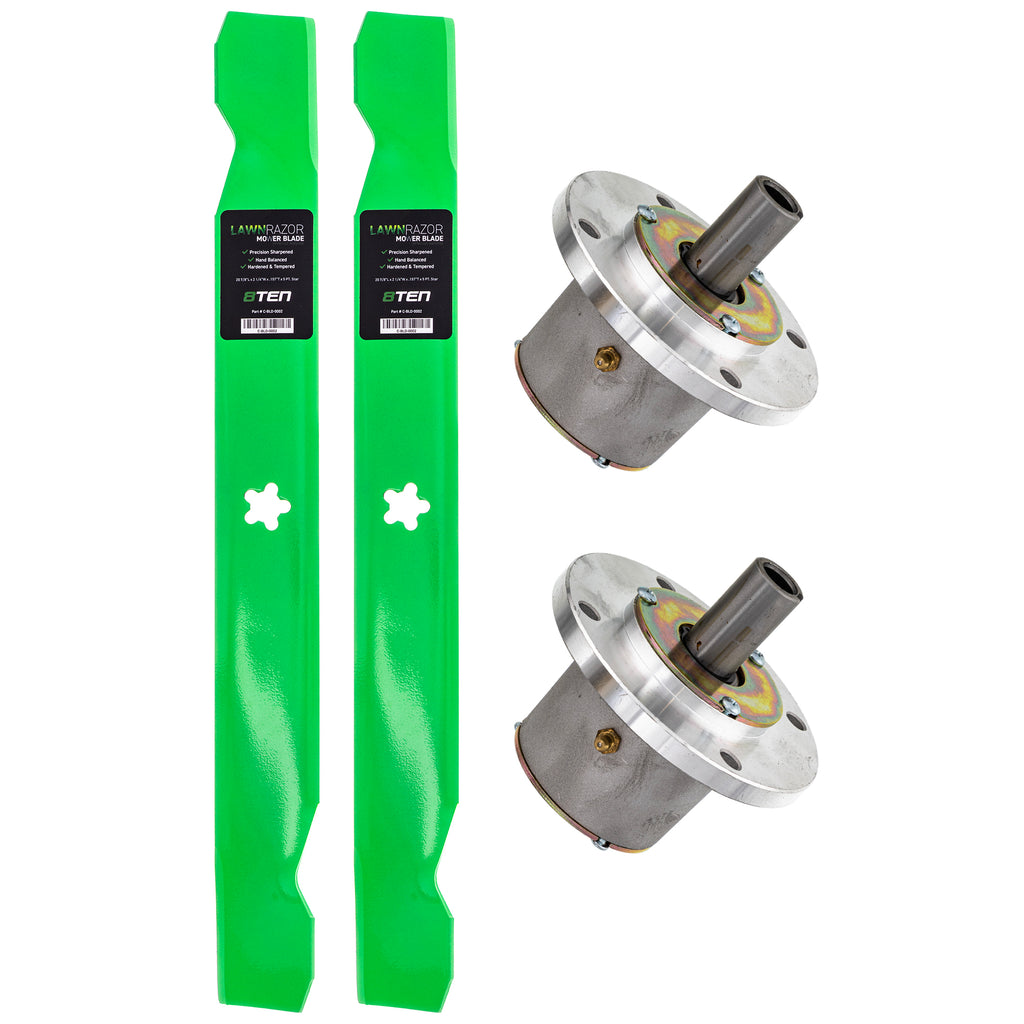

Included in This Kit:

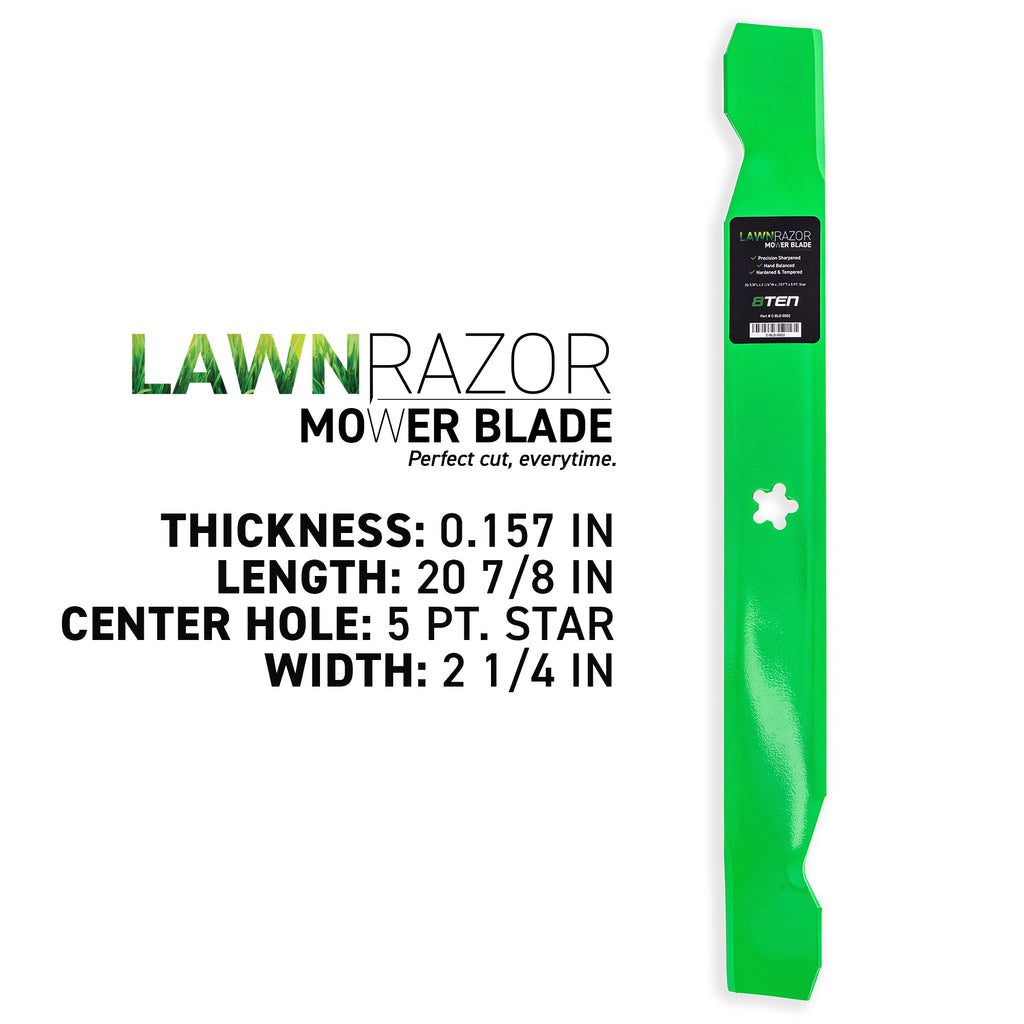

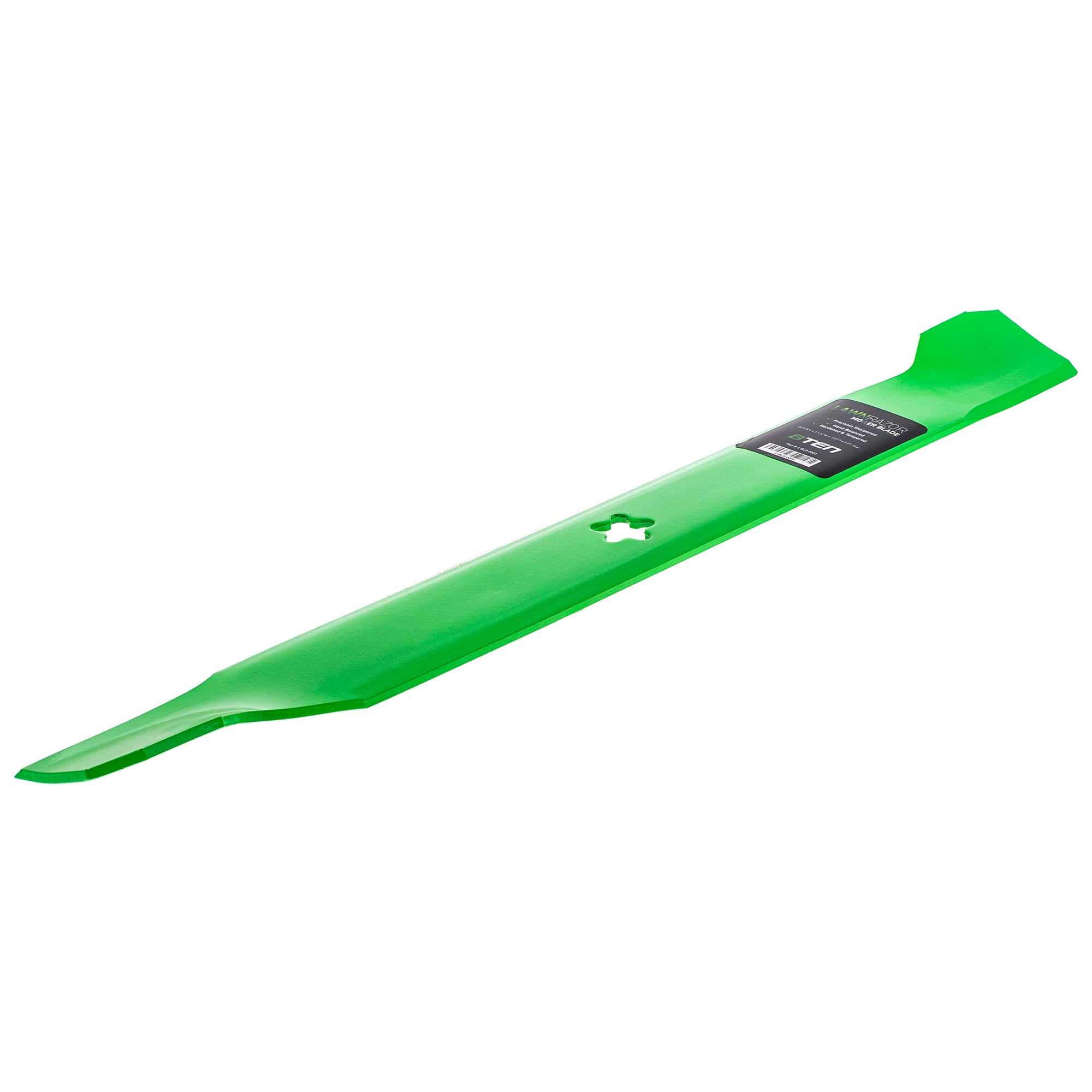

(QTY 2) 8TEN 810-CBL2231D LawnRAZOR Rolled Mower Blade

Substitute For OEM Part Numbers(s): GDU10230, 7017036, 5020843SM, 303348, 302616, 20843, 1878444, 1875887, 1744216, 1520843S, 1520843, 05244100, 04920600, 04919100, 00878100, 00273000

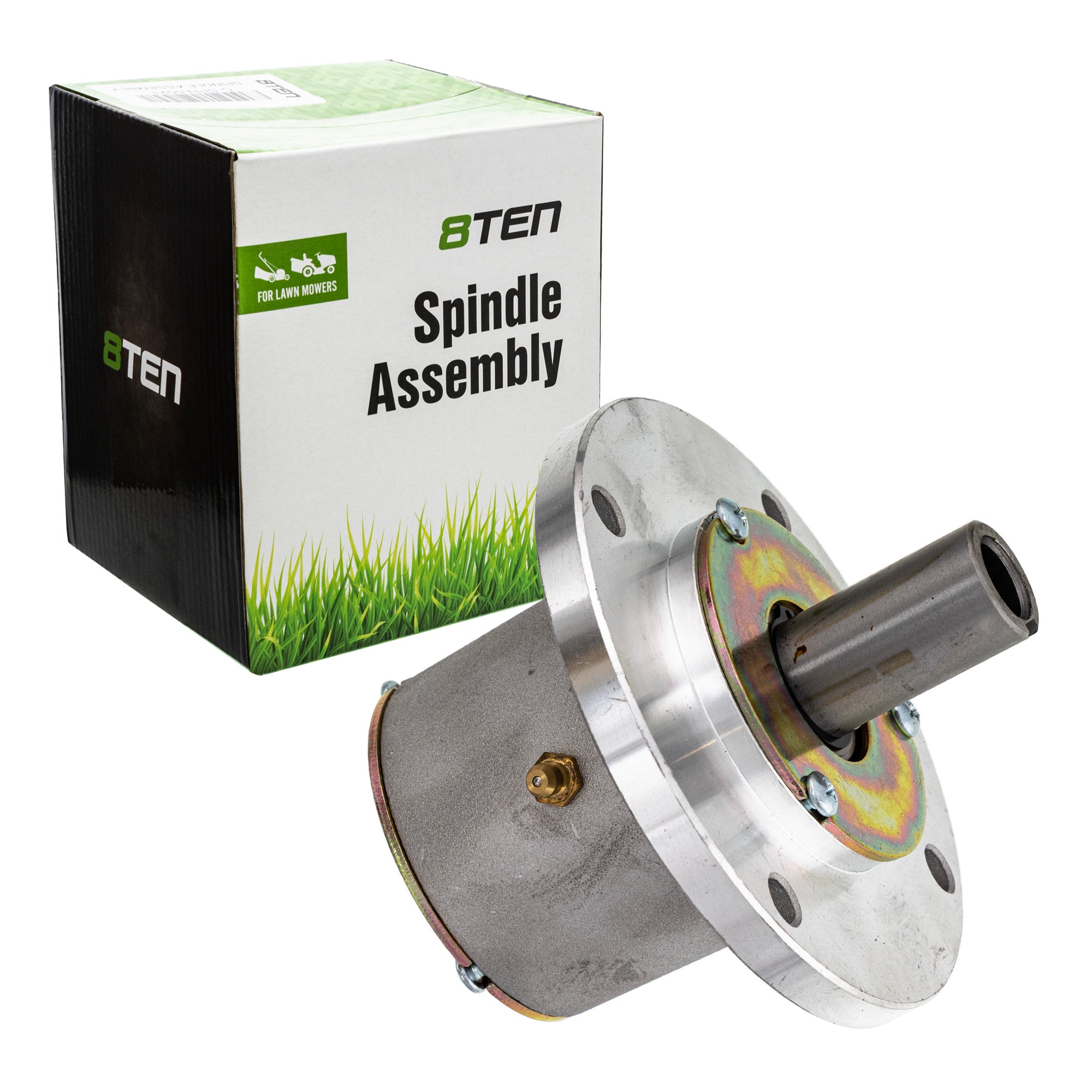

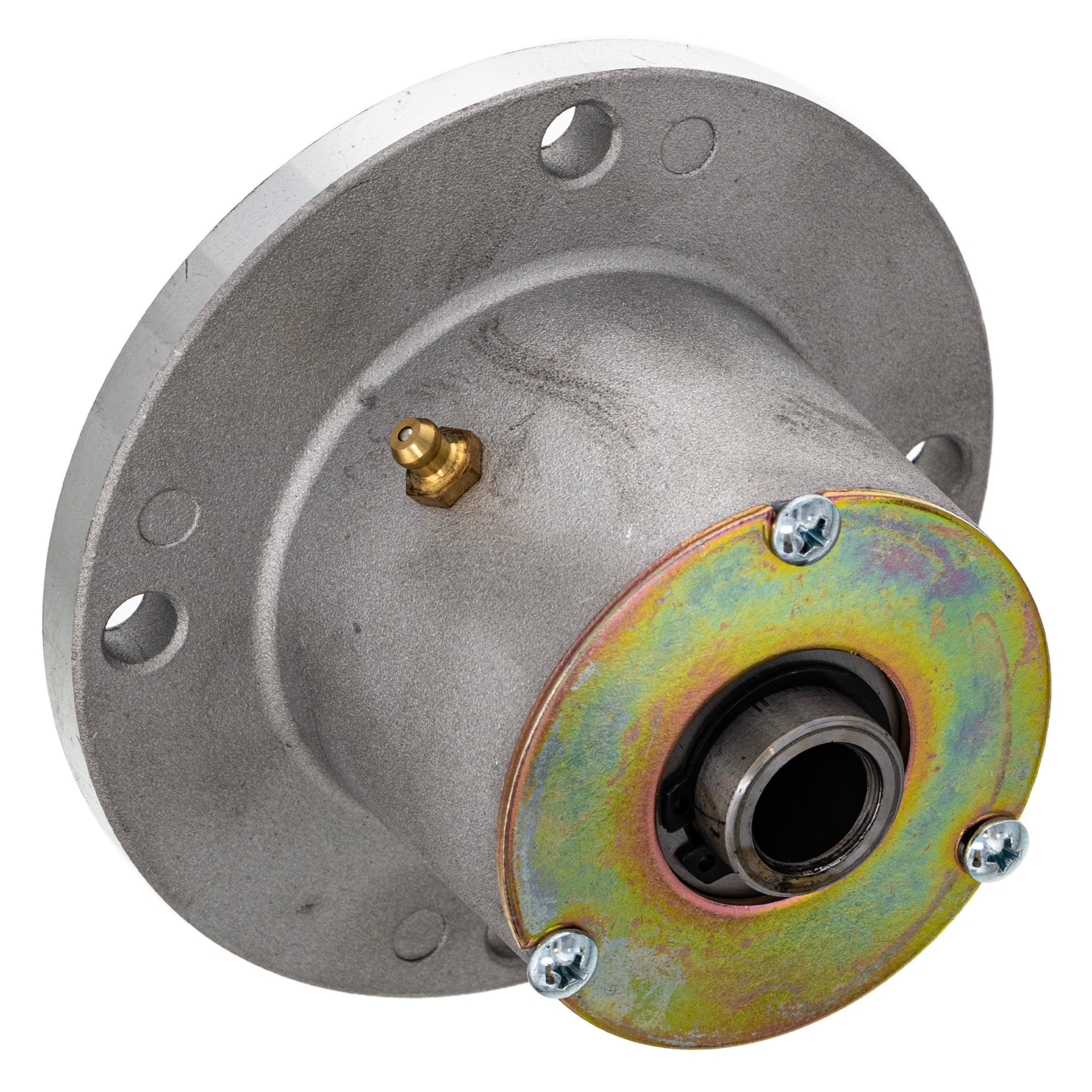

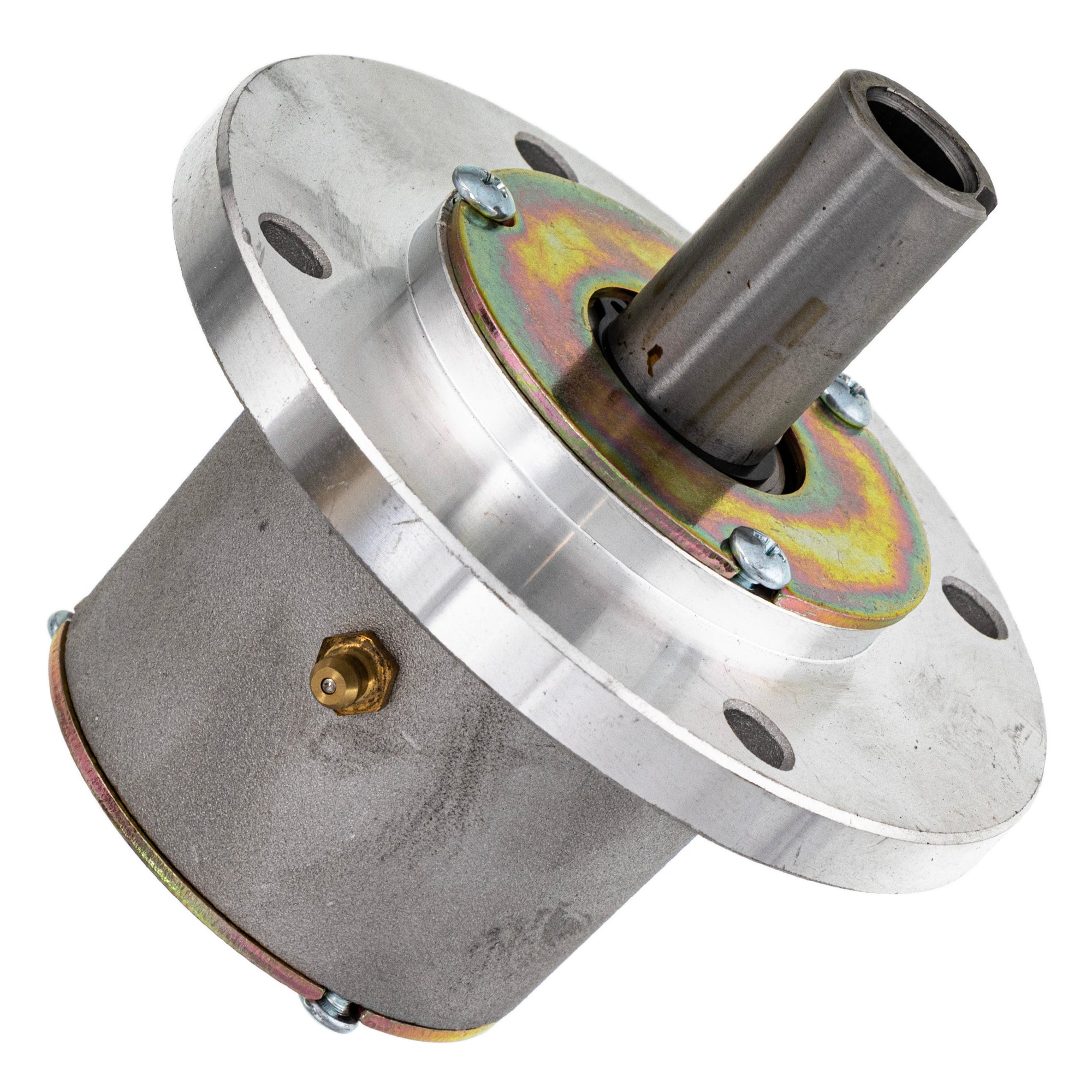

(QTY 2) 8TEN 810-CSP2293N Deck Spindle

Substitute For OEM Part Numbers(s): 7059759, 36006N, 302030, 2870563, 1636104, 1-302030

MK1014643 Fits the Following OEM Models:

For Ariens

Apex 48 SD, Zoom 1540, Zoom 1744, Zoom 1840, Zoom 1844, Zoom 2044, Zoom 2252, Zoom 2348, Zoom 2552, Zoom XL 1844, Zoom XL 2044, Zoom XL 2148, Zoom XL 2348

For Gravely

Pro 1332G, Pro 1336G, Pro 1536G, Pro 1536H, Pro 1544G, Pro 1544H, Pro 1548G, Pro 1548H, Pro 1748G, Pro 1748H, Pro 1752H, Pro 1952H, Pro-Master 144Z, Pro-Master 144Z Eye-Q, Pro-Master 148i, Pro-Master 148Z, Pro-Master 148Z Eye-Q, Pro-Master 152i, Pro-Master 152Z, Pro-Master 152Z Eye-Q, Pro-Master 160i, Pro-Master 160Z, Pro-Master 160Z Eye-Q, Pro-Master 44Z, Pro-Stance 48, Pro-Turn 148, Pro-Turn 152, Pro-Turn 160, ZT 1540, ZT 1640, ZT 1740, ZT 1840, ZT 1844, ZT 1944, ZT 2044, ZT 2048, ZT 2148, ZT 2252, ZT 2348, ZT 2352, ZT 2552, ZT XL 1844, ZT XL 2044, ZT XL 2148, ZT XL 2348, ZT XLP 2044, ZT XLP 2348

For Great Dane

GD1840, GD2044, GD2348
