Spindle Blade Belt Kit For Grasshopper MK1015076

MK1015076 Spindle Blade Belt Kit Product Info:

• Blade Length (Inch): 20.98, Width (Inch): 2.5, Height (Lift) (Inch): 0.98, Center Hole (Inch): 0.5, Blade Type: Notched High Lift
• Spindle 1 Height (IN): 7.36, Width(IN): 7.95, Length (IN): 7.95, Spindle 2 Height (IN): 9.02, Width(IN): 7.95, Length (IN): 7.95
• Pulley 1 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 6.28, Pulley 2 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 6.52
• Belt Profile: B/5L; Length (in): 138; Width (in): 0.625

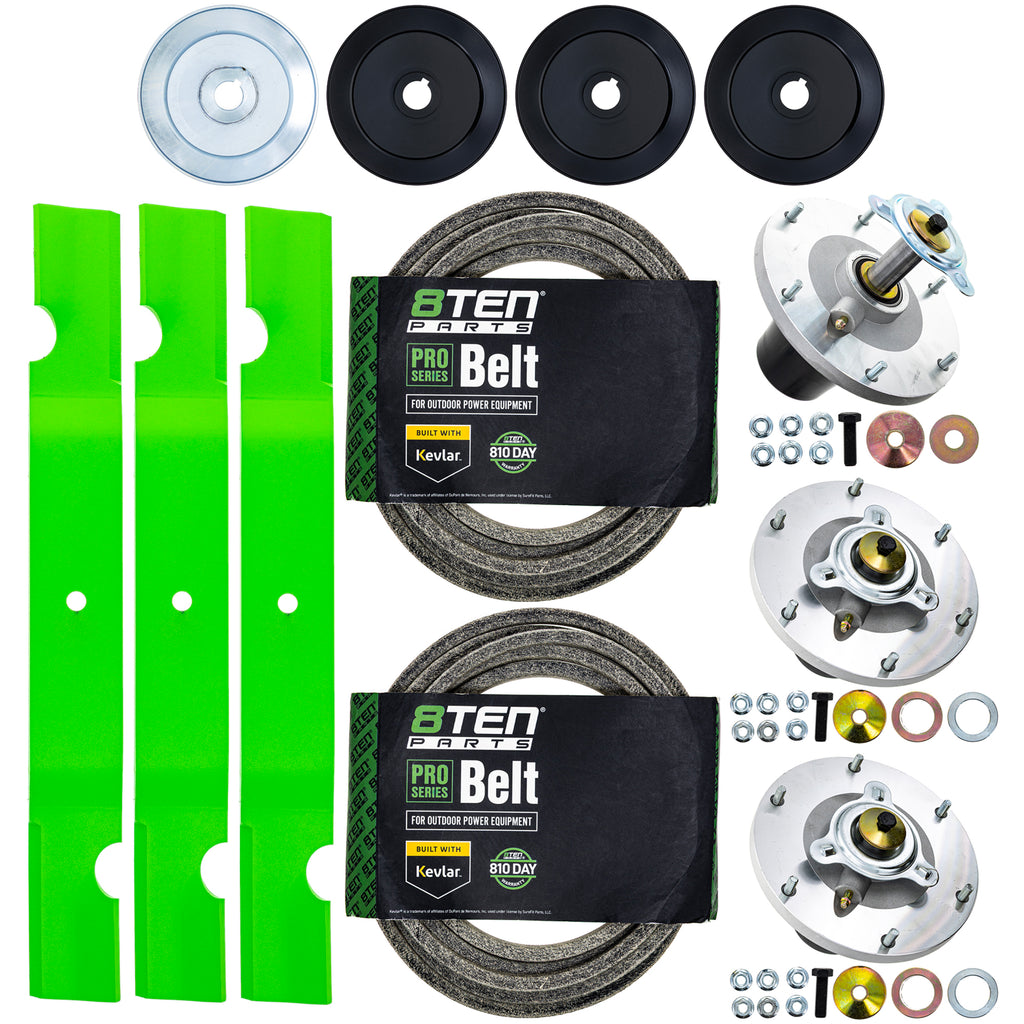

Included in This Kit:

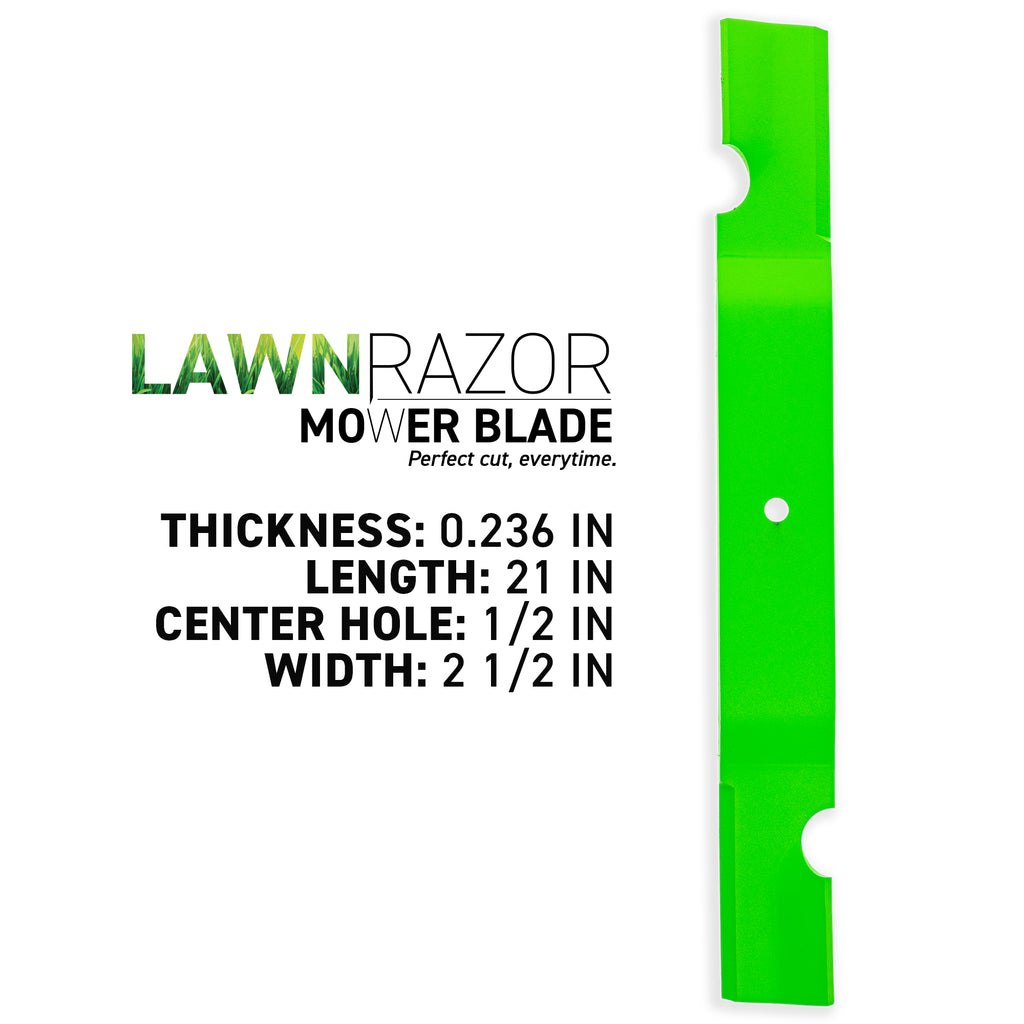

(QTY 3) 8TEN 810-CBL2712D LawnRAZOR High Lift Blade

Substitute For OEM Part Numbers(s): 320245

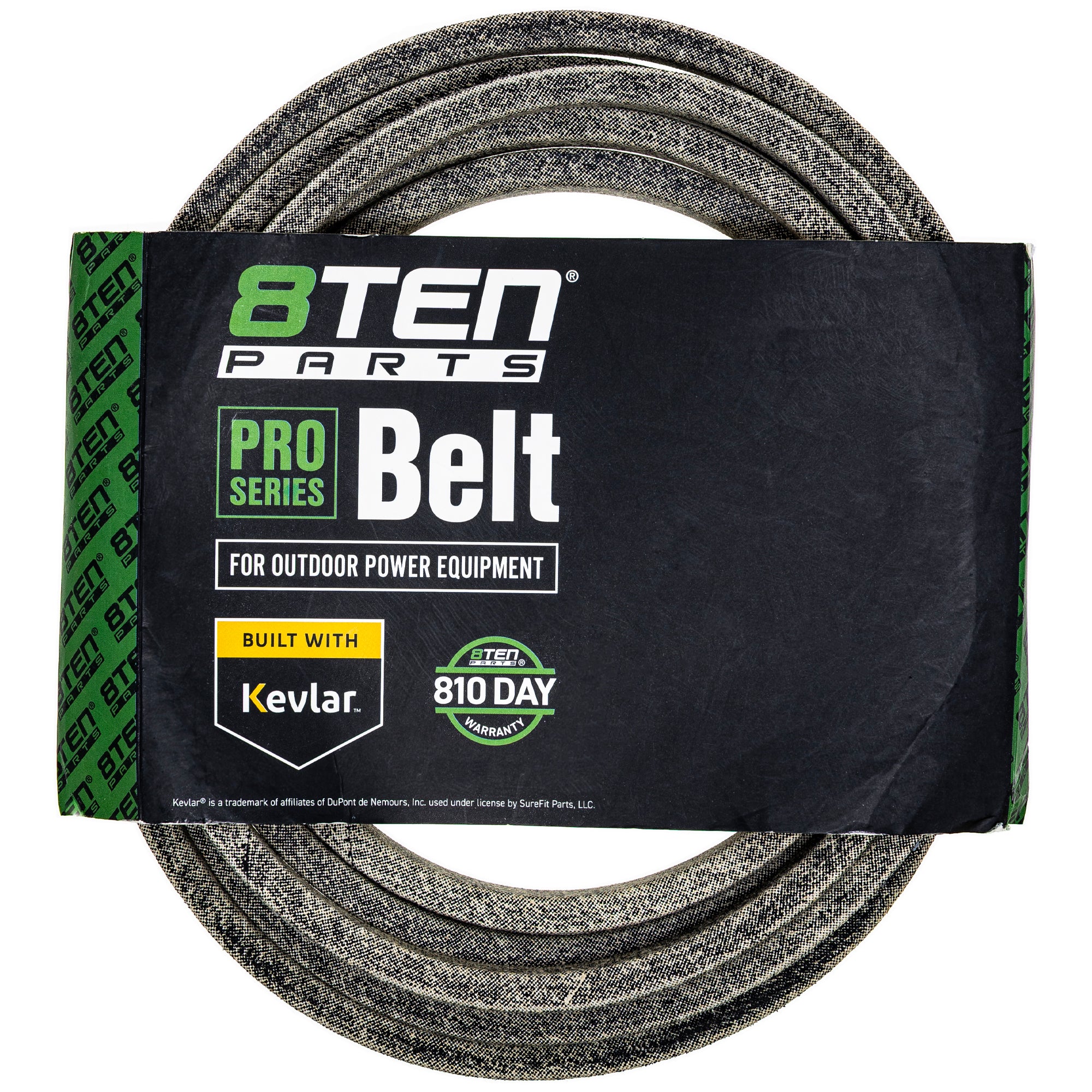

(QTY 2) 8TEN 810-CBL2820T Belt with Kevlar®

Substitute For OEM Part Numbers(s): 954-0642, 532197242, 754-0642, 593773401, 112-0933, 382085, 784322, 041-4022-00

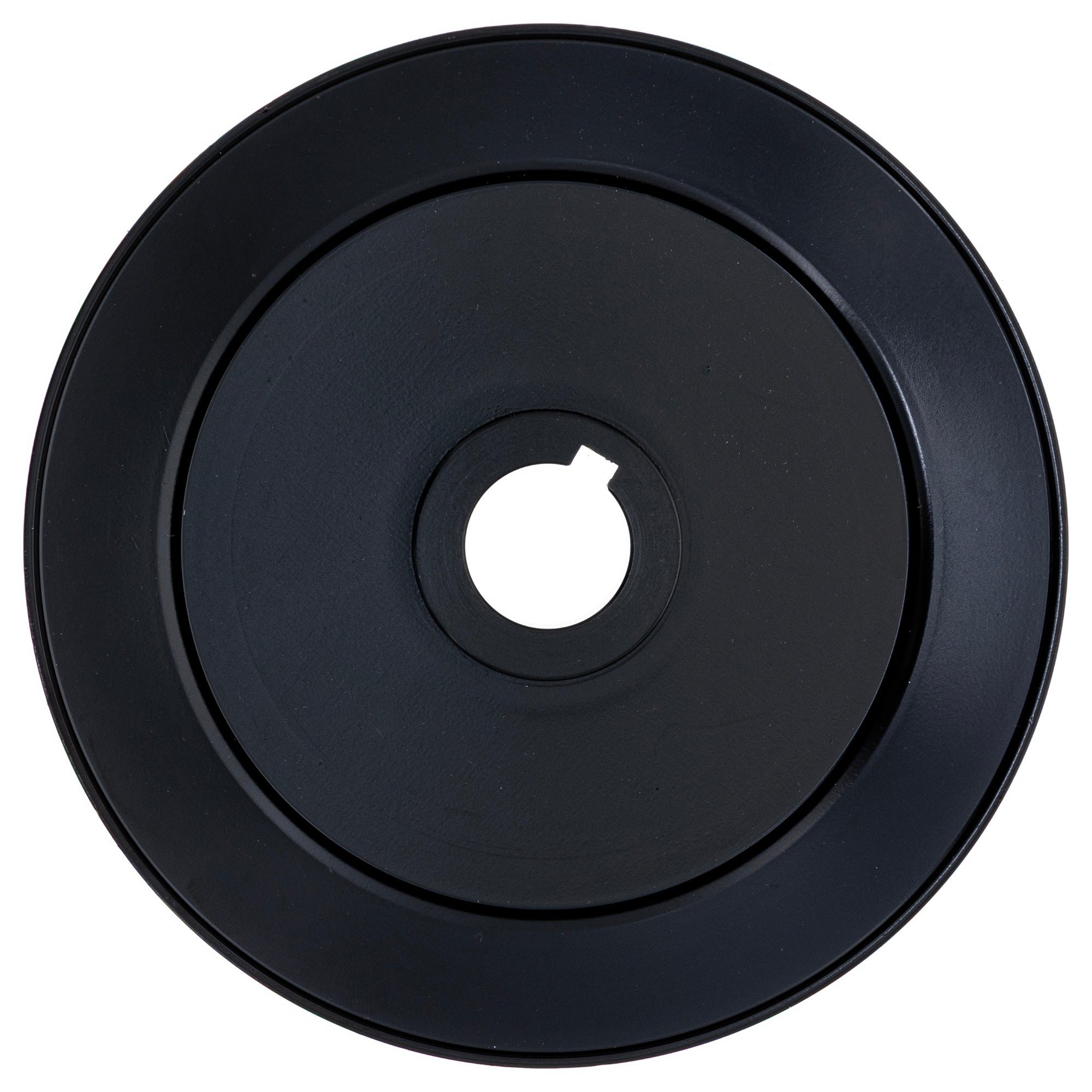

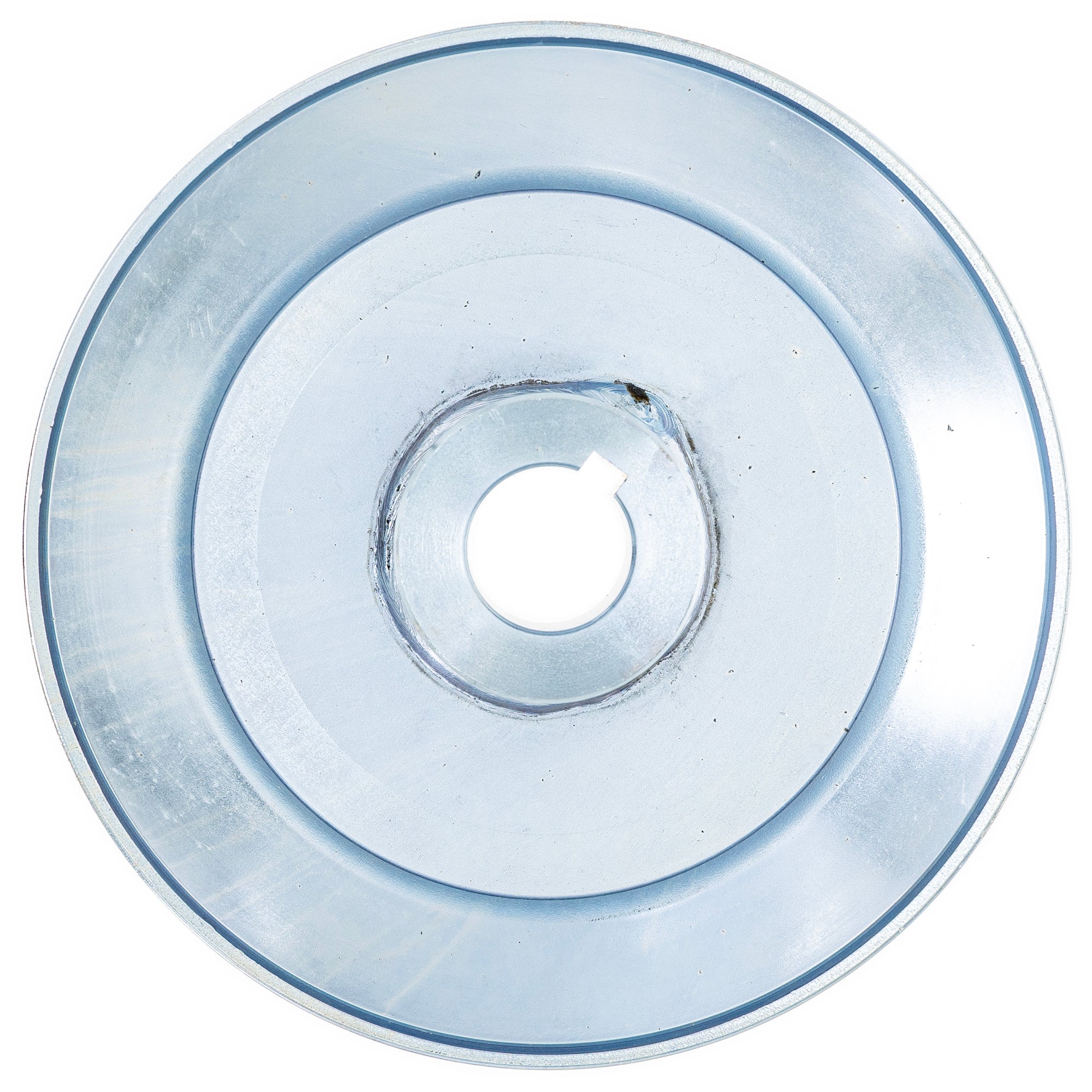

(QTY 3) 8TEN 810-CPL2306Y Pulley

Substitute For OEM Part Numbers(s): 415892

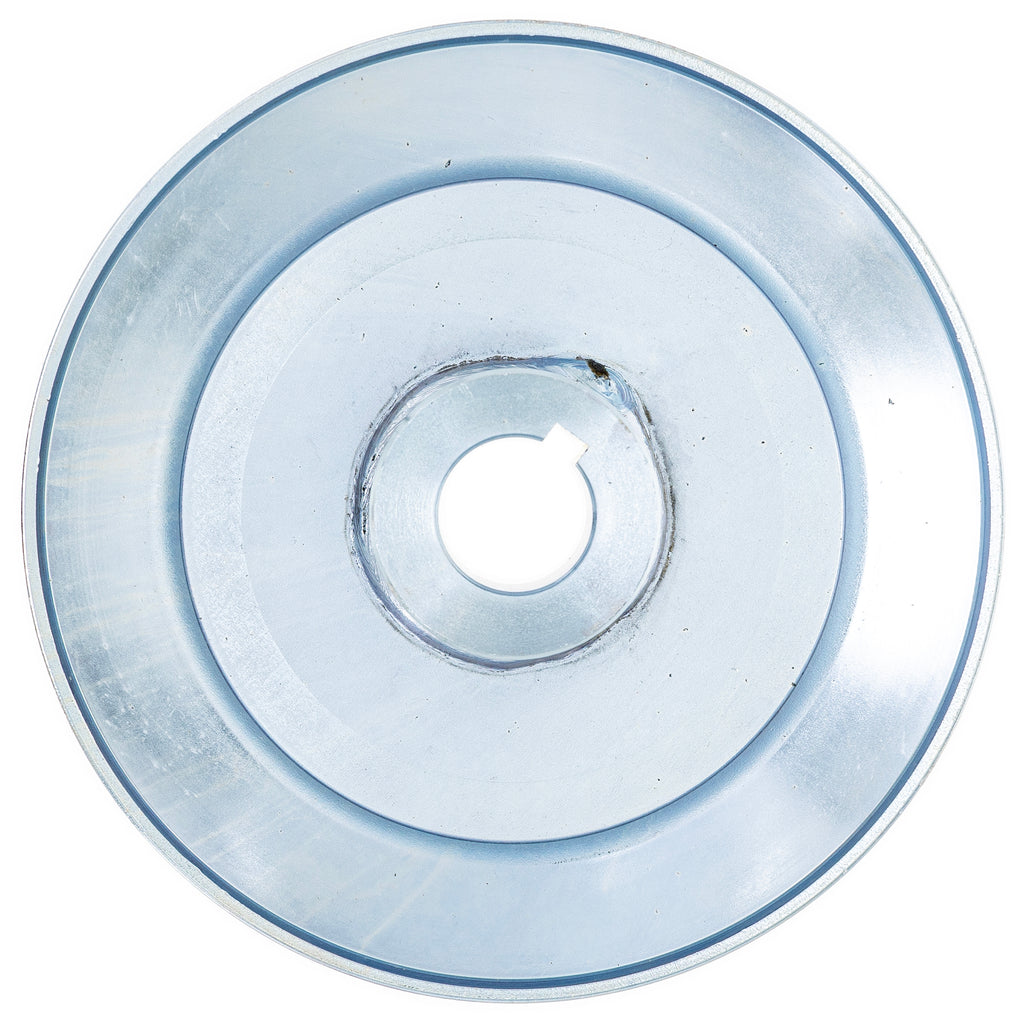

(QTY 1) 8TEN 810-CPL2300Y Pulley

Substitute For OEM Part Numbers(s): 415896

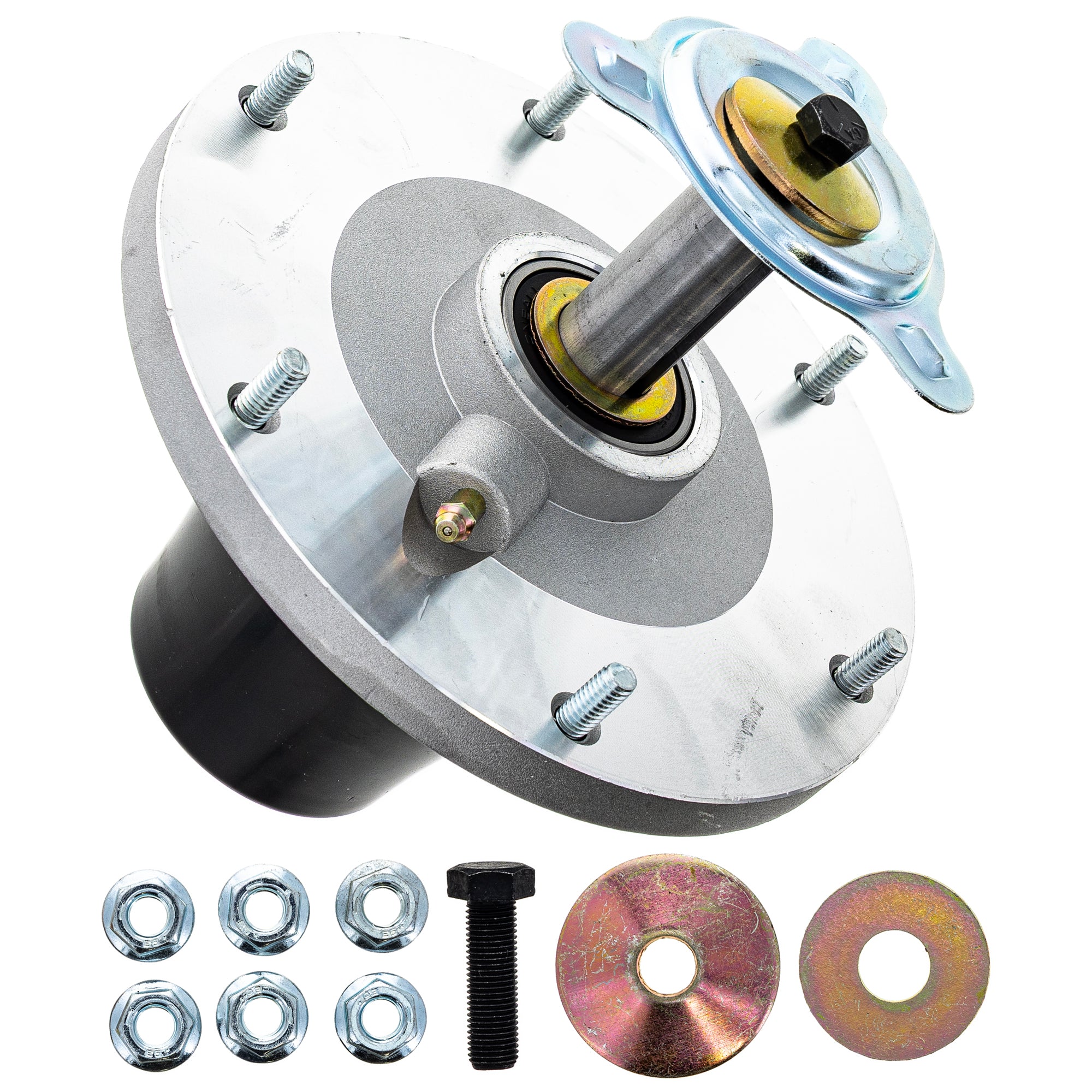

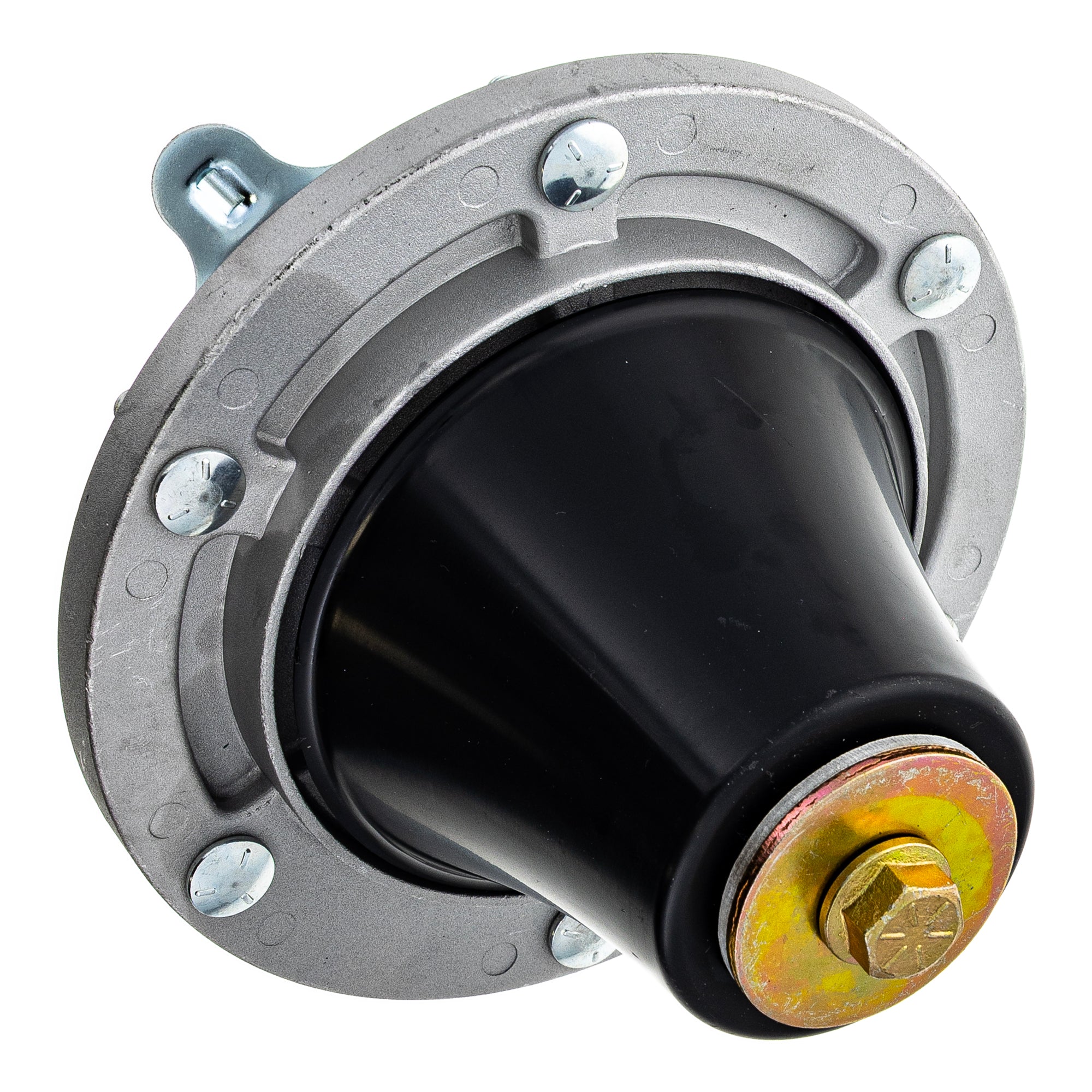

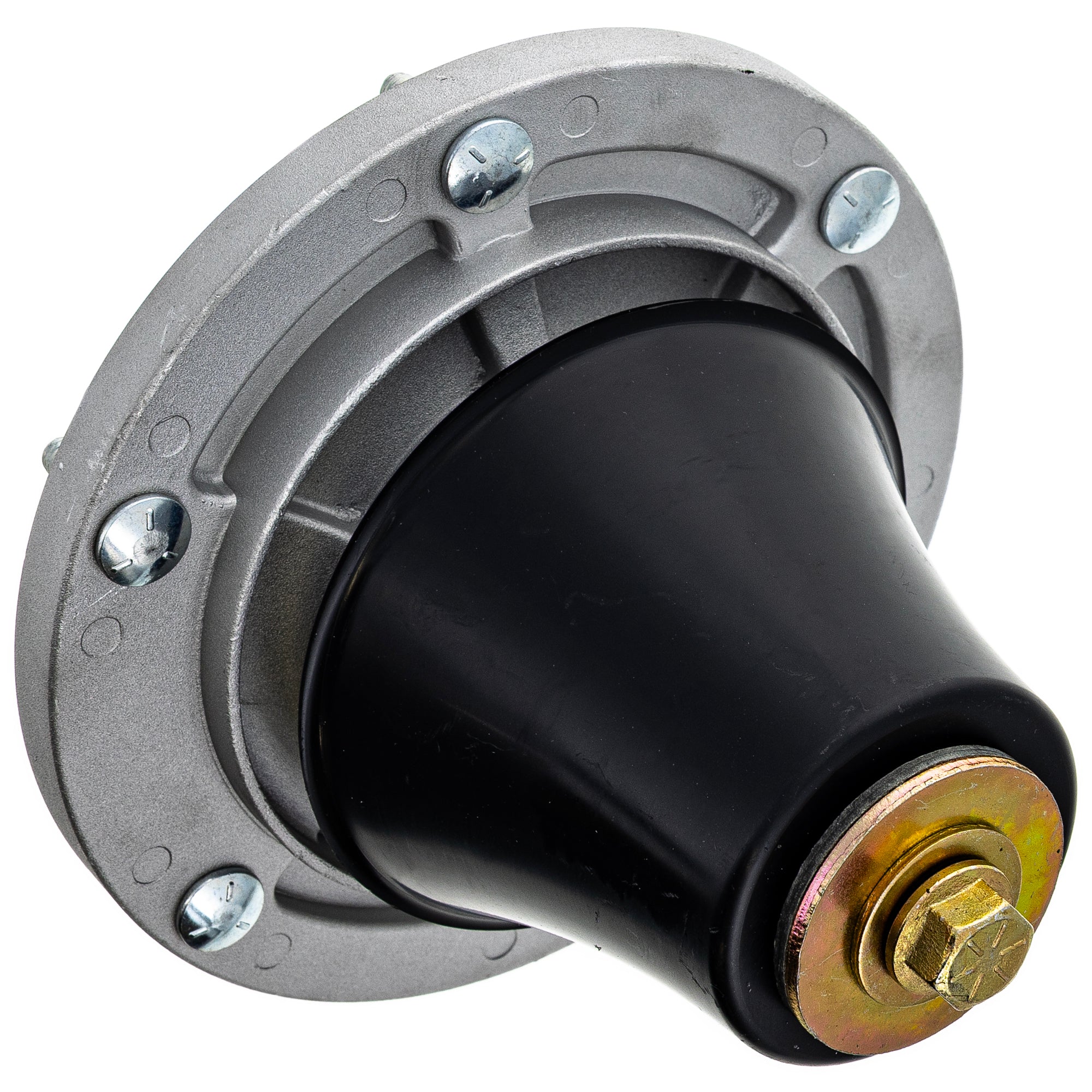

(QTY 2) 8TEN 810-CSP2569N Spindle Housing

Substitute For OEM Part Numbers(s): 623781, 623750, 623740, 623700

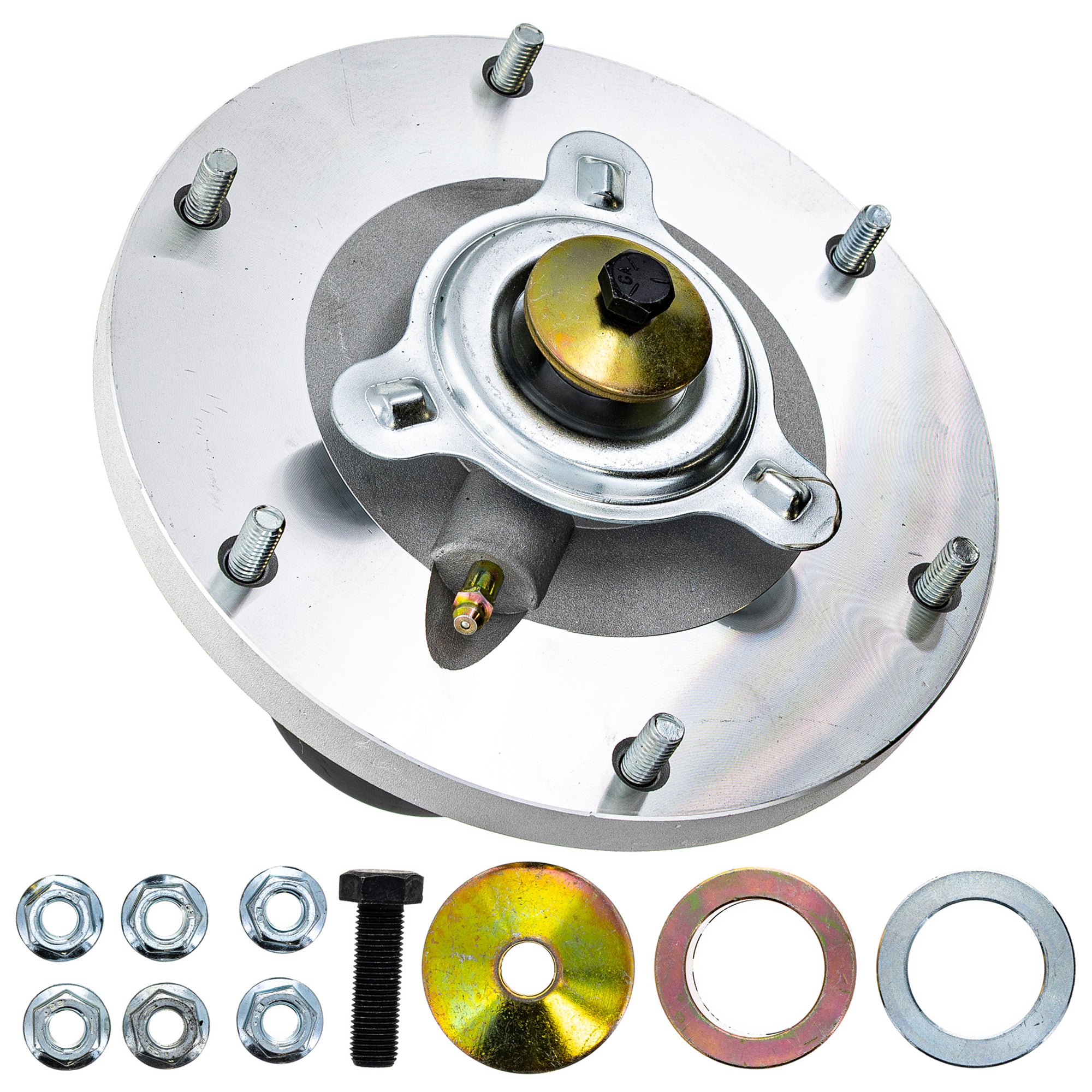

(QTY 1) 8TEN 810-CSP2572N Spindle Housing

Substitute For OEM Part Numbers(s): 623739, 623703

MK1015076 Fits the Following OEM Models:
