Spindle Blade Belt Kit For Grasshopper MK1015082

MK1015082 Spindle Blade Belt Kit Product Info:

• Outer Spindle Height (IN): 7.36, Width(IN): 7.95, Length (IN): 7.95, Blade Mounting Pattern: 1/2-20 Thread, Center Spindle Specs Height-7 1/2
• Outer Pulley Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 6.28, Height (IN): 1.09, Thickness (IN): 1.09
• Center Pulley Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 6.52, Height (IN): 2.06, Thickness (IN): 2.06
• Blade Length (Inch): 20.98, Width (Inch): 2.5, Height (Lift) (Inch): 0.98, Blade Type: High Lift

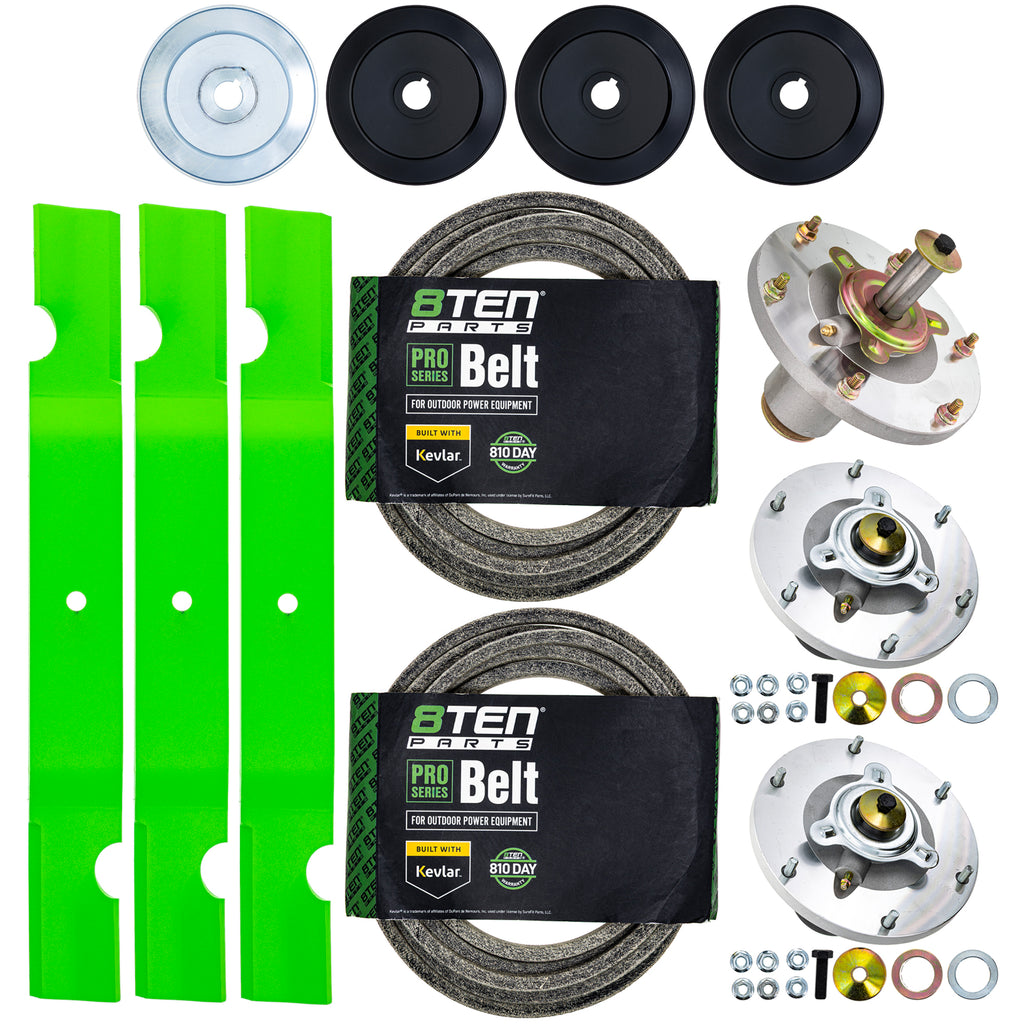

Included in This Kit:

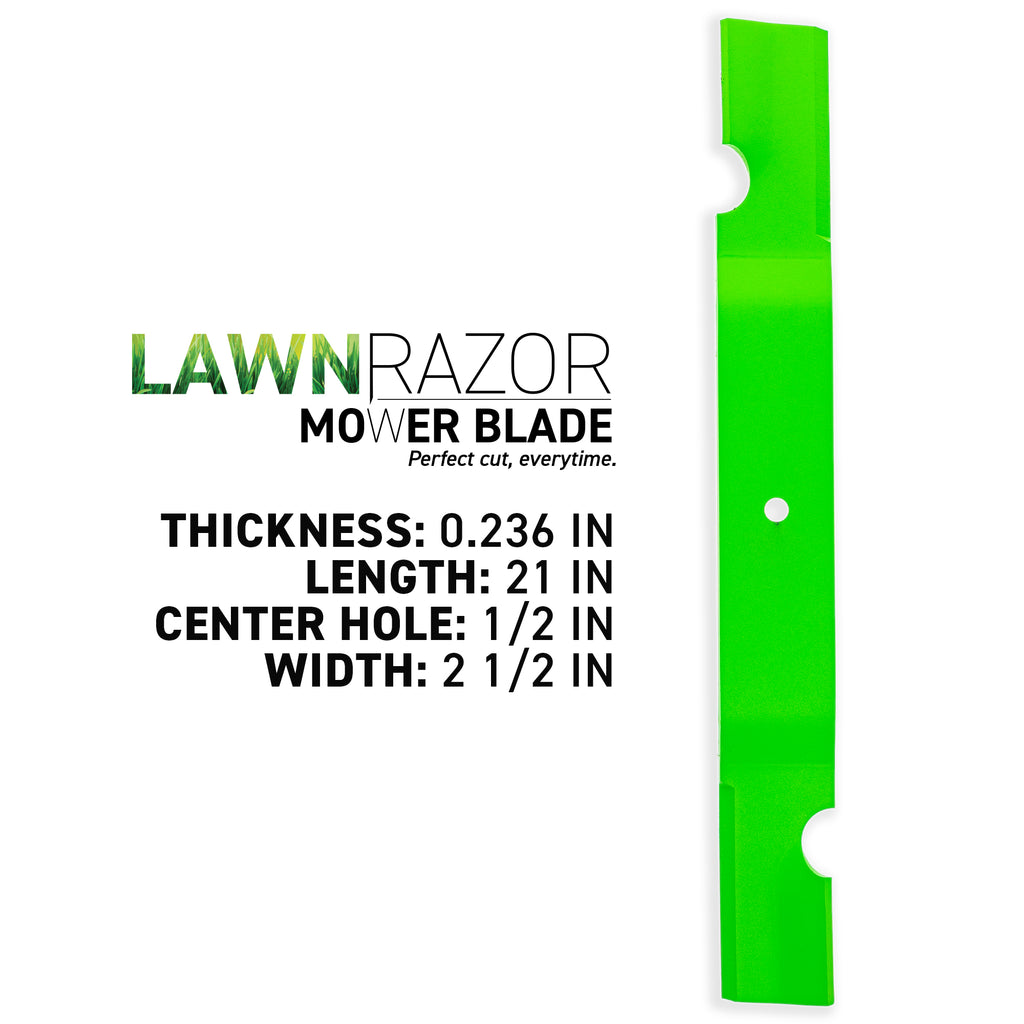

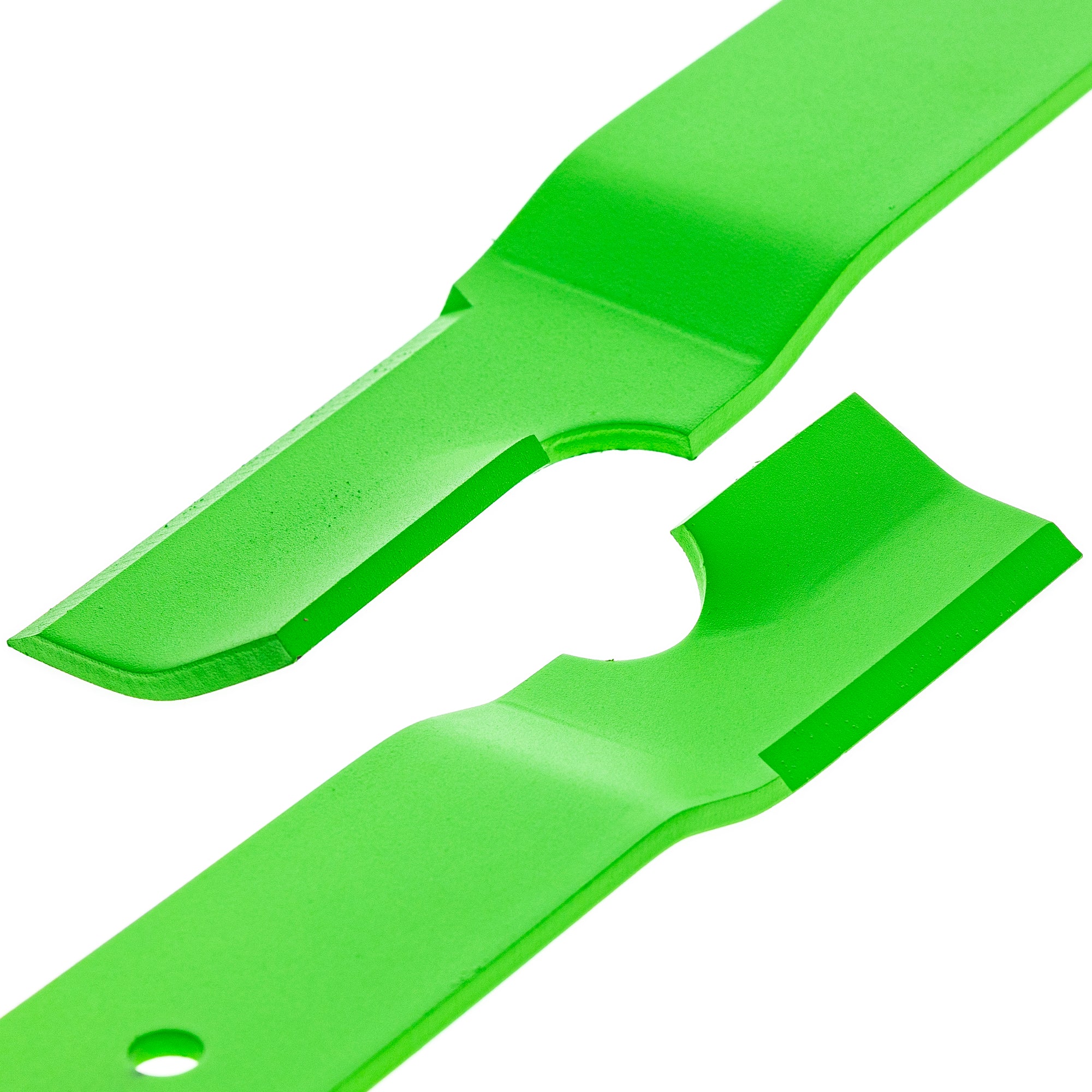

(QTY 3) 8TEN 810-CBL2712D LawnRAZOR High Lift Blade

Substitute For OEM Part Numbers(s): 320245

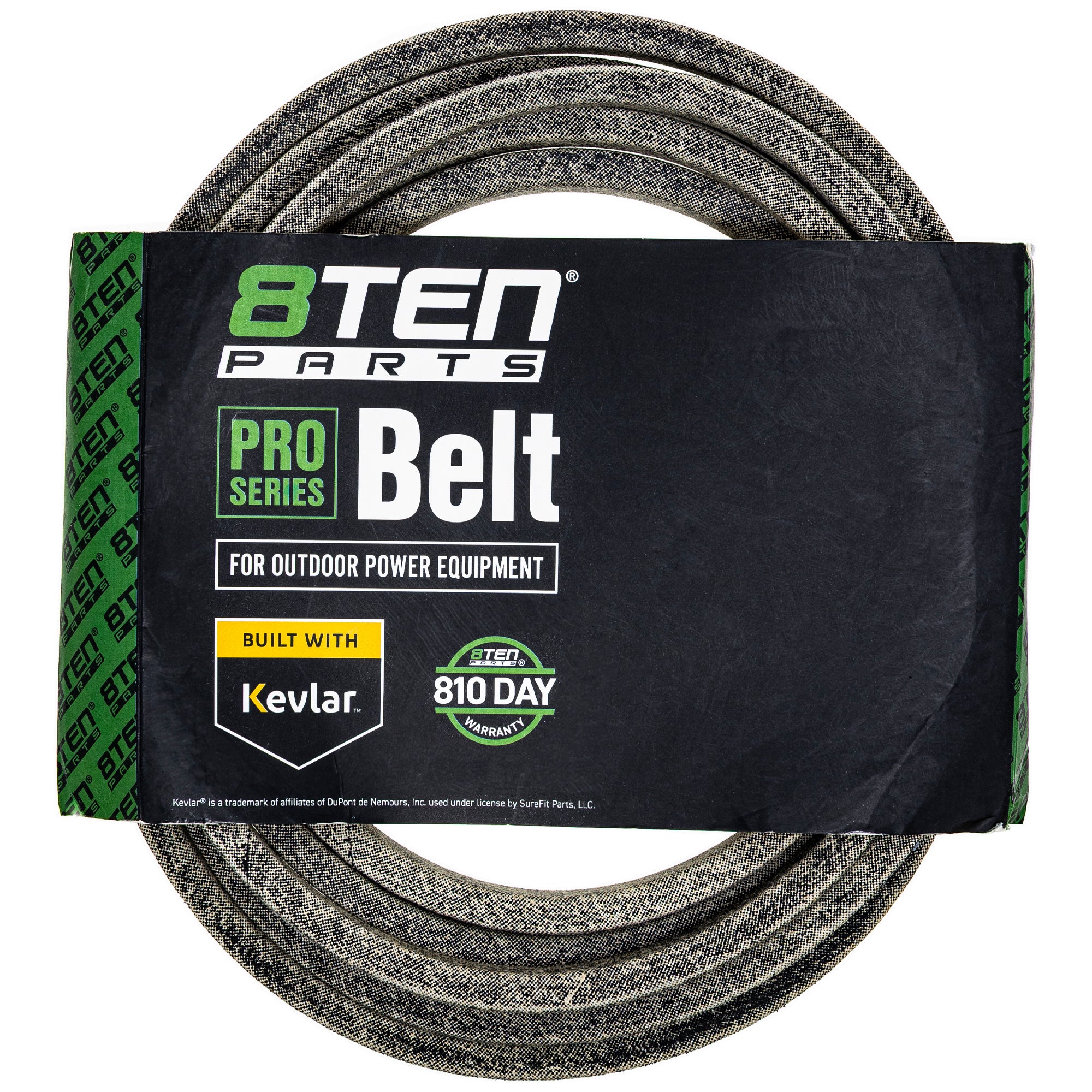

(QTY 2) 8TEN 810-CBL2820T Belt with Kevlar®

Substitute For OEM Part Numbers(s): 954-0642, 532197242, 754-0642, 593773401, 112-0933, 382085, 784322, 041-4022-00

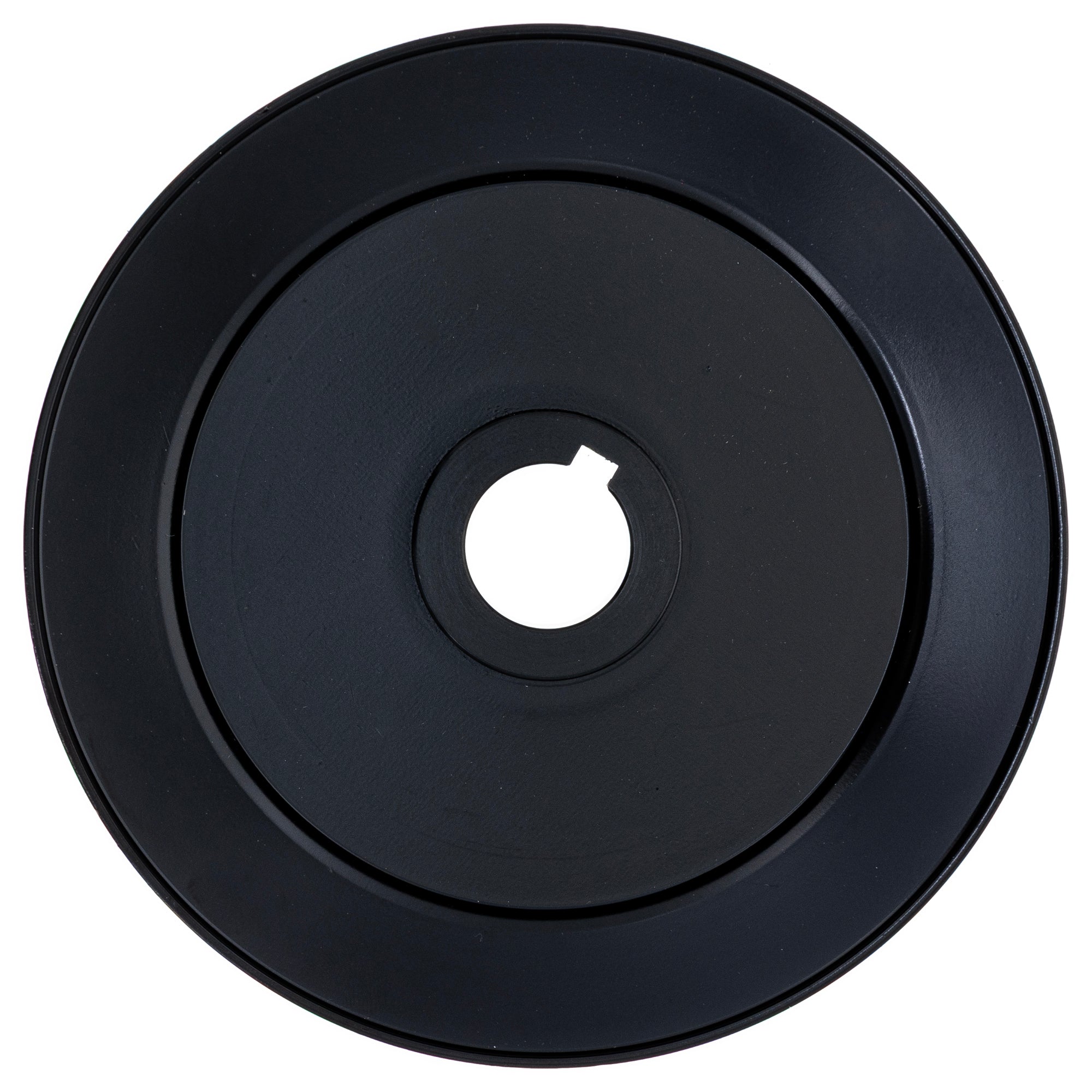

(QTY 3) 8TEN 810-CPL2306Y Pulley

Substitute For OEM Part Numbers(s): 415892

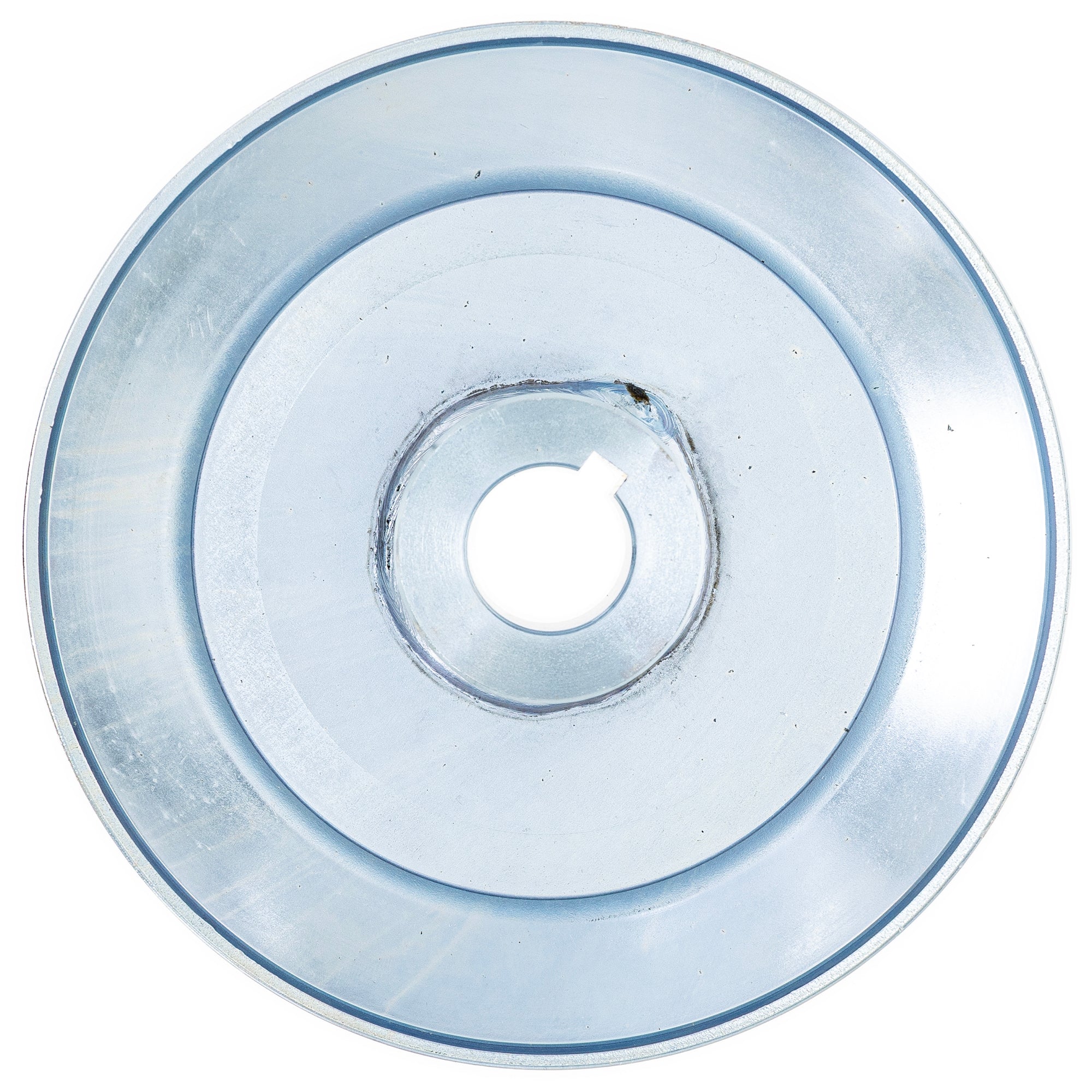

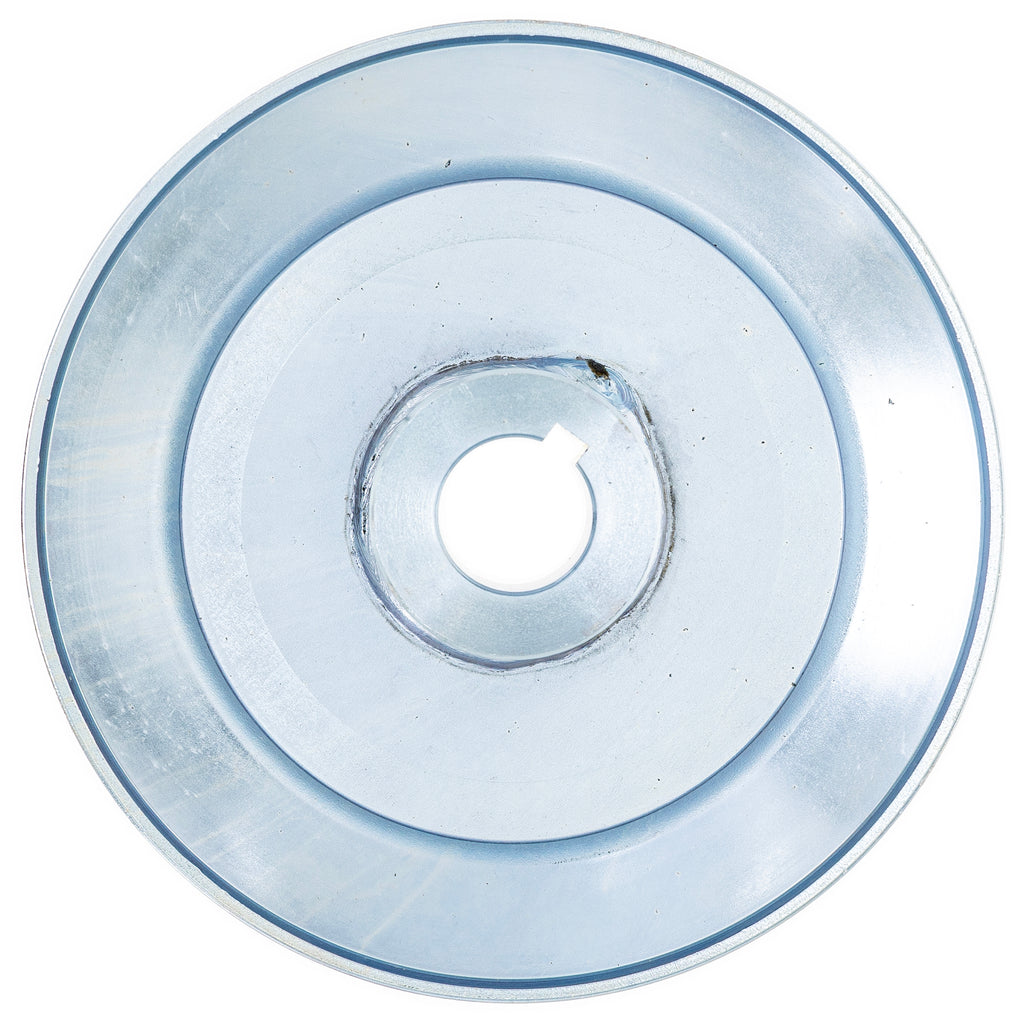

(QTY 1) 8TEN 810-CPL2300Y Pulley

Substitute For OEM Part Numbers(s): 415896

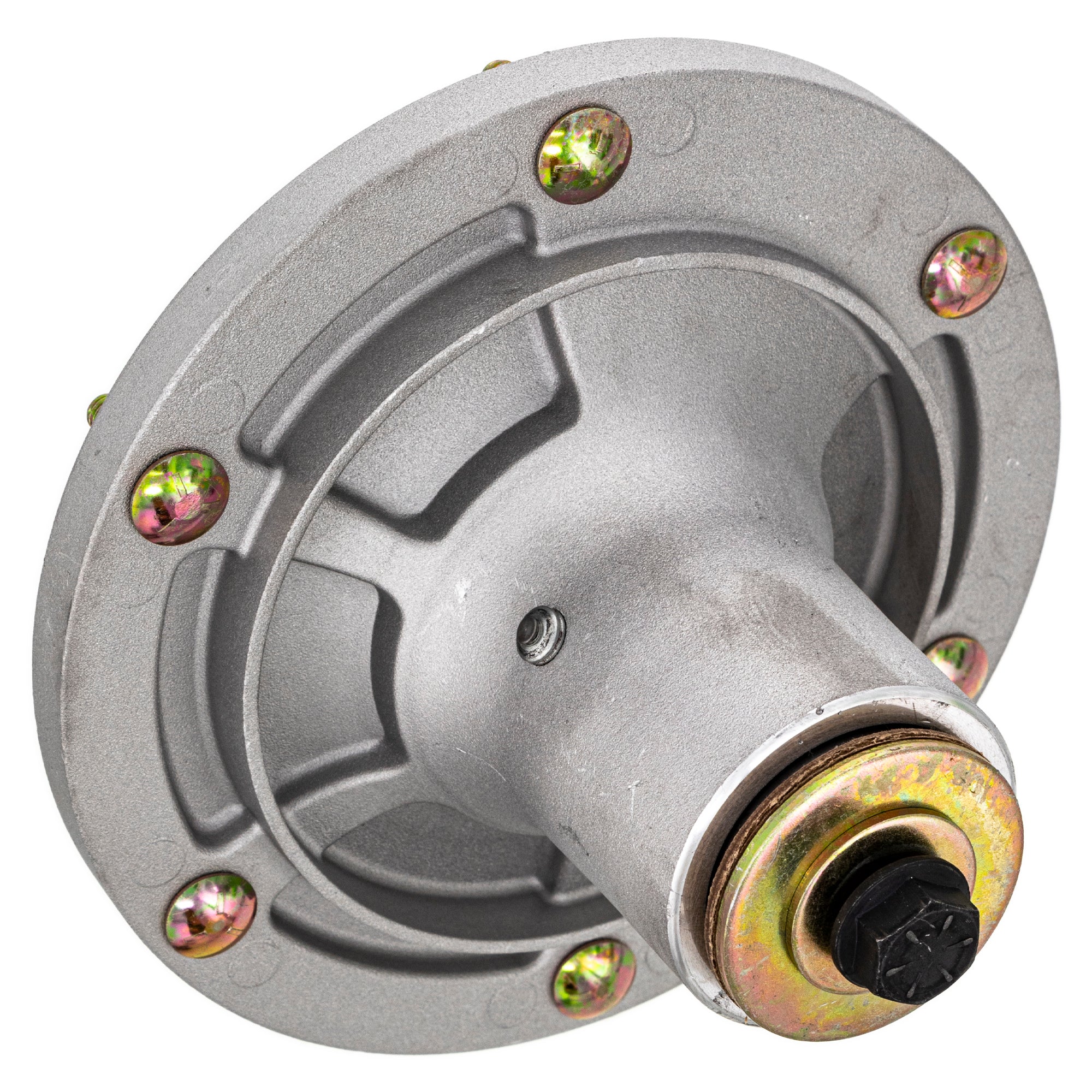

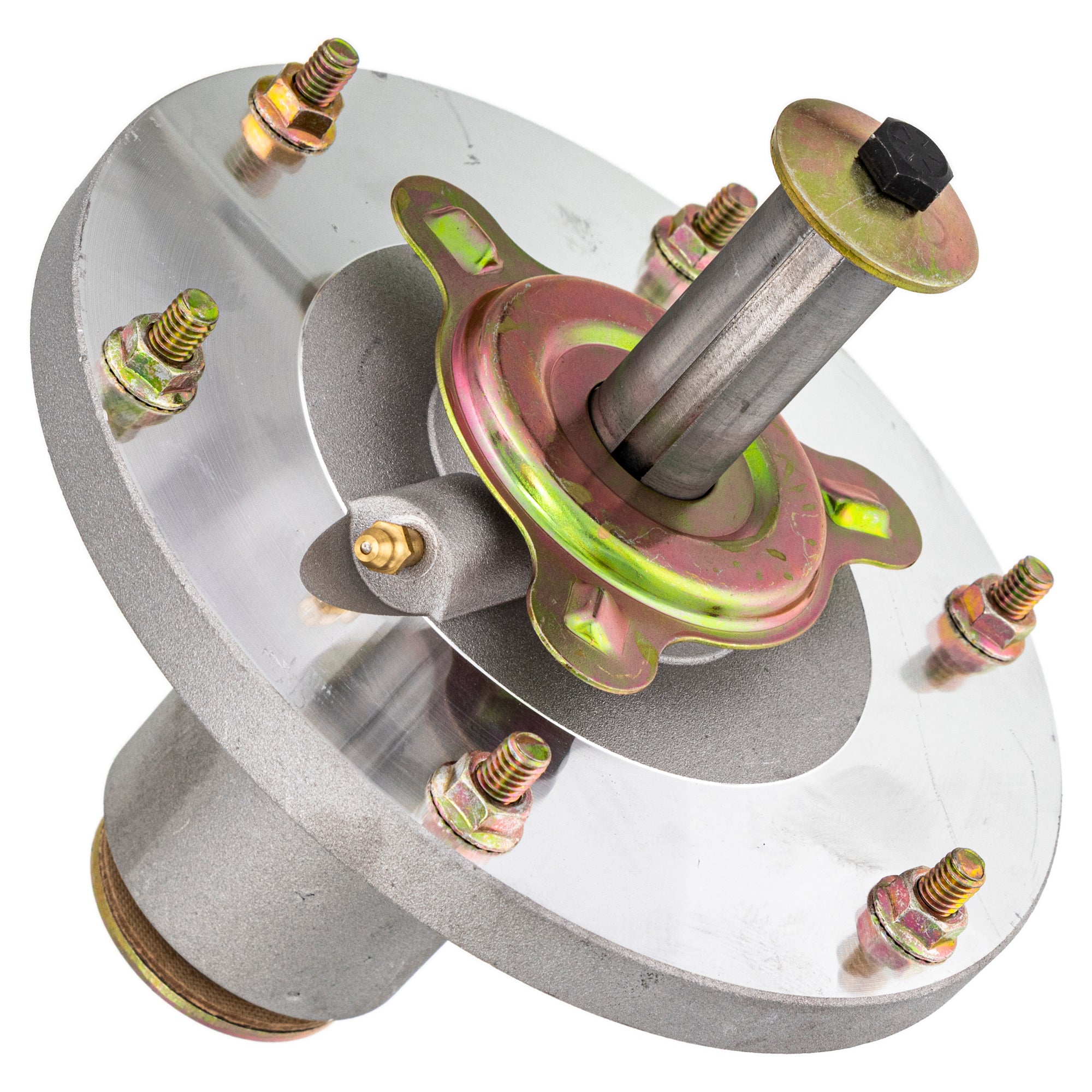

(QTY 1) 8TEN 810-CSP2206N Deck Spindle

Substitute For OEM Part Numbers(s): 623780

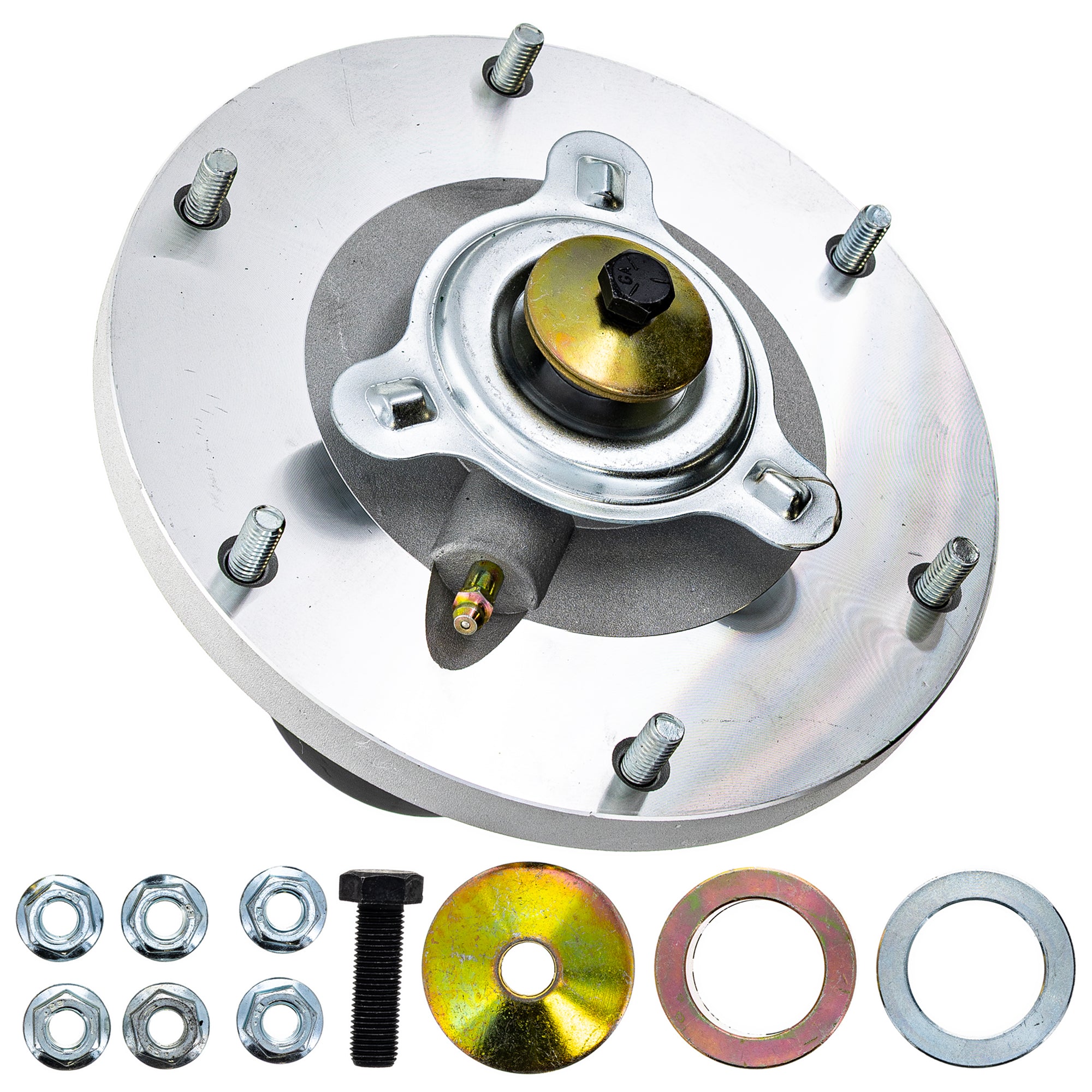

(QTY 2) 8TEN 810-CSP2569N Spindle Housing

Substitute For OEM Part Numbers(s): 623781, 623750, 623740, 623700

MK1015082 Fits the Following OEM Models:
