Blade Spindle Belt Kit for Grasshopper 125v 48-inch 320239 320234 623781

MK1015100 Spindle Blade Belt Kit Product Info:

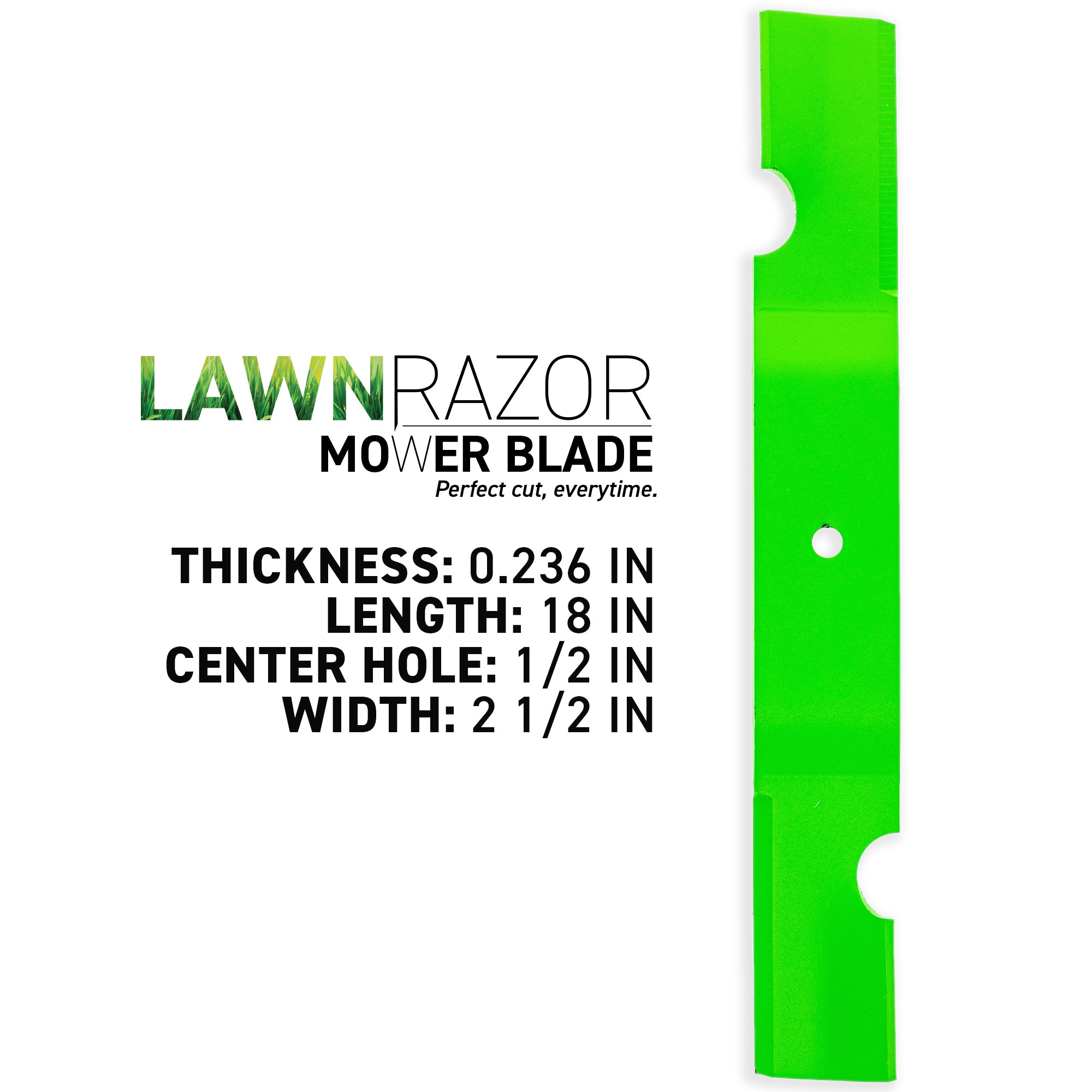

• Blade 1 Length (Inch): 18.03, Width (Inch): 2.49, Height (Lift) (Inch): 0.98, Blade 2 Blade Length (Inch): 15.04, Width (Inch): 2.5
• Spindle Height (IN): 7.36, Width(IN): 7.95, Length (IN): 7.95, Blade Mounting Pattern: 1/2-20 Thread
• Pulley 1 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 5.02, Pulley 2 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 4.26
• Belt Profile: B/5L, Type: Wrapped, Length (in): 145, Width (in): 0.625

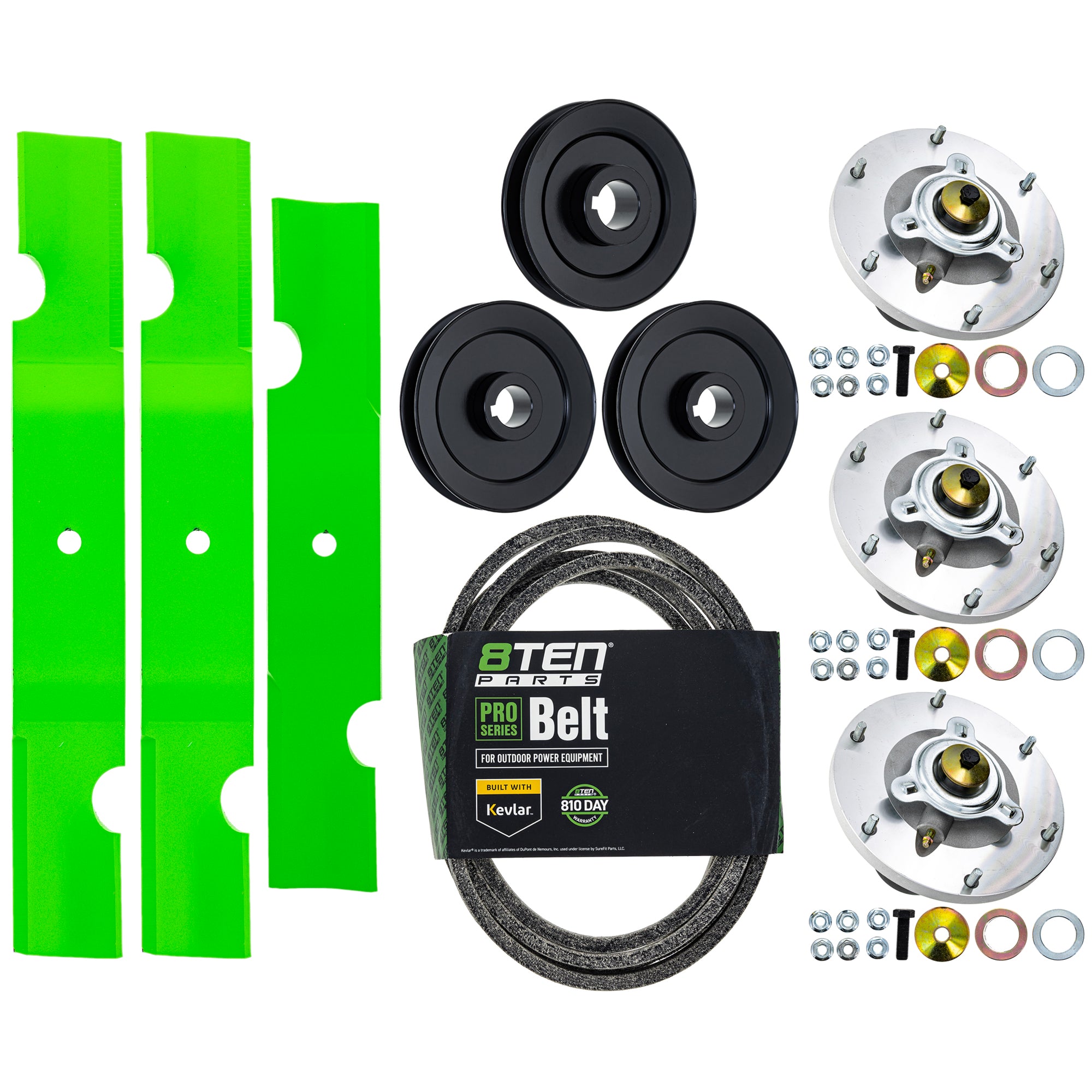

Included in This Kit:

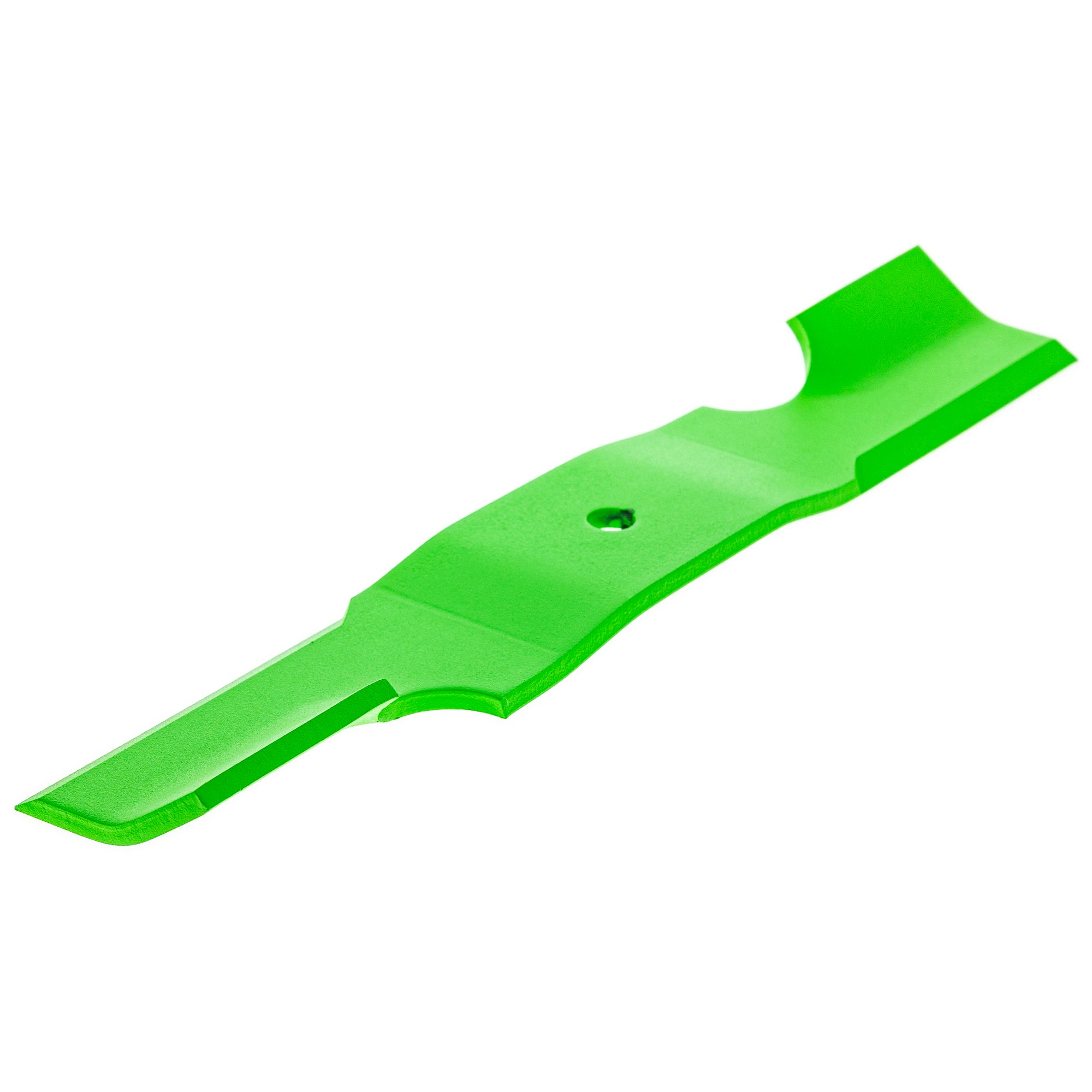

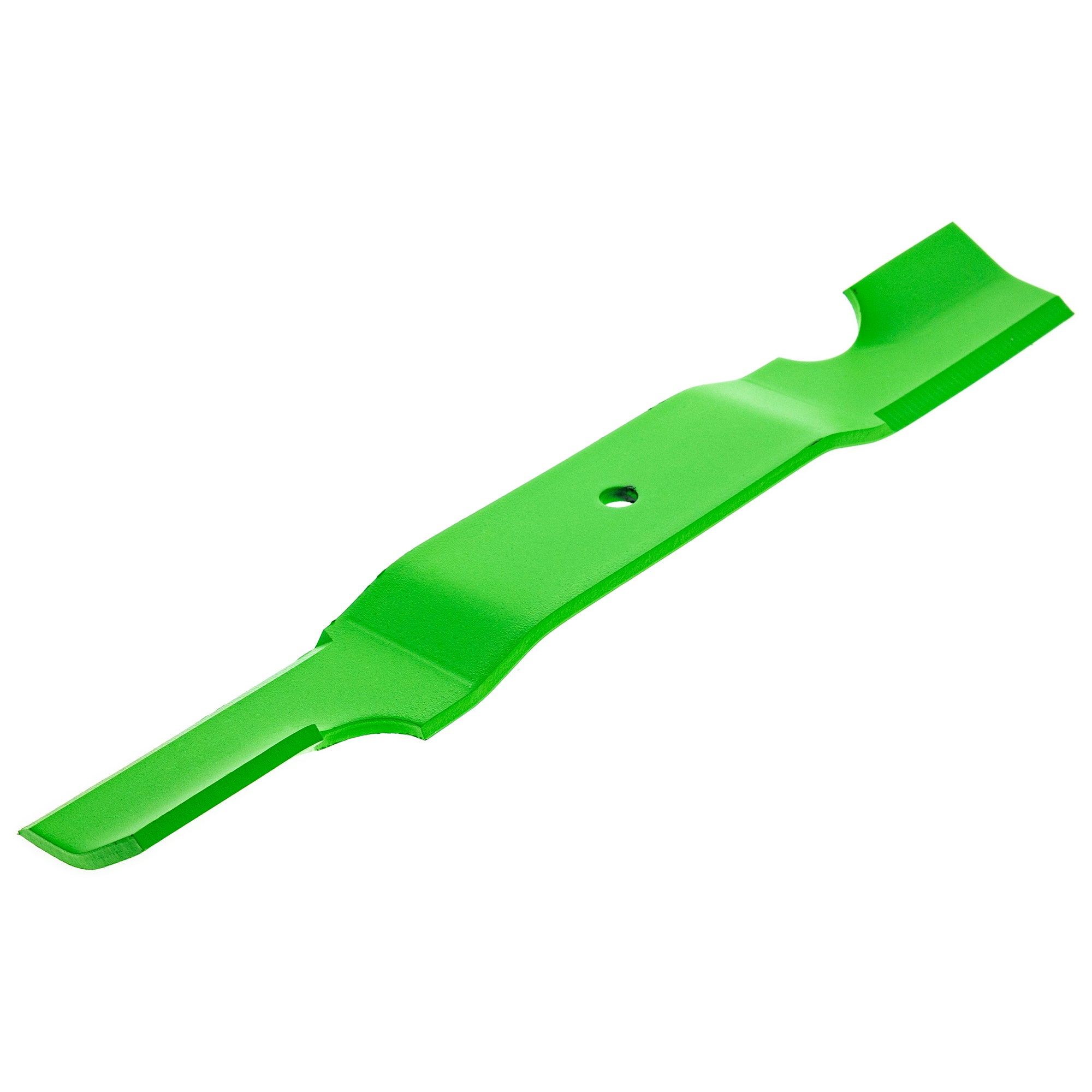

(QTY 2) 8TEN 810-CBL2700D LawnRAZOR High Lift Blade

Substitute For OEM Part Numbers(s): 320239

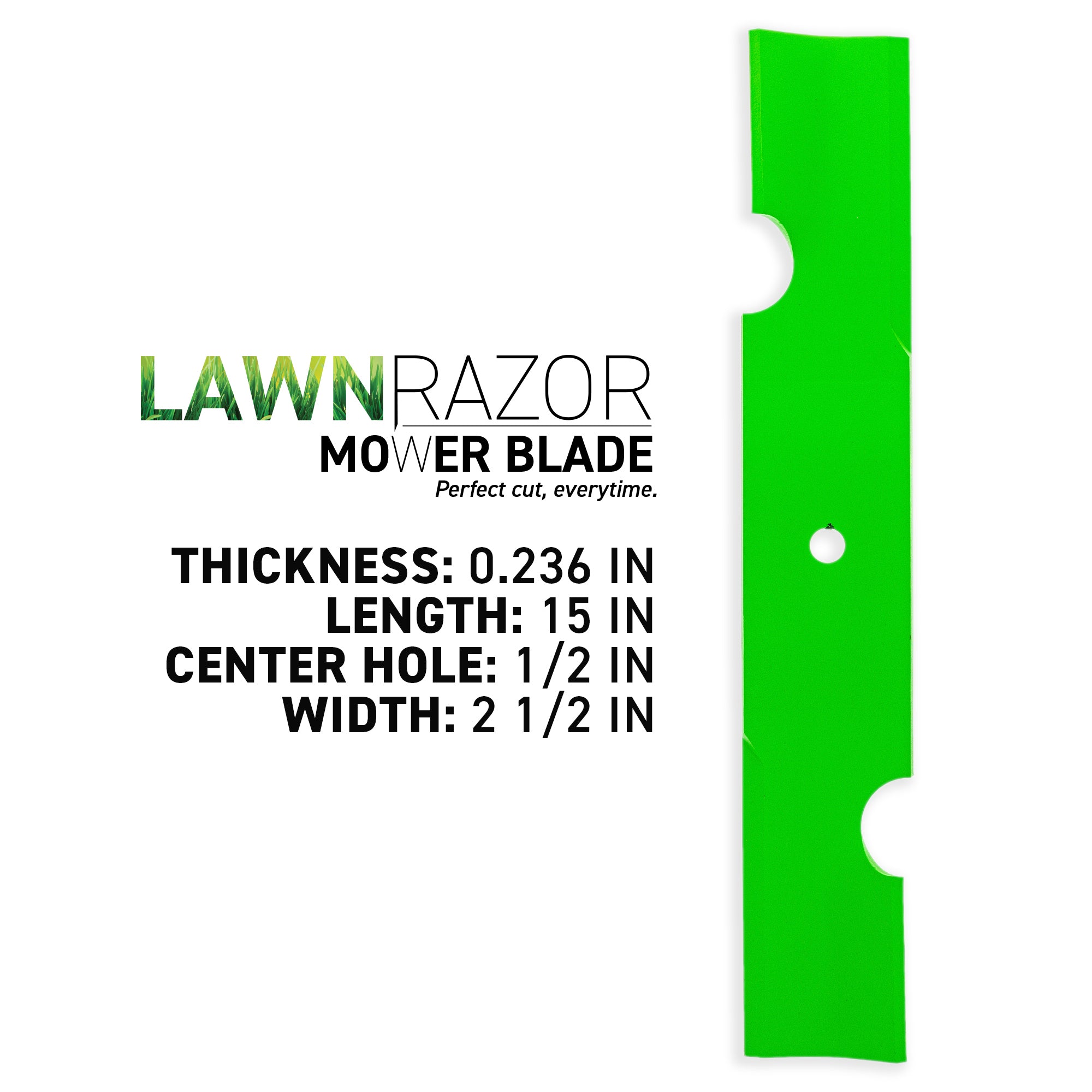

(QTY 1) 8TEN 810-CBL2897D LawnRAZOR High Lift Blade

Substitute For OEM Part Numbers(s):

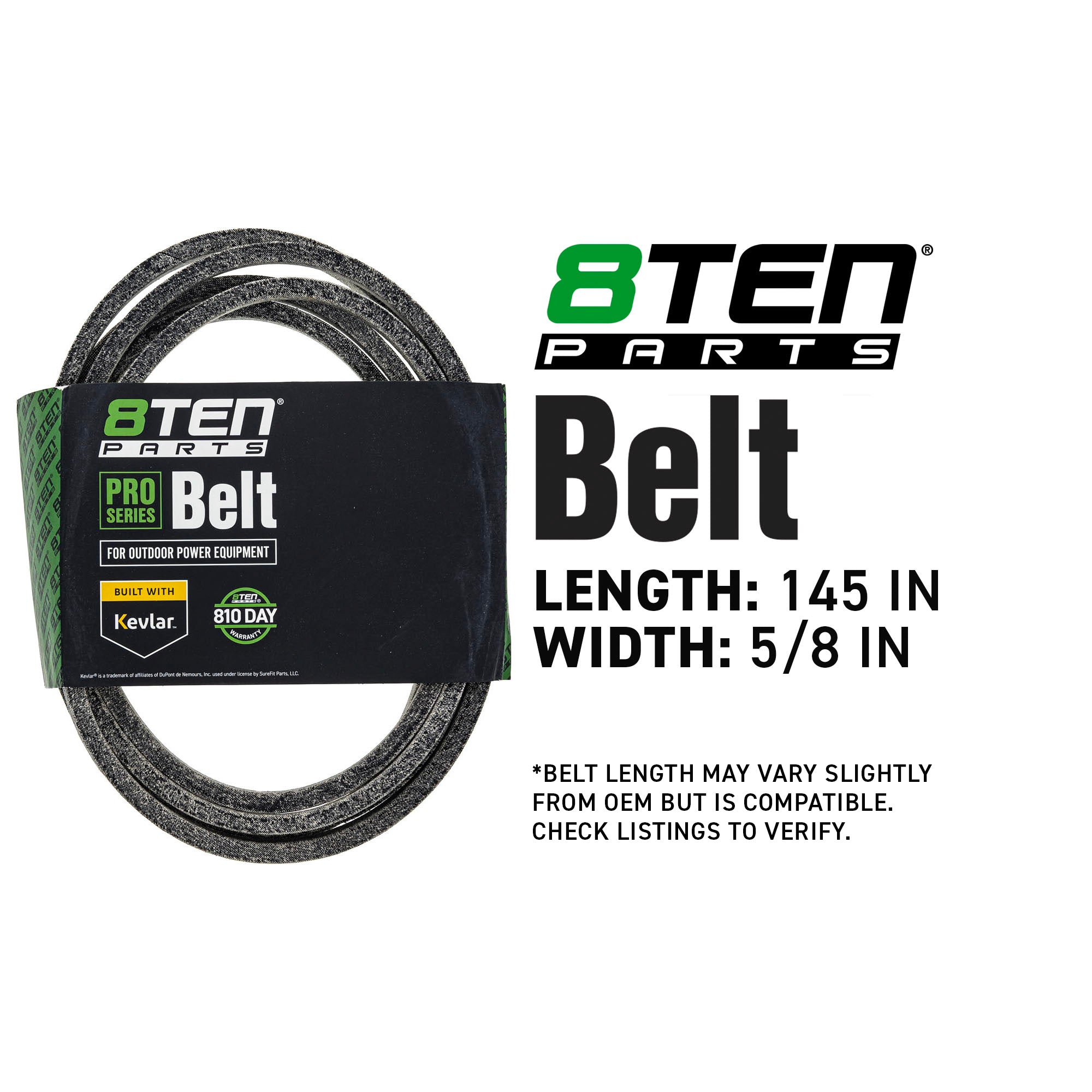

(QTY 1) 8TEN 810-CBL2844T Belt with Kevlar�

Substitute For OEM Part Numbers(s): 539110832, 510201101, M48444, M136137, 5100814, 110832, D-3797, 917539110832, 84009015, 816-676C, 604817, 539118156, 539-110832, 4147095, 382108, 041-1420-00

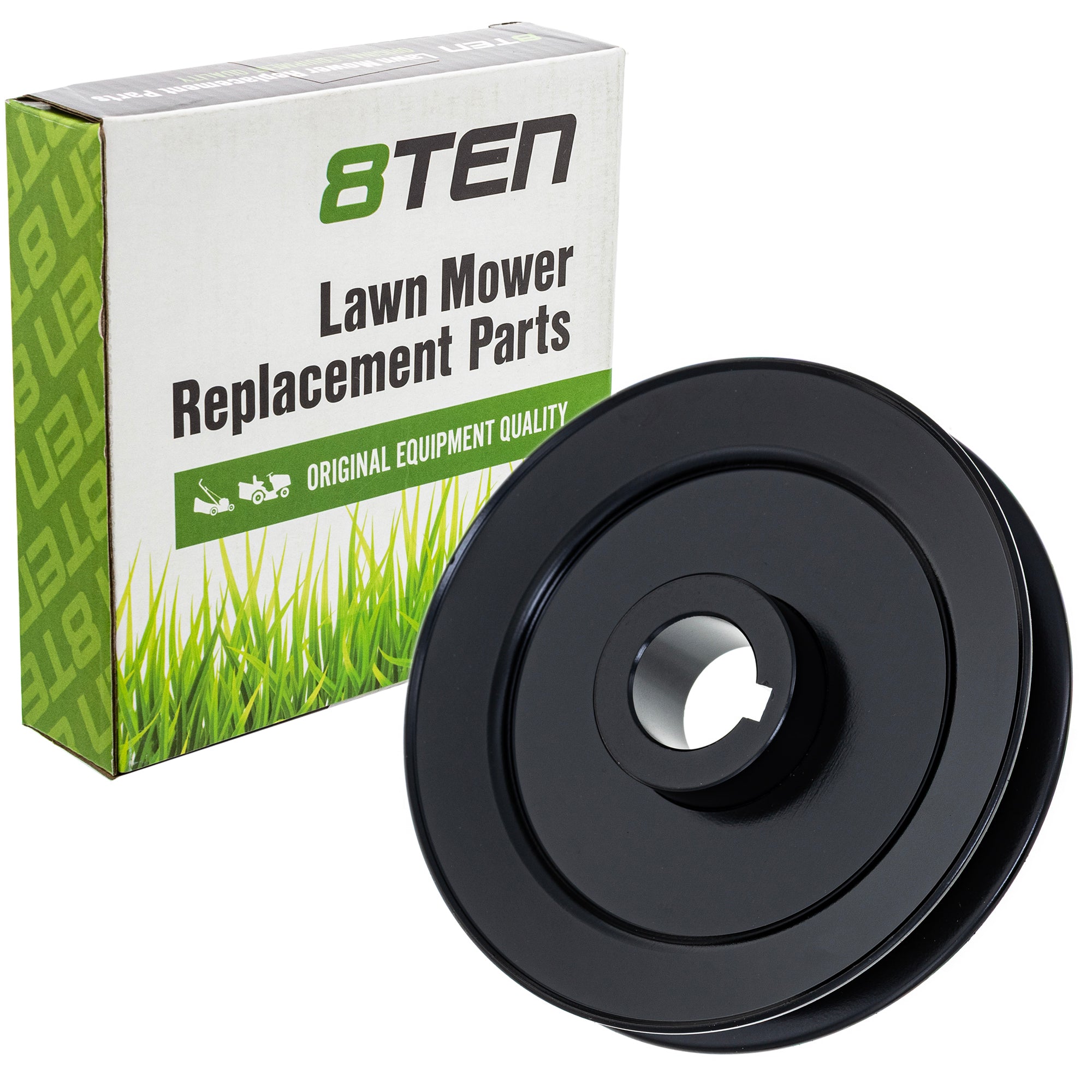

(QTY 2) 8TEN 810-CPL2307Y Pulley

Substitute For OEM Part Numbers(s): 415902

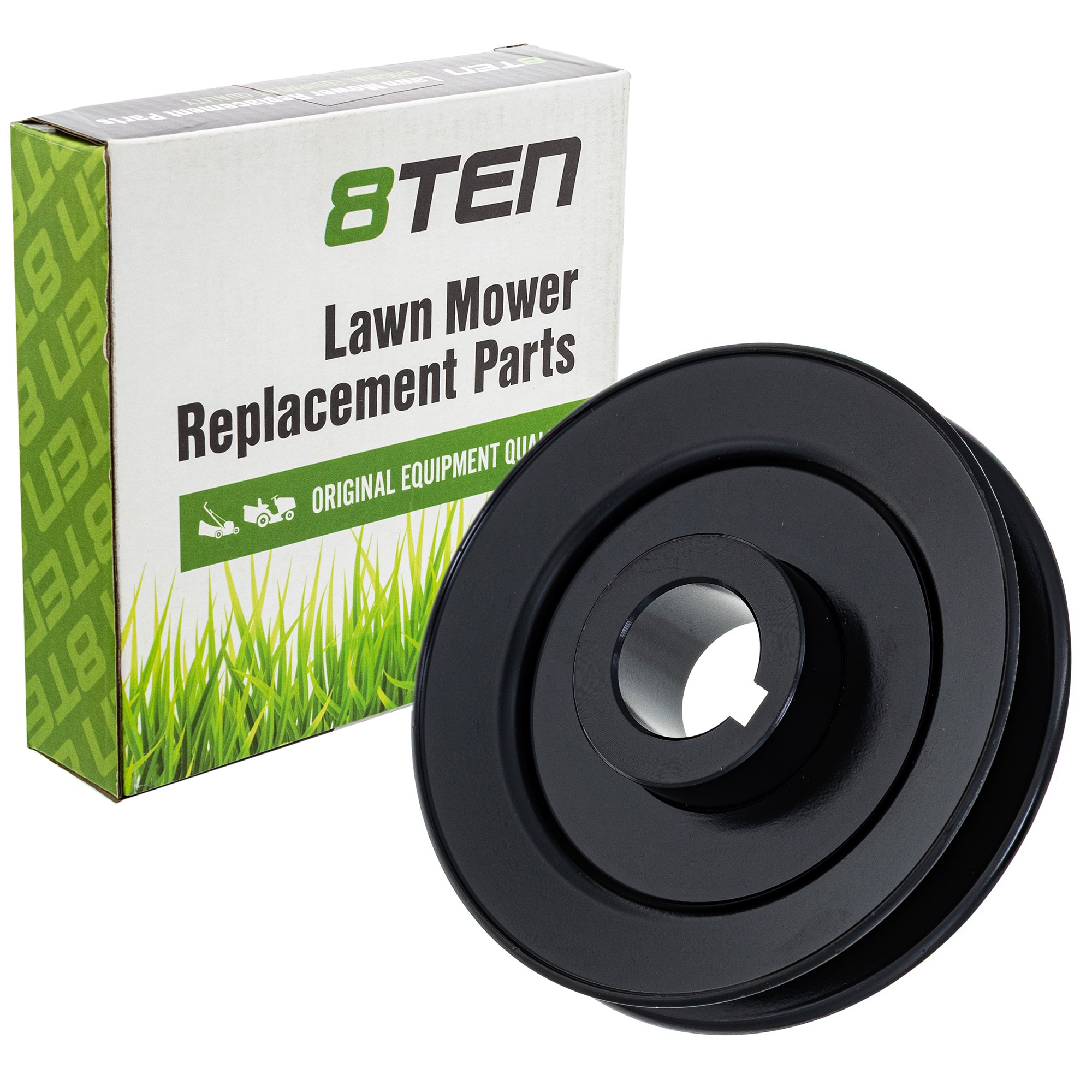

(QTY 1) 8TEN 810-CPL2316Y Pulley

Substitute For OEM Part Numbers(s): 415870

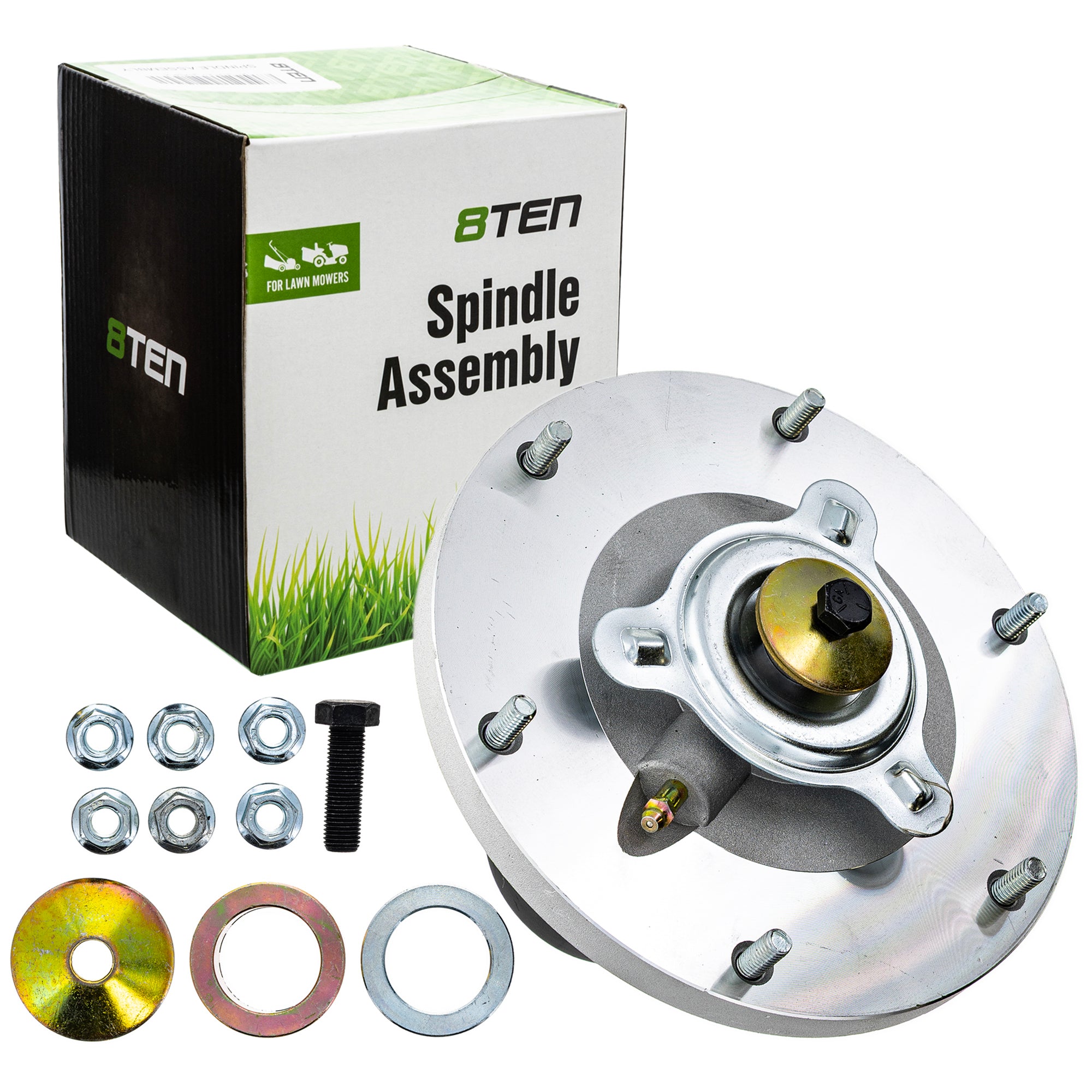

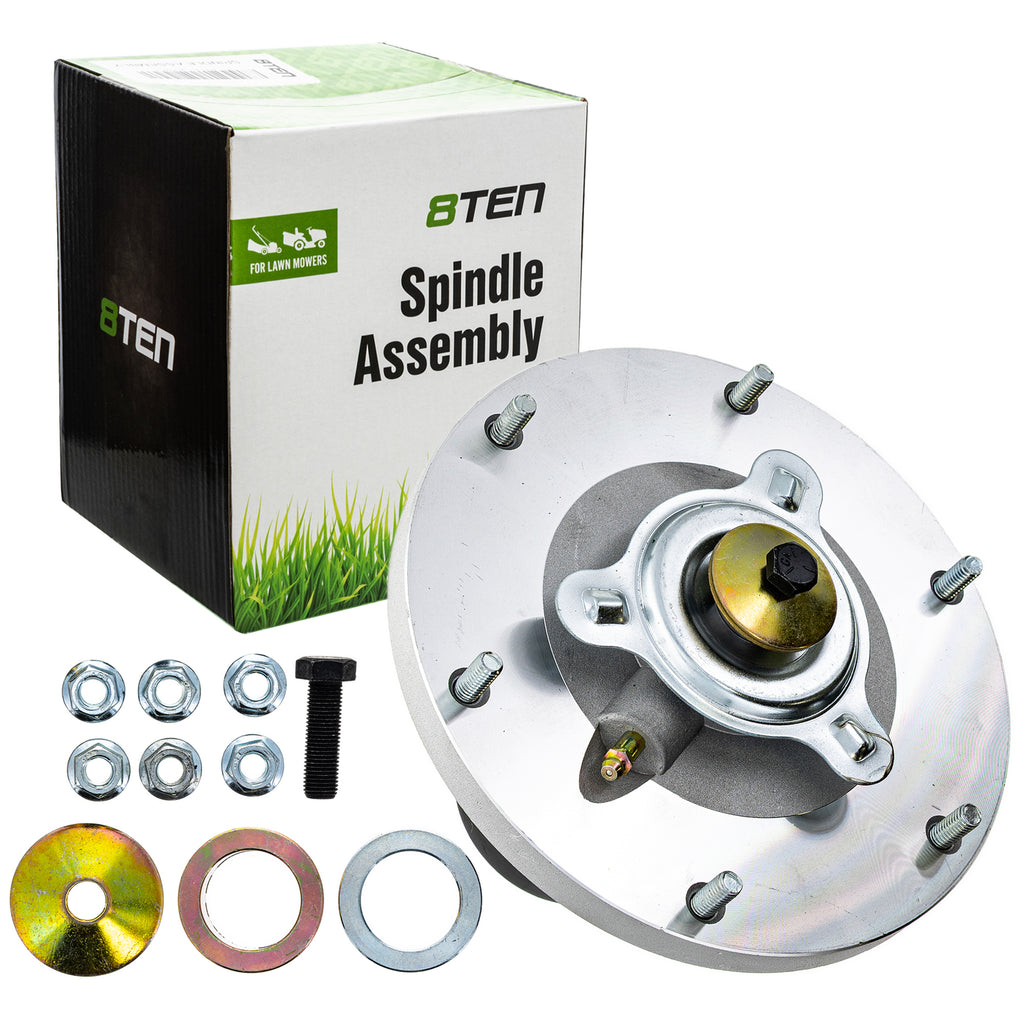

(QTY 3) 8TEN 810-CSP2569N Spindle Housing

Substitute For OEM Part Numbers(s): 623781, 623750, 623740, 623700
