Spindle Blade Belt Kit For Grasshopper MK1015238

MK1015238 Spindle Blade Belt Kit Product Info:

• Blade Length (Inch): 18.03, Width (Inch): 2.49, Height (Lift) (Inch): 0.70, Center Type: Circle, Center Hole (Inch): 0.5, Blade Type: Medium Lift
• Spindle Height (IN): 9.02, Width(IN): 7.95, Length (IN): 7.95, Blade Mounting Pattern: 1/2-20 Thread
• Pulley 1 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 4.6; Height (IN): 0.94; Thickness (IN): 0.94
• Pulley 2 Inner (shaft) Diameter (IN): 0.98, Outer Diameter (IN): 4.6, Height (IN): 1.51; Thickness (IN): 1.51

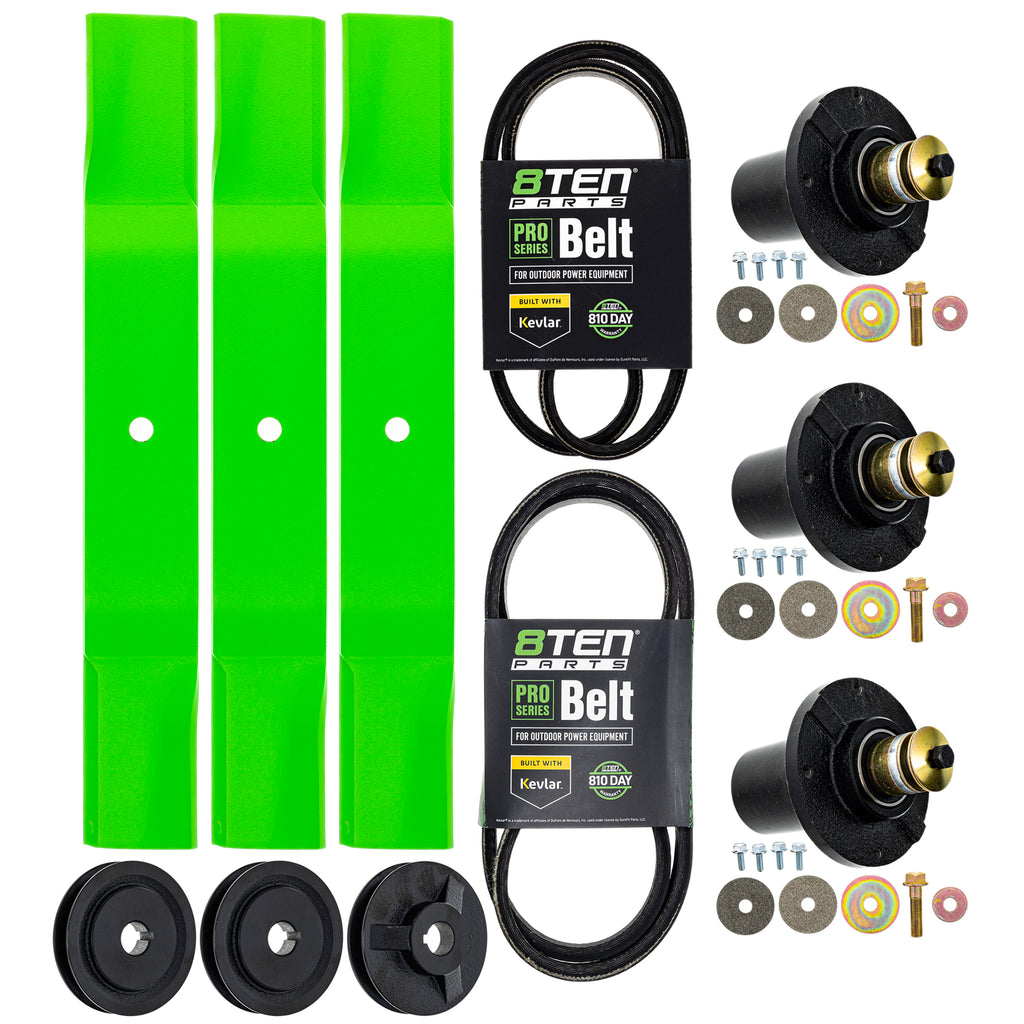

Included in This Kit:

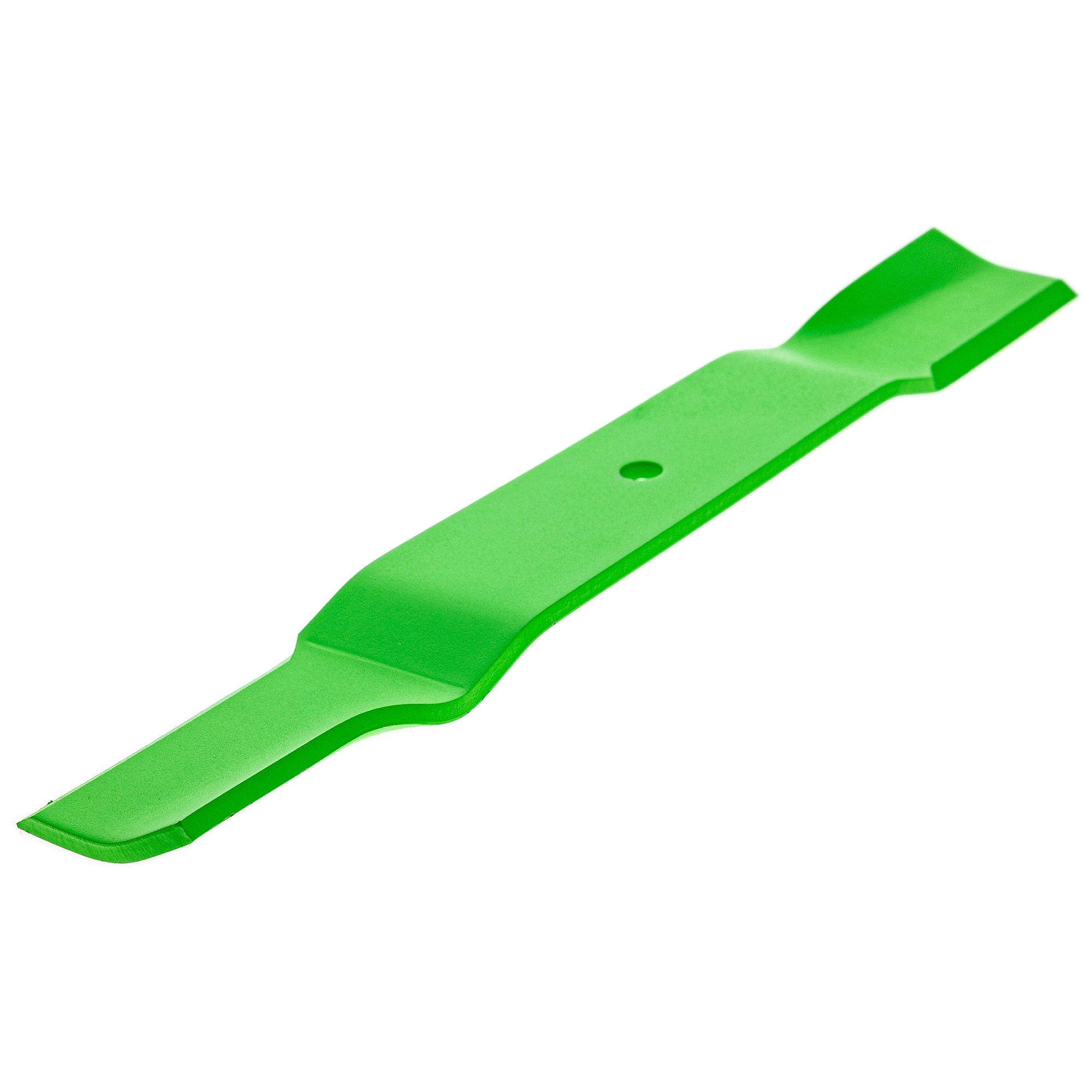

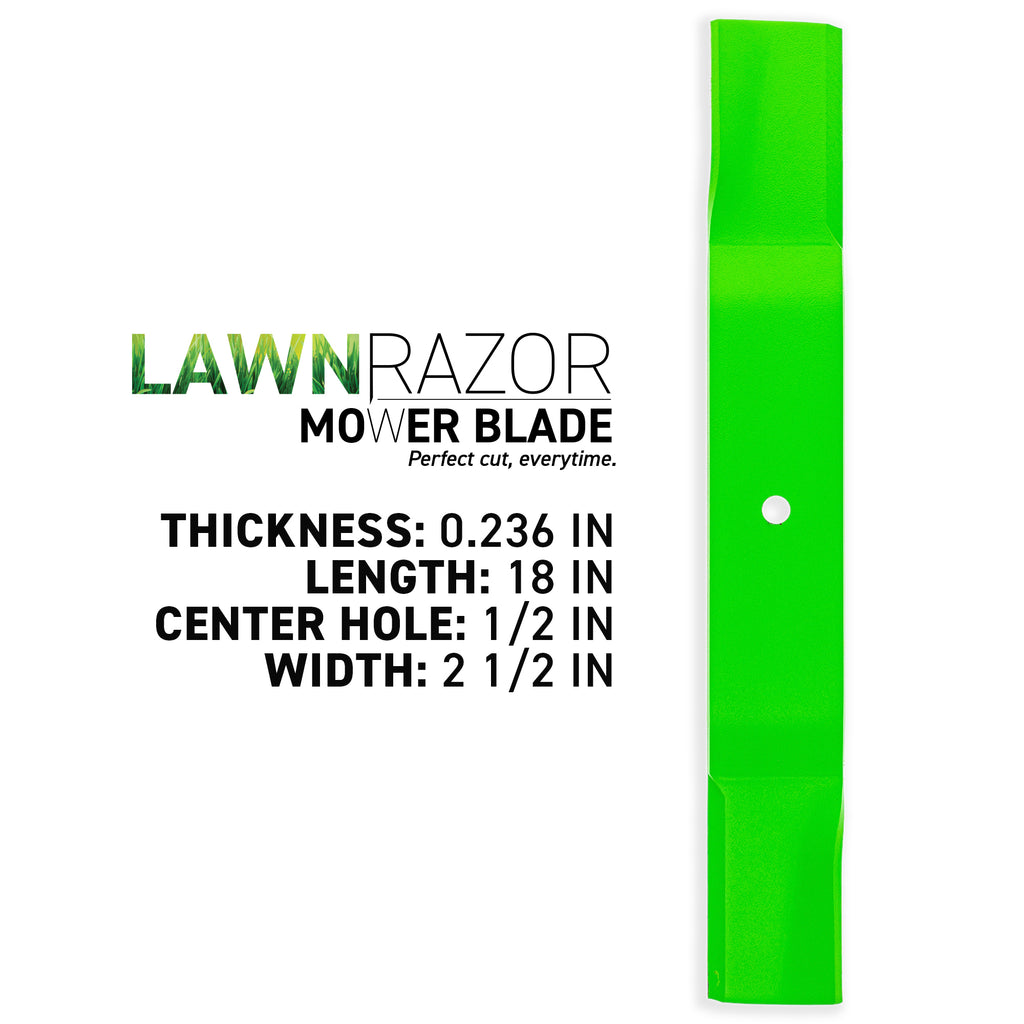

(QTY 3) 8TEN 810-CBL2709D LawnRAZOR Medium Lift Blade

Substitute For OEM Part Numbers(s): 320236

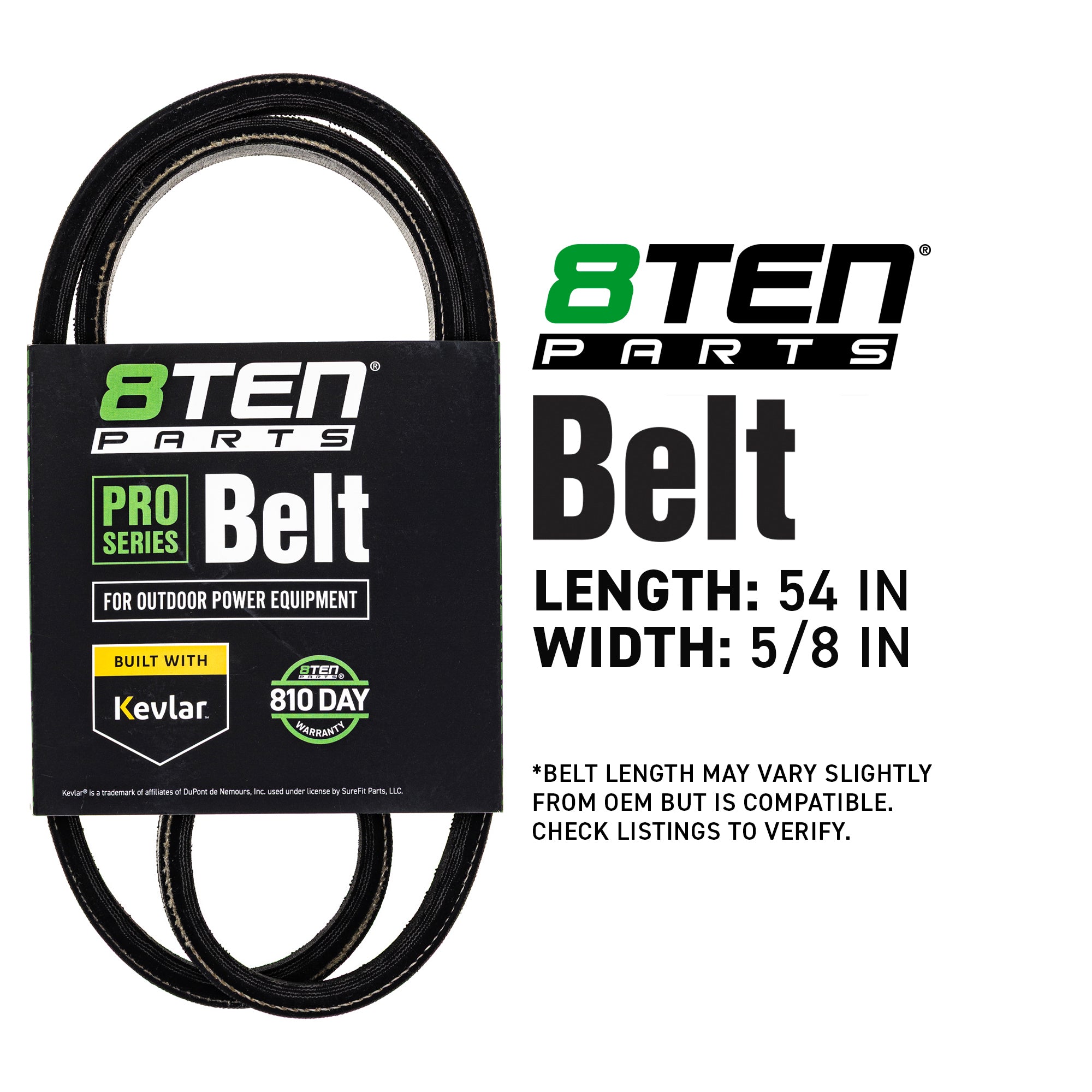

(QTY 1) 8TEN 810-CBL3232T Belt with Kevlar®

Substitute For OEM Part Numbers(s):

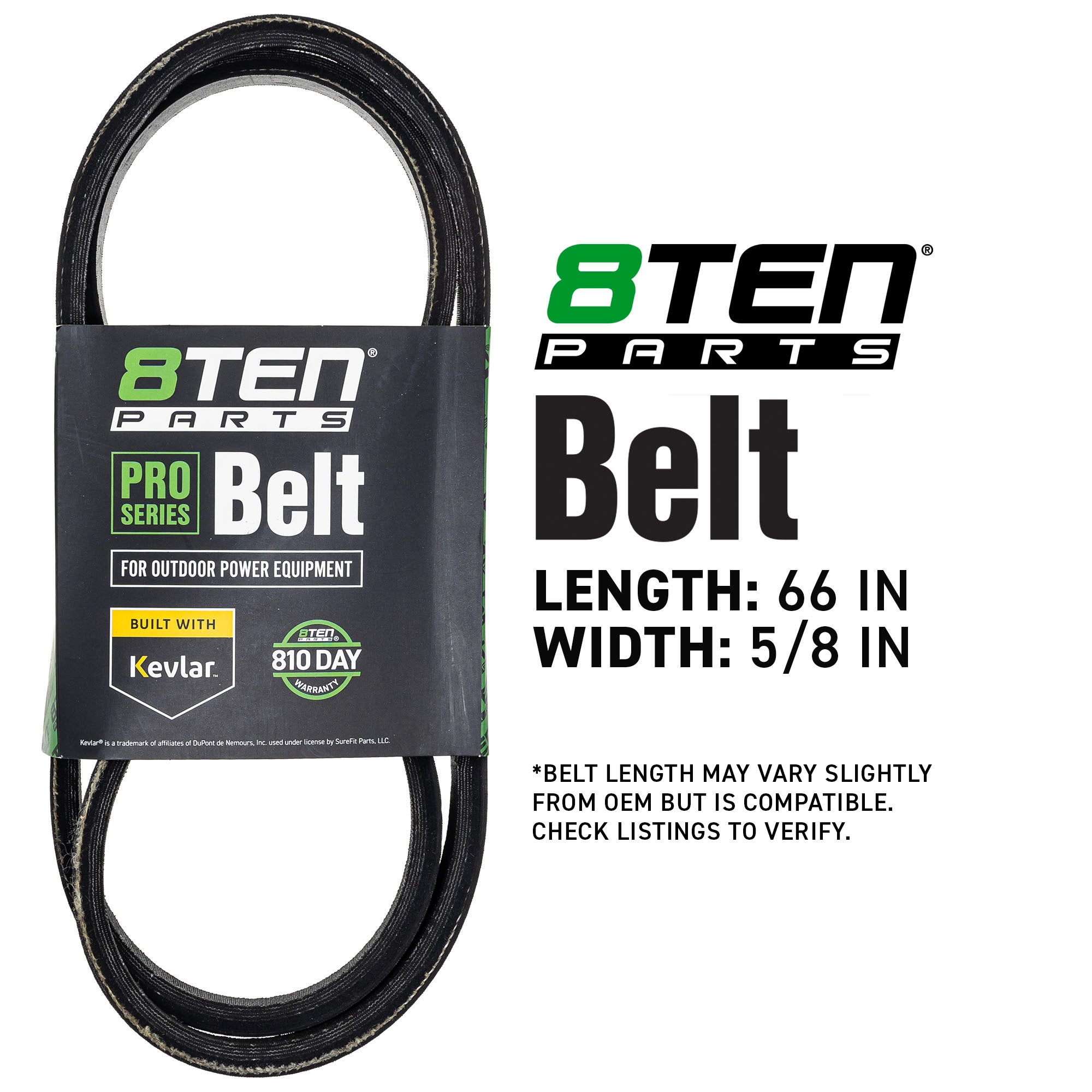

(QTY 1) 8TEN 810-CBL3271T Belt

Substitute For OEM Part Numbers(s): 382810

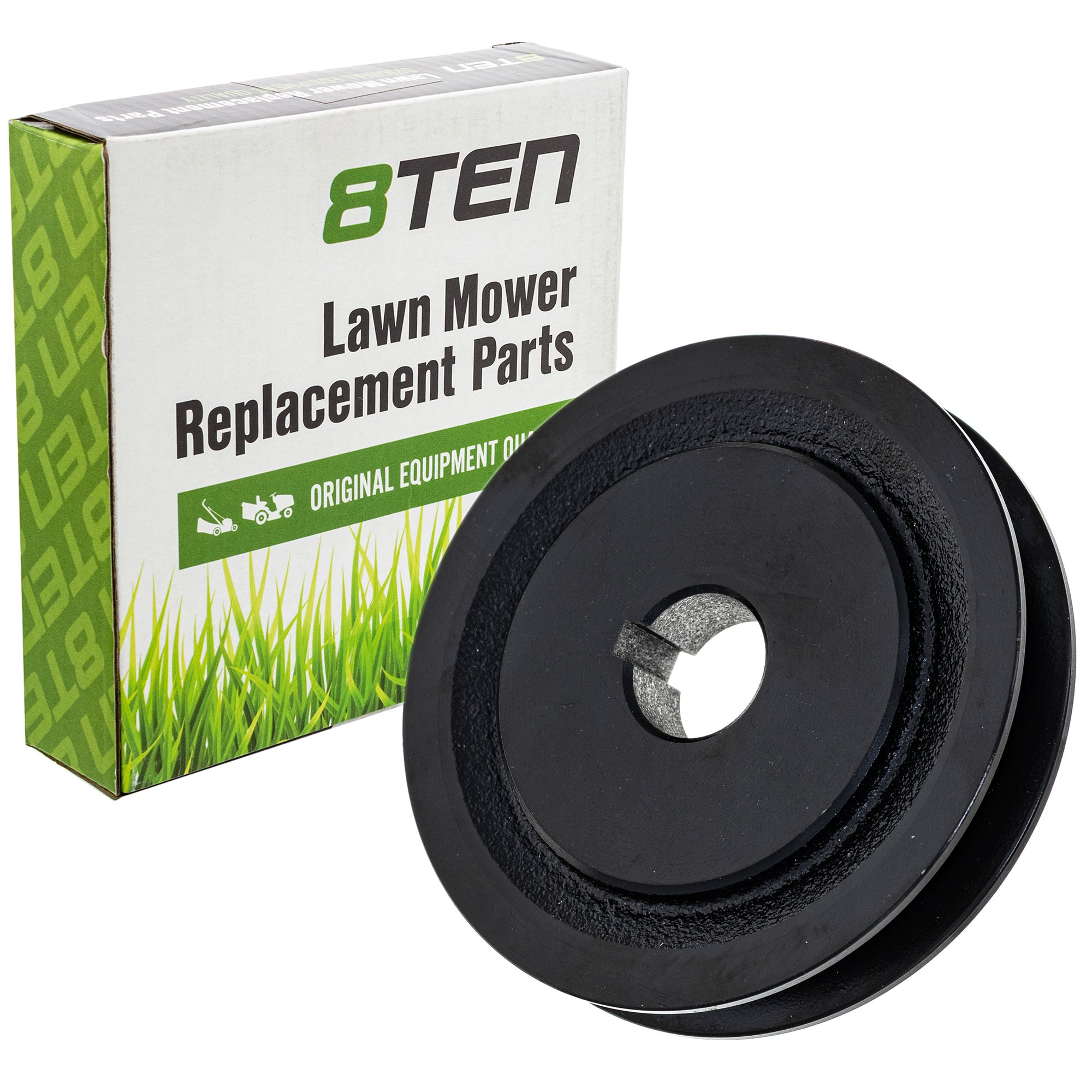

(QTY 2) 8TEN 810-CPL2314Y Pulley

Substitute For OEM Part Numbers(s): 414696

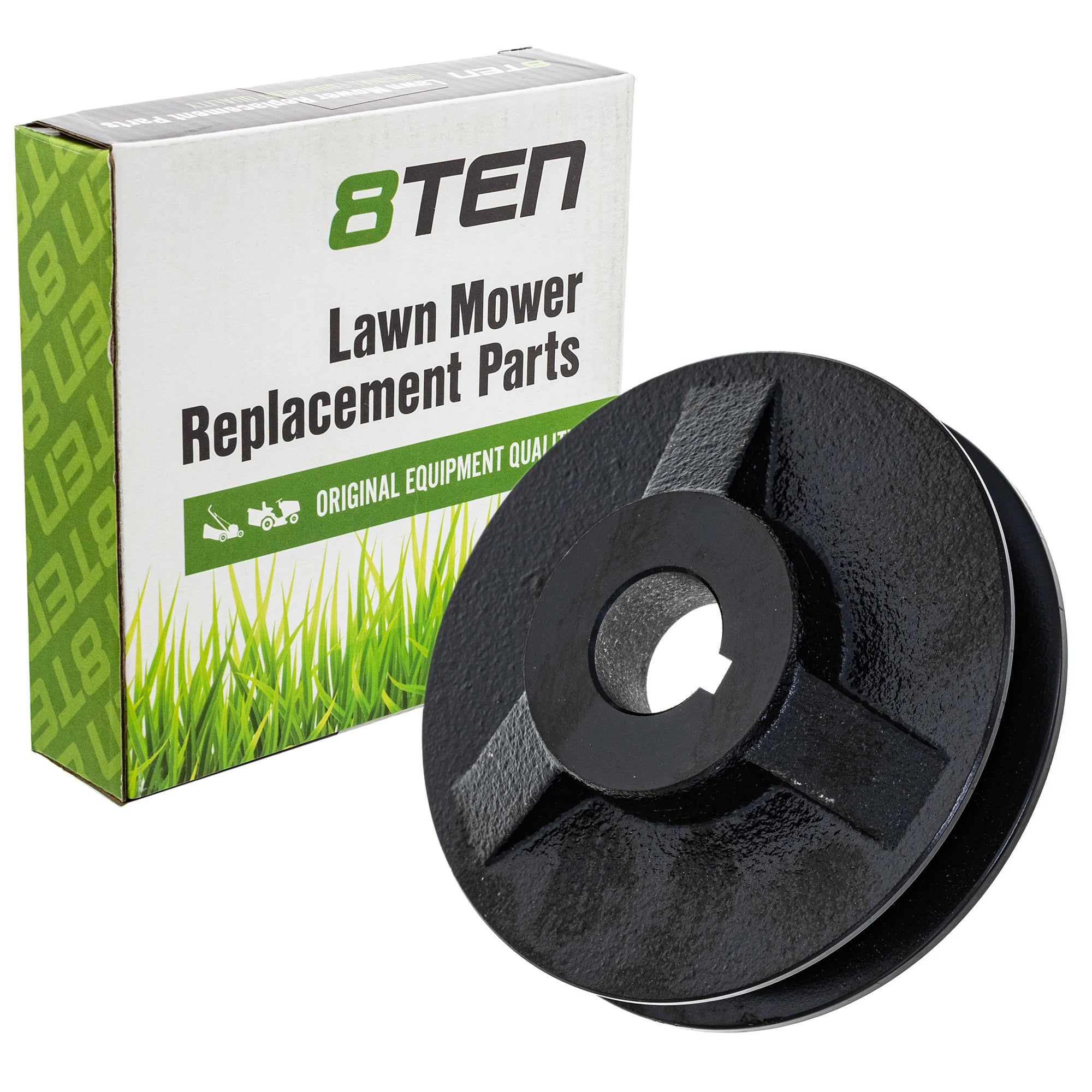

(QTY 1) 8TEN 810-CPL2318Y Pulley

Substitute For OEM Part Numbers(s): 415867

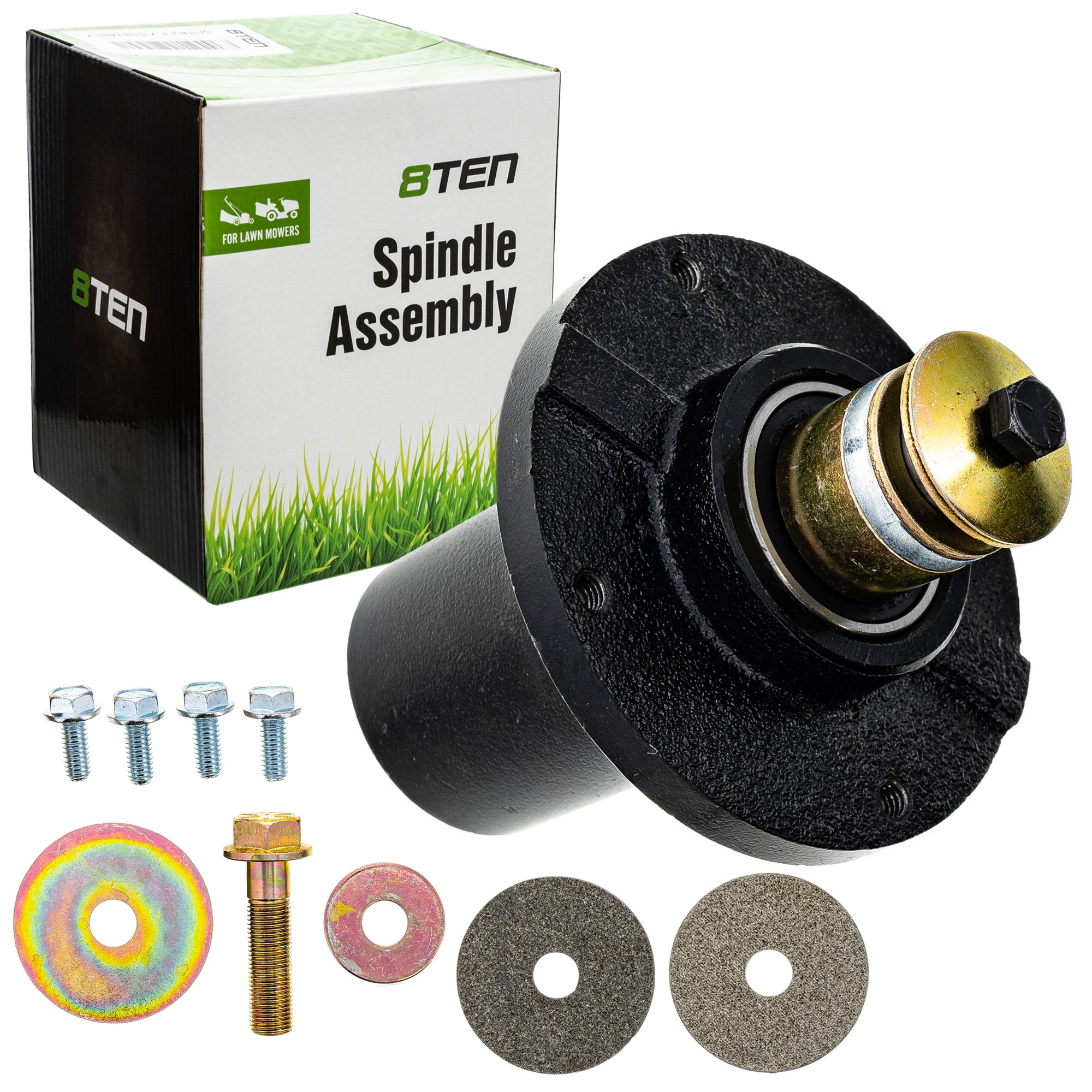

(QTY 3) 8TEN 810-CSP2561N Spindle Housing

Substitute For OEM Part Numbers(s): 623784

MK1015238 Fits the Following OEM Models:
